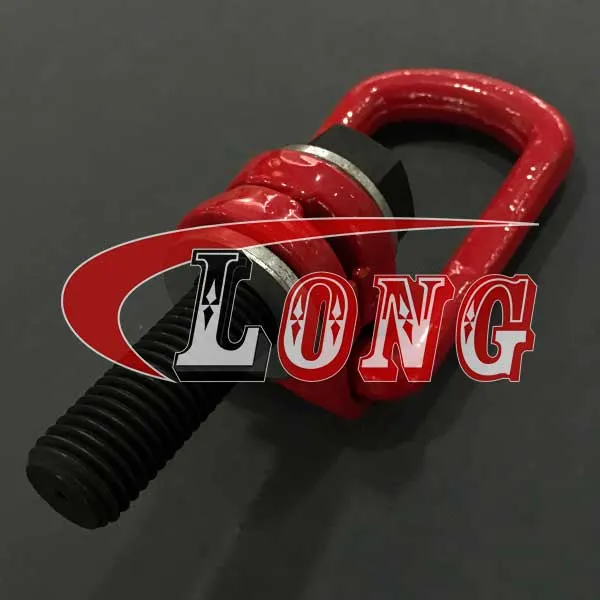

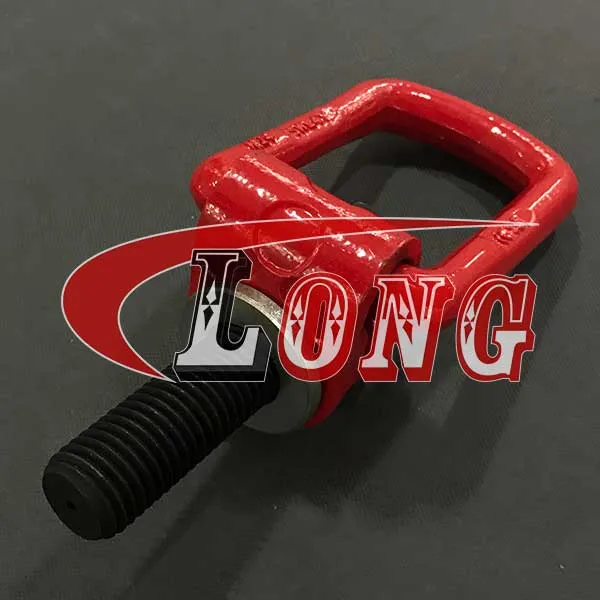

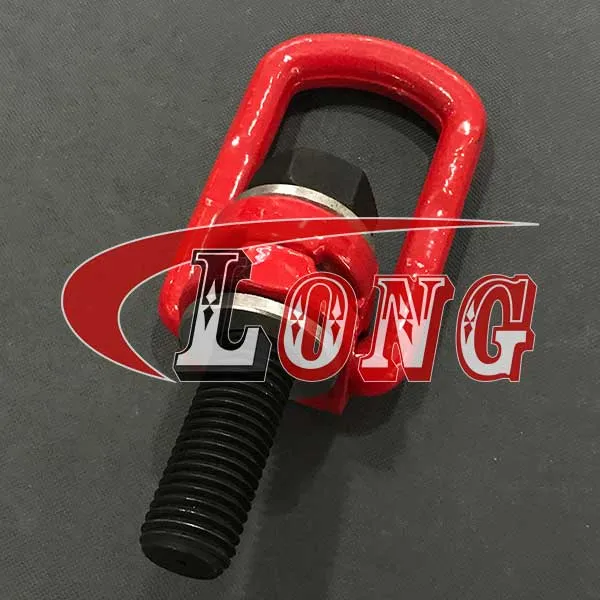

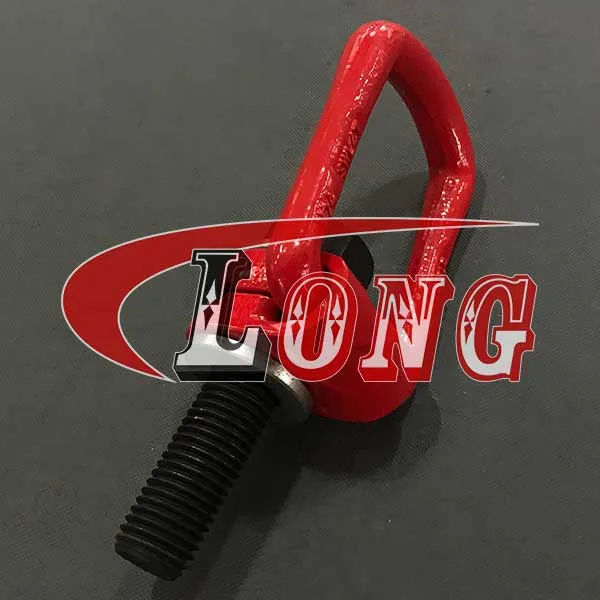

G80 Pivoting Lifting Screw

G80 Pivoting Lifting Screw, forged from superoir alloy steel with high intensity and high toughness, and then heat treated.
G80 Pivoting Lifting Screw, matched with sling and G80 chains which can meet the standard EN818-2.
Surface treatment: powder coated.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
G80 Hooks
G80 Lifting Points
G80 Links, Rings
G80 Swivels
G80 Other Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of G80 Pivoting Lifting Screw

Material

Superior Alloy steel

Processing

Forged / Quenched and Tempered

Finish

Powder Coated

Size

M8, M10, M12, M14, M16, M18*26, M20, M20*55, M20*60, M24*35, M24*40, M24*60

M27, M30, M30*70, M36*54, M36*70, M36*62, M42*72, M42*63, M48*74

Safety Factor

4:1

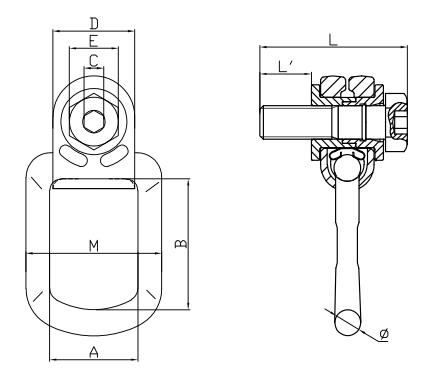

Specifications of G80 Pivoting Lifting Screw

Specifications of G80 Pivoting Lifting Screw


Part No.

Weight (kg)

Working load limit(t)

Breaking load(t)

A±1

B±1

C

D

E

M±1.5

L±1.5

L’ ±1.5

⌀±0.5

8-LG-PLS-M8

0.36

0.3

1.2

35

52.5

6

30

13

45

46

10.4

14

8-LG-PLS-M10

0.38

0.63

2.52

35

52.5

6

30

17

45

52

15.4

14

8-LG-PLS-M12

0.71

1

4

40

54

8

36

19

68

62

18

18

8-LG-PLS-M14

0.72

1.2

4.8

40

54

8

36

19

68

66

21

18

8-LG-PLS-M16

0.74

1.5

6

40

54

8

36

19

68

70

24

18

8-LG-PLS-M18*26

1.16

2

8

54

80

12

50

30

83

83

26

16

8-LG-PLS-M20

1.19

2.5

10

54

80

12

50

30

83

88

30

16

8-LG-PLS-M20*55

1.12

2.5

10

54

80

12

50

30

83

113

55

16

8-LG-PLS-M20*60

1.25

2.5

10

54

80

12

50

30

83

118

60

16

8-LG-PLS-M24*35

1.35

4

16

54

94

14

50

36

83

95

35

18

8-LG-PLS-M24*40

1.38

4

16

54

94

14

50

36

83

100

40

18

8-LG-PLS-M24*60

1.46

4

16

54

94

14

50

36

83

120

60

18

8-LG-PLS-M27

4.18

4

16

73

106

17

68

41

120

120

38

27

8-LG-PLS-M30

4.4

5

20

73

106

17

68

41

120

132

48

27

8-LG-PLS-M30*70

4.52

5

20

73

106

17

68

41

120

154

70

27

8-LG-PLS-M36*54

4.65

7

28

73

106

17

68

41

120

142

54

27

8-LG-PLS-M36*70

4.8

7

28

73

106

17

68

41

120

158

70

27

8-LG-PLS-M36*62

7.6

8

32

94

140.5

22

86

55

156

163

62

31

8-LG-PLS-M42*72

8.2

10

40

94

140.5

24

86

65

156

176

72

31

8-LG-PLS-M42*63

12.4

15

40

104

155

24

95

65

176

179

63

40

8-LG-PLS-M48*74

13.0

20

80

104

155

27

95

75

176

194

74

40


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related G80 Lifting Points

Forged D-Ring W/ Weld-On Clip Grade 80
Forged D-Ring W/ Weld-On Clip Grade 80
G80 DIN 580 Eye Bolt, G80 Eye Screw
G80 DIN 580 Eye Bolt, G80 Eye Screw
G80 Double Swivel Shackle
G80 Double Swivel Shackle
G80 Lifting Screw Points Forged Alloy Steel
G80 Lifting Screw Points Forged Alloy Steel
G80 DIN 582 Eye Nut, Lifting Eye Nut
G80 DIN 582 Eye Nut, Lifting Eye Nut
G80 Forged D Ring
G80 Forged D Ring
G80 Lifting Eye Screw with Omega Link
G80 Lifting Eye Screw with Omega Link
G80 Weld On Pivoting D Link with Pad
G80 Weld On Pivoting D Link with Pad
China LG RIGGING's Updates
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study
18
Apr
2024
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study Learn More
How to Properly Use a Rope Thimble: a Step-by-Step Guide
11
Apr
2024
How to Properly Use a Rope Thimble: a Step-by-Step Guide Learn More
The Role of Wire Thimble Types in Stage Rigging
04
Apr
2024
The Role of Wire Thimble Types in Stage Rigging Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
