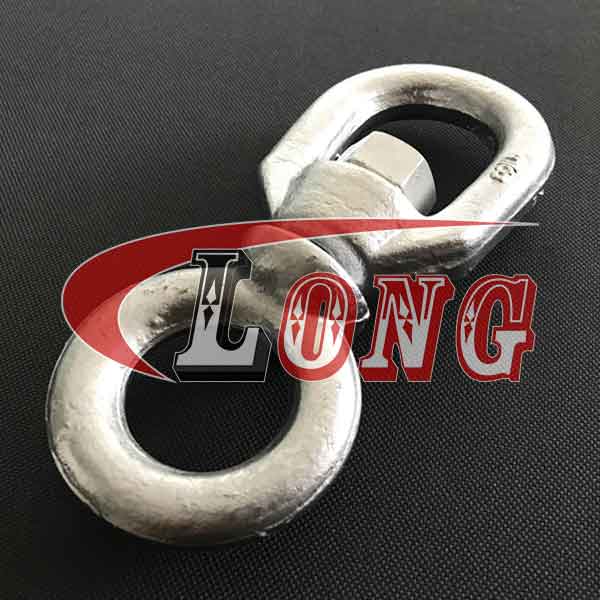

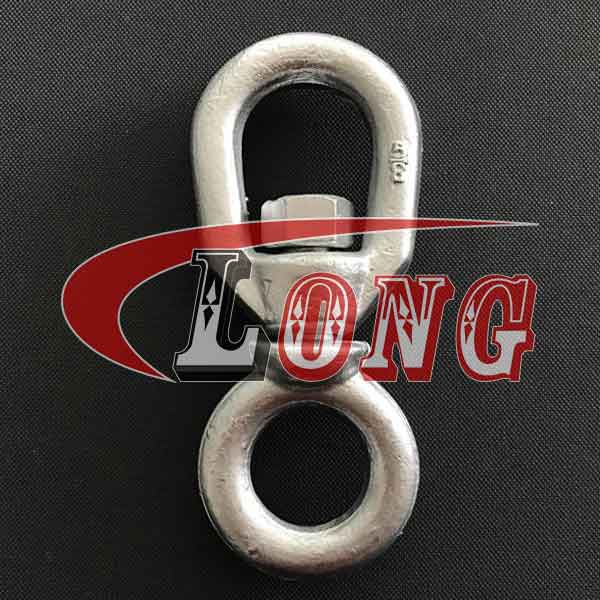

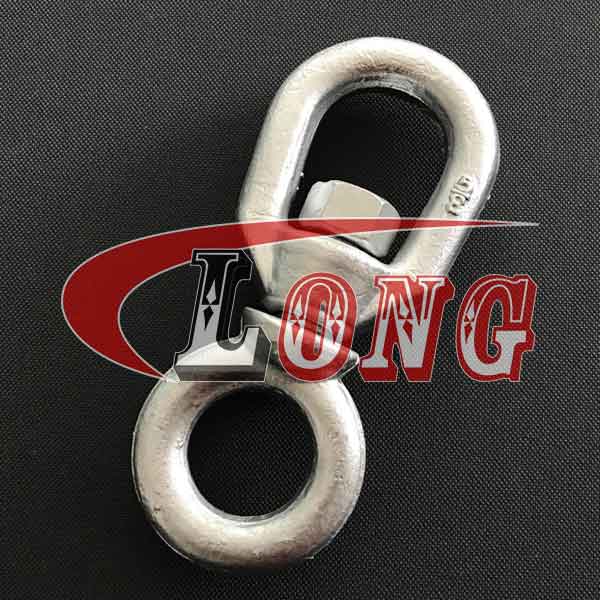

Chain Swivel Galvanized G-401

Chain Swivel Galvanized G-401, also known as mooring chain swivel.


Chain swivel G401 made of superior carbon steel(1045), been drop forged and welded , and also has been hot dip galvanized or Electric galvanized, making them ideal for various marine and industrial rigging applications.


G-401 chain swivel, for load positioning only, not designed to rotate under load.


Meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 1.


Also available in: G-402 Regular Swivels, G-403 Jaw End Swivels.

Trawling Gear
Shackles
Boat Fittings

Information of Chain Swivel Galvanized G-401

Material

Superior Carbon Steel (1045) chain swivel

Processing

Drop Forged + Welded +Heat Treated

Finish

Hot Dip Galvanized / Electric Galvanized

Safety Factor

5: 1

Size

1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4” mooring chain swivel

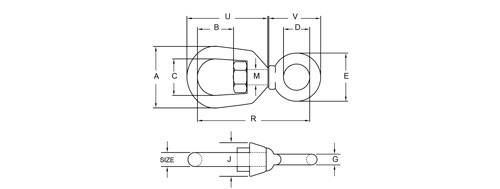

Specifications of Chain Swivel Galvanized G-401

Specifications of Chain Swivel Galvanized G-401


Part No.

Size

W.L.L.

Weight

Dimensions (in.)

(in.)

(lbs.)

(lbs.)

A

B

C

D

E

G

J

M

R

U

V

LG-401-C45-1/4

1/4

850

0.13

1.25

0.69

0.75

0.62

1.12

0.25

0.69

0.31

2.25

1.69

1.25

LG-401-C45-5/16

5/16

1250

0.25

1.63

0.81

1

0.75

1.38

0.31

0.81

0.38

2.72

2.06

1.47

LG-401-C45-3/8

3/8

2250

0.54

2

0.94

1.25

1

1.75

0.38

1

0.5

3.44

2.5

1.88

LG-401-C45-1/2

1/2

3600

1.12

2.5

1.31

1.5

1.25

2.25

0.5

1.31

0.63

4.25

3.19

2.44

LG-401-C45-5/8

5/8

5200

2.09

3

1.56

1.75

1.5

2.75

0.62

1.5

0.75

5.13

3.88

2.94

LG-401-C45-3/4

3/4

7200

3.09

3.5

1.75

2

1.75

3.25

0.75

1.88

0.88

5.78

4.94

3.46



Bulk Photos of Chain Swivel Galvanized G-401

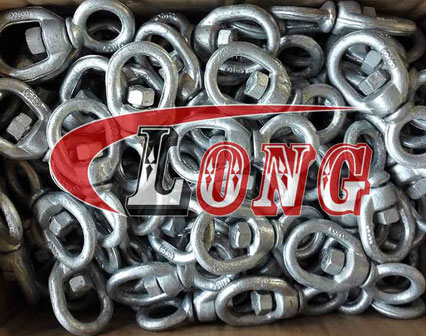

bulk photos of chain swivel galvanized g 401

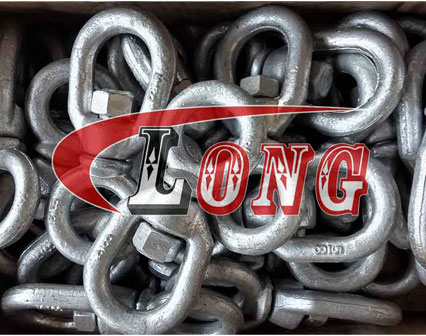

bulk photos of chain swivel galvanized g 401 2

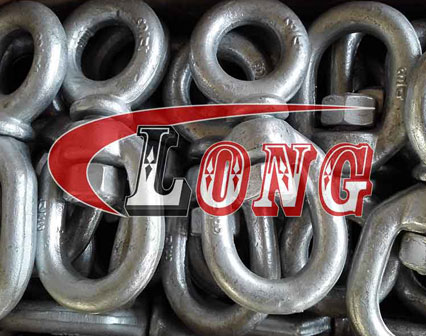

bulk photos of chain swivel galvanized g 401 3

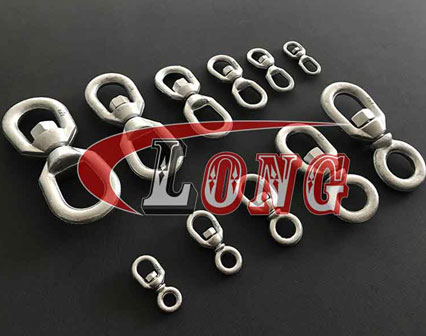

bulk photos of chain swivel galvanized g 401 4
