LGRIG® LGRIG® Stainless Steel Strap Hinge with Countersunk Holes HSE Type

LGRIG® LGRIG® Stainless Steel Strap Hinge with Countersunk Holes HSE Type, also known as Stainless Steel Hinge, Door Hinge, Gate Hinge.

This stainless steel strap hinge is designed to provide a secure, durable and reliable connection for doors, hatches, lockers, cabinets, access panels and other hinged structures. Its extended strap-style leaves provide a broader mounting surface than a compact butt hinge, helping distribute the fixing points across the mounting area for stable and dependable operation.


The hinge features multiple countersunk mounting holes designed for compatible flat-head screws, allowing the fasteners to sit neatly within the recessed holes and creating a clean, low-profile installation. The stainless steel construction provides good resistance to corrosion, moisture and everyday wear, making the hinge suitable for indoor, outdoor, commercial and industrial applications. When produced in AISI 316 marine-grade stainless steel, it is particularly suitable for boats, yachts, marine lockers, hatches, coastal installations and other environments exposed to moisture or saltwater.


Available in 38 × 76 mm and 38 × 102 mm sizes, this stainless steel strap hinge is suitable for applications requiring a longer mounting surface and stable hinge support. It can be used for boat hatches, cabin doors, lockers, storage compartments, access panels, equipment cabinets, outdoor enclosures and other hinged structures where durability and corrosion resistance are important.


With its extended strap design, countersunk mounting holes, sturdy hinge barrel and clean stainless steel finish, this hinge combines practical installation with reliable movement and a professional appearance. It is a versatile solution for marine hardware, outdoor equipment, industrial enclosures, cabinets, doors and general hardware applications.


Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Footrope Gear
Trawl Door
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless Chains
Stainless U Bolts
Stainless Hinge
LGRIG® Stainless Steel Strap Hinge 25×100 mm
LGRIG® Stainless Steel Hinge 128# 4 Point Fixing
LGRIG® Stainless Steel Hinge 123#
LGRIG® Stainless Steel Hinge 117#
LGRIG® Stainless Steel Butt Hinge HFE Type
LGRIG® Stainless Steel Hinge 113#
LGRIG® Stainless Steel Strap Hinge 110#
LGRIG® Stainless Steel Hinge 109#
LGRIG® LGRIG® Stainless Steel Strap Hinge with Countersunk Holes HSE Type
LGRIG® Stainless Steel Round Side Hinge HGRT Type
LGRIG® Stainless Steel Hinge 105#
LGRIG® Stainless Steel Butt Hinge HGR Type
LGRIG® Stainless Steel Hinge HGF Type
LGRIG® Stainless Steel Tee Hinges TA Type
Stainless Pulleys
Drop Forged Stainless Products
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Stainless Steel Strap Hinge with Countersunk Holes HSE Type

Brand

LGRIG®

Product Name

Stainless Steel Strap Hinge with Countersunk Holes

Material

Type 304 or 316 Stainless Steel

Surface Finish

High Polished

Model

HSE

Features

Extended strap design, multiple countersunk holes

Mounting

Screw Mount

Hole Type

Countersunk

Application

Doors, hatches, lockers, marine hardware

Available Sizes

38x76 / 38x102 mm

Thickness

4.5 mm

Origin

China

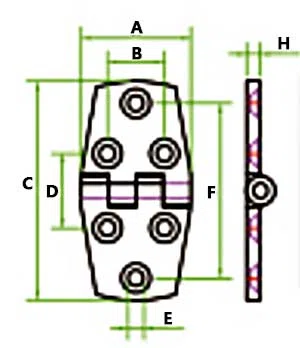

Specifications of LGRIG® Stainless Steel Strap Hinge with Countersunk Holes HSE Type


Part No.

Size

A

B

C

D

E

F

H

Weight

LGSSHSE76

38×76 mm

38.0 mm

20.0 mm

76.0 mm

26.0 mm

5.3 mm

61.0 mm

4.5 mm

0.088 kg

ZB0402-102

38×102 mm

38.0 mm

20.0 mm

102.0 mm

25.0 mm

5.3 mm

87.0 mm

4.5 mm

0.118 kg


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Hinge

LGRIG® Stainless Steel Hinge 123#
LGRIG® Stainless Steel Hinge 123#
LGRIG® Stainless Steel Hinge 105#
LGRIG® Stainless Steel Hinge 105#
LGRIG® Stainless Steel Hinge 128# 4 Point Fixing
LGRIG® Stainless Steel Hinge 128# 4 Point Fixing
LGRIG® Stainless Steel Round Side Hinge HGRT Type
LGRIG® Stainless Steel Round Side Hinge HGRT Type
LGRIG® Stainless Steel Tee Hinges TA Type
LGRIG® Stainless Steel Tee Hinges TA Type
LGRIG® Stainless Steel Hinge HGF Type
LGRIG® Stainless Steel Hinge HGF Type
LGRIG® Stainless Steel Hinge 113#
LGRIG® Stainless Steel Hinge 113#
LGRIG® Stainless Steel Butt Hinge HFE Type
LGRIG® Stainless Steel Butt Hinge HFE Type
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
