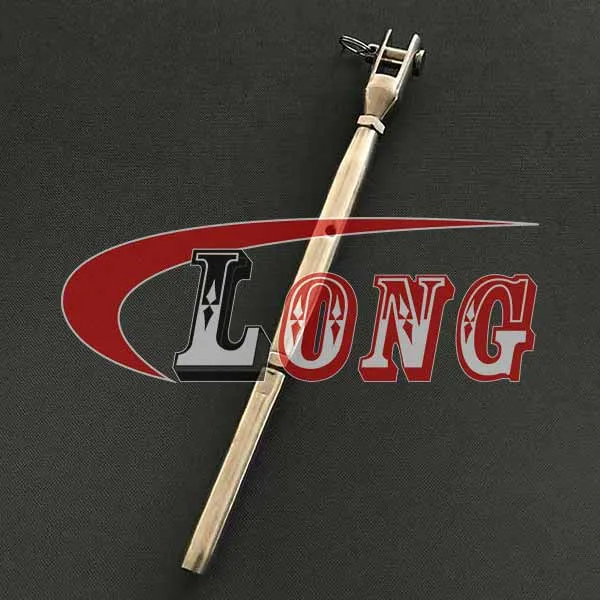

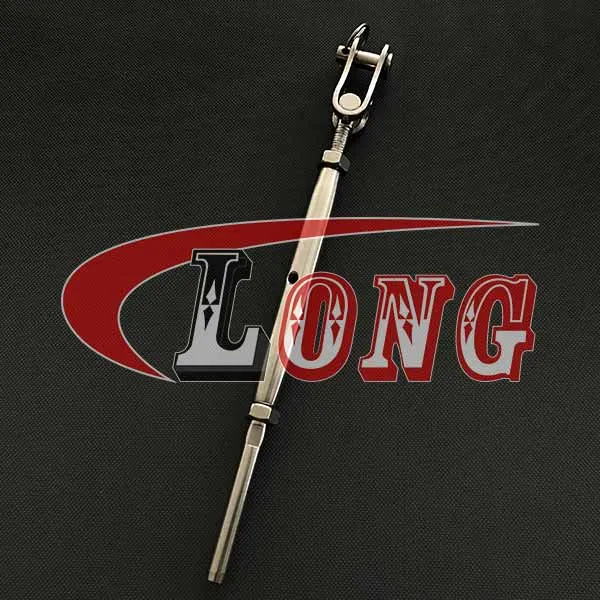

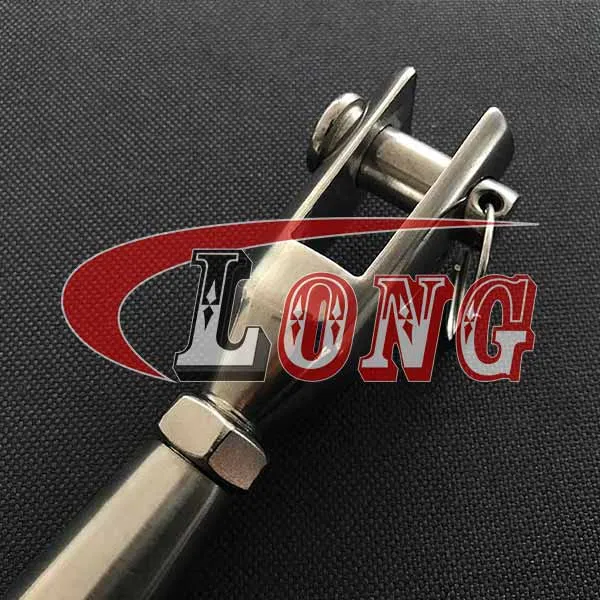

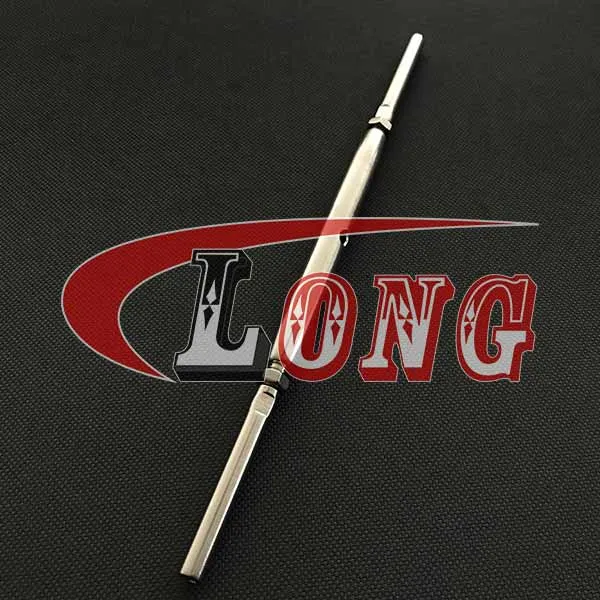

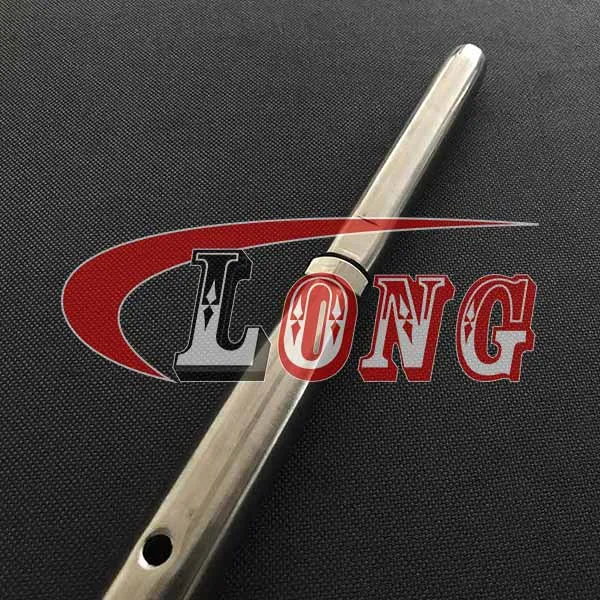

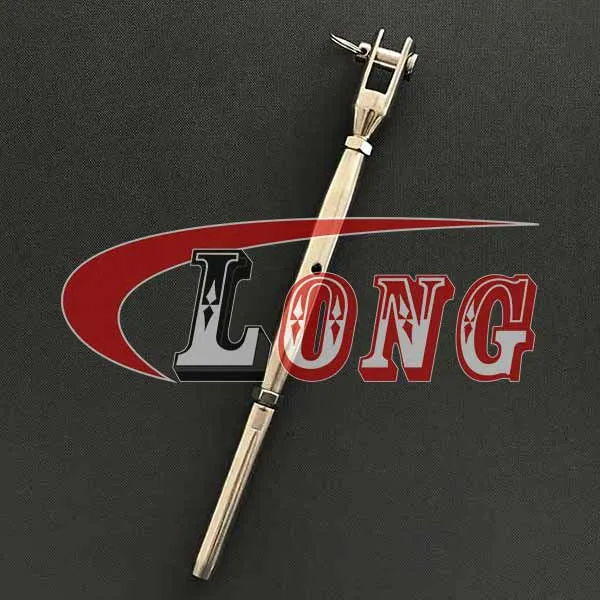

LGRIG® Stainless Steel Rigging Screw Machined Fork/Terminal, also known as Stainless Steel Rigging Screws Machined Fork/Swage, Bottle Screw, Closed Body Turnbuckle or pipe body turnbuckle.
Stainless Steel Rigging Screw Machined Fork & Terminal, conform to JIS type, made of superior marine grade AISI 316, is highly resistant to high chloride and other corrosive environments.
One end have cast or full machined fork (you could choose according to your demand), the other end has swage stud/swage terminal.
The rigging screw body is closed and uses solid stainless steel AISI 316, processing is reduced tube and machining.
Stainless steel closed body turnbuckle is used primarily in the marine rigging and rigging industry.
Rigging screw used to connect wire ropes together or connect wire rope to a fixed anchor point.
Brand | LGRIG® |
Material | AISI316 Stainless Steel Rigging Screw |
Turnbuckle Type | Closed Body Rigging Screw |
End Fittings | Machined Fork/Terminal |
Size | M4, M5, M6, M8, M10, M12,M14, M16, M20, M22, M24, M27, M30, M36 Rigging Screw Machined Fork/Swage Terminal |
Processing | Body: Machining Fork: Machining Swage Stud/Swage/Terminal: Machining / Stamping |
Finish | Highly Polished |
Tips | Corrosion Resistant |
Country of Origin | China |

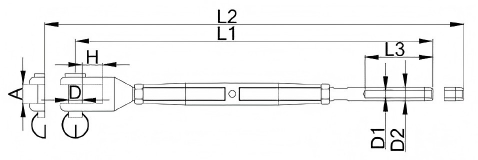

Part No. | Thread Size | Wire | A | D | H | D1 | D2 | L3 | L1 | L2 | KG/100 | B.L. |
mm | mm | mm | mm | mm | mm | mm | mm | mm | KG | |||
LGSSRSFT0402 | M4 | 2 | 5.5 | 4 | 8 | 2.2 | 4.8 | 24 | 130 | 190 | 3 | 500 |
LGSSRSFT0502 | M5 | 2 | 6.5 | 5 | 10 | 2.2 | 5.5 | 32 | 150 | 210 | 5 | 800 |
LGSSRSFT0525 | M5 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 32 | 150 | 210 | 5 | 800 |
LGSSRSFT0603 | M6 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 39 | 180 | 250 | 8.5 | 1250 |
LGSSRSFT0604 | M6 | 4 | 7.5 | 6 | 10 | 4.3 | 7.5 | 45 | 190 | 260 | 9.5 | 1250 |
LGSSRSFT0804 | M8 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 45 | 210 | 285 | 16 | 2350 |
LGSSRSFT0805 | M8 | 5 | 11 | 8 | 11 | 5.3 | 9 | 52 | 215 | 290 | 16.5 | 2350 |
LGSSRSFT1005 | M10 | 5 | 12 | 9 | 14 | 5.3 | 9 | 52 | 240 | 330 | 28 | 3500 |
LGSSRSFT1006 | M10 | 6 | 12 | 9 | 14 | 6.4 | 12.6 | 64 | 255 | 345 | 31.5 | 3500 |
LGSSRSFT1206 | M12 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 64 | 300 | 410 | 55 | 5100 |
LGSSRSFT1208 | M12 | 8 | 14 | 12 | 20 | 8.4 | 16 | 80 | 320 | 430 | 61 | 5100 |
LGSSRSFT1407 | M14 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 330 | 450 | 68 | 5900 |
LGSSRSFT1608 | M16 | 8 | 17 | 16 | 26 | 8.4 | 16 | 80 | 370 | 510 | 120 | 8000 |
LGSSRSFT1610 | M16 | 10 | 17 | 16 | 26 | 10.5 | 18 | 90 | 380 | 520 | 124 | 8000 |
LGSSRSFT2010 | M20 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 410 | 560 | 237 | 13000 |
LGSSRSFT2012 | M20 | 12 | 20 | 19 | 30 | 12.6 | 20 | 105 | 425 | 575 | 242 | 13000 |
LGSSRSFT2214 | M22 | 14 | 22 | 22 | 35 | 14.7 | 25 | 140 | 540 | 720 | 565 | 17000 |
LGSSRSFT2416 | M24 | 16 | 25 | 25 | 38 | 16.9 | 28 | 160 | 630 | 860 | 620 | 20000 |
LGSSRSFT2719 | M27 | 19 | 30 | 28 | 41 | 20 | 34.5 | 200 | 720 | 950 | 1185 | 25500 |
LGSSRSFT3022 | M30 | 22 | 35 | 32 | 52 | 23.2 | 40.5 | 230 | 820 | 1080 | 1675 | 31000 |
LGSSRSFT3626 | M36 | 26 | 35 | 35 | 52 | 27.5 | 46 | 280 | 910 | 1185 | 2242 | 43000 |
