Information of AS2741 Grade S Bow Shackle with Safety Pin&Nut

Technical Notes	Grade S Bow Shackle conform to AS2741
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel
Safety Factor	6: 1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin:Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated Screw Pin: Zinc Plated + Powder Coated
Size	13mm, 16mm, 19mm, 22mm, 25mm, 29mm, 32mm, 35mm 38mm, 44mm, 51mm, 57mm, 63mm, 76mm. 89mm, 102mm
Tips	Special specification and marks can be made according to customers’ requirements

Specifications of AS2741 Grade S Bow Shackle with Safety Pin&Nut

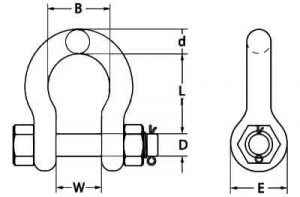

Part No.	SIZE	WLL	Wt.	DIMENSIONS
Part No.	SIZE	WLL	Wt.	B	D	d	e	L	W
Grade S	mm	T	kg	mm
LG-S-BS+SaP-13	13	2	0.36	33	16	13	33	48	21
LG-S-BS+SaP-16	16	3.2	0.76	43	19	16	40	61	27
LG-S-BS+SaP-19	19	4.7	1.23	51	22	19	48	82	32
LG-S-BS+SaP-22	22	6.5	1.79	58	25	22	54	84	37
LG-S-BS+SaP-25	25	8.5	2.78	68	29	25	60	95	43
LG-S-BS+SaP-29	29	9.5	3.75	74	32	29	67	108	46
LG-S-BS+SaP-32	32	12	5.31	83	35	32	76	119	52
LG-S-BS+SaP-35	35	13.5	6.98	92	38	35	84	133	57
LG-S-BS+SaP-38	38	17	9.44	98	44	38	92	146	60
LG-S-BS+SaP-44	44	25	15.39	127	51	44	110	178	73
LG-S-BS+SaP-51	51	35	23.71	146	57	51	127	197	83
LG-S-BS+SaP-57	57	42.5	29.01	160	63	57	143	222	95
LG-S-BS+SaP-63	63	55	44.58	184	70	63	152	267	105
LG-S-BS+SaP-76	76	85	69.87	200	83	76	165	330	127
LG-S-BS+SaP-89	89	120	129.31	241	95	89	203	381	153
LG-S-BS+SaP-102	102	150	153.36	279	108	102	229	432	165
