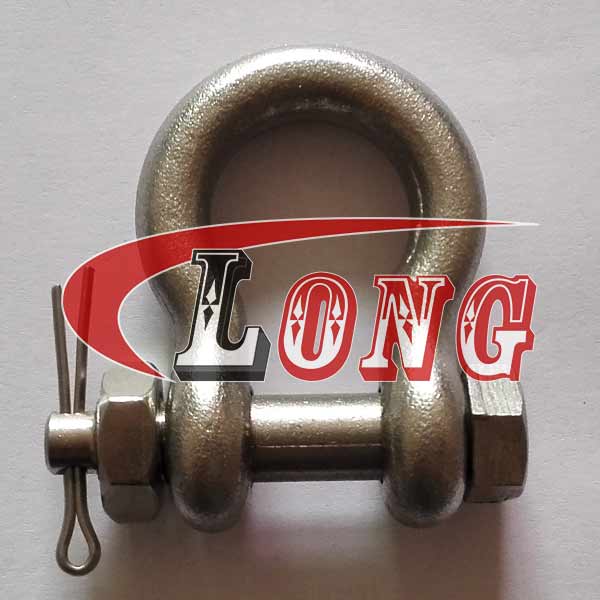

Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin

Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin G-2130, also known as anchor shackle, have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.

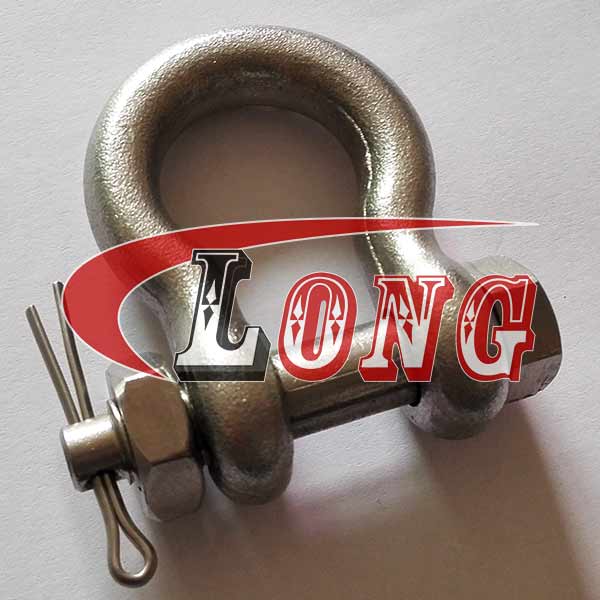

Stainless steel anchor shackle oversized pin bolt type forged US type, marked in the imperial specification style of size (for the bow diameter).

This a forging stainless steel bow shackle, which for load bearing applications is better than a cast shackle. Not to be used for overhead lifting. AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

The oversized pin bolt configuration is best for use in applications that are temporary, or require repeated or quick connections and disconnections.

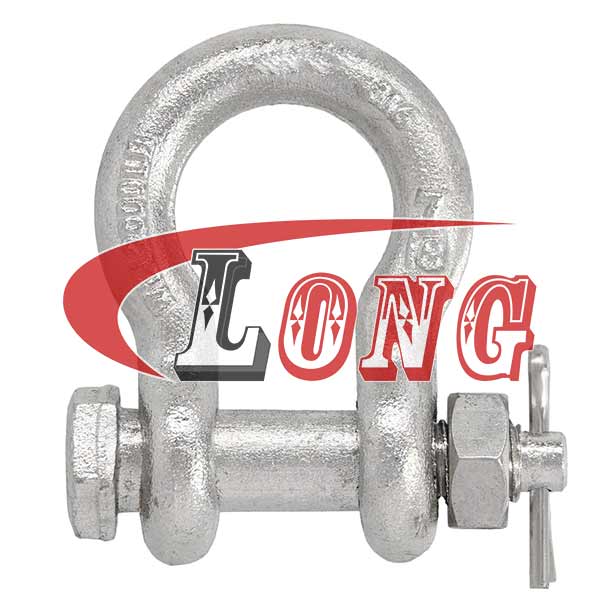

This bow shackle is drop forged and made in the US Type style of an oversized castle nut and cotter pin.

The bow diameter dictates the size of this US type anchor shackle, so this bow shackle has an oversized cotter bolt pin.

G-2130 Stainless Steel Forged Anchor Shackle cotter bolt oversized meets the performance requirements of Federal Specification RR-C-271F Type IVA, Grade A, Class 3.

Working Load Limit permanently shown on every shackle.

Trawling Gear
Shackles
Boat Fittings

Information of Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin

Technical Notes

Forged Anchor shackle conform to U.S. Federal Specification(ASME B30.26)

Material

Stainless steel 304/316 Forged bow Shackle

Processing

Body: Drop Forged

Screw Pin : hot/cold forging / Drop Forged

Finish

Highly Polished

Size

1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”

Tips

Special specification and marks can be made according to customers’ requirements.

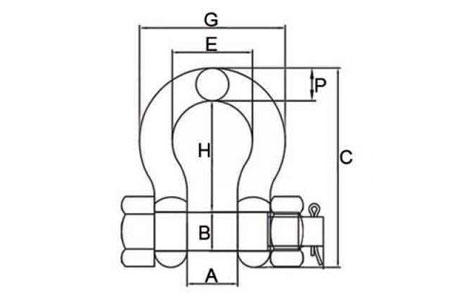

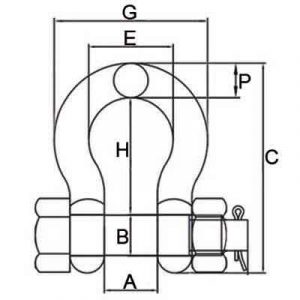

Specifications of Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin

Specifications of Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin


Part No.

Size

WLL

Weight

Dimensions (in.)

Tolerance +/-

(in)

(t)

(lbs)

A

B

H

E

C

G

P

C

A

LG-SS-F-2130-BTBS-3/16

3/16

1/3

0.06

0.38

0.25

0.88

0.6

1.47

0.98

0.19

0.06

0.06

LG-SS-F-2130-BTBS-1/4

1/4

1/2

0.11

0.47

0.31

1.13

0.78

1.84

1.28

0.25

0.06

0.06

LG-SS-F-2130-BTBS-5/16

5/16

3/4

0.22

0.53

0.38

1.22

0.84

2.09

1.47

0.31

0.06

0.06

LG-SS-F-2130-BTBS-3/8

3/8

1

0.33

0.66

0.44

1.44

1.03

2.49

1.78

0.38

0.13

0.06

LG-SS-F-2130-BTBS-7/16

7/16

1-1/2

0.49

0.75

0.5

1.69

1.16

2.91

2.03

0.44

0.13

0.06

LG-SS-F-2130-BTBS-1/2

1/2

2

0.79

0.81

0.64

1.88

1.31

3.28

2.31

0.5

0.13

0.06

LG-SS-F-2130-BTBS-5/8

5/8

3-1/4

1.68

1.06

0.77

2.38

1.69

4.19

2.94

0.69

0.13

0.06

LG-SS-F-2130-BTBS-3/4

3/4

4-3/4

2.72

1.25

0.89

2.81

2

4.97

3.5

0.81

0.25

0.06

LG-SS-F-2130-BTBS-7/8

7/8

6-1/2

3.95

1.44

1.02

3.31

2.28

5.83

4.03

0.97

0.25

0.06

LG-SS-F-2130-BTBS-1/1

1

8-1/2

5.66

1.69

1.15

3.75

2.69

6.56

4.69

1.06

0.25

0.06

LG-SS-F-2130-BTBS-1-1/8

1-1/8

9-1/2

8.27

1.81

1.25

4.25

2.91

7.47

5.16

1.25

0.25

0.06

LG-SS-F-2130-BTBS-1-1/4

1/1/4

12

11.71

2.03

1.4

4.69

3.25

8.25

5.75

1.38

0.25

0.06

LG-SS-F-2130-BTBS-1-3/8

1-3/8

13-1/2

15.83

2.25

1.53

5.25

3.63

9.16

6.38

1.5

0.25

0.13

LG-SS-F-2130-BTBS-1-1/2

1-1/2

17

19

2.38

1.66

5.75

3.88

10

6.88

1.62

0.25

0.13

LG-SS-F-2130-BTBS-1-3/4

1-3/4

25

33.91

2.88

2.04

7

5

12.34

8.8

2.25

0.25

0.13

LG-SS-F-2130-BTBS-2/1

2

35

52.25

3.25

2.3

7.75

5.75

13.68

10.15

2.4

0.25

0.13

LG-SS-F-2130-BTBS-2-1/2

2-1/2

55

98.25

4.13

2.8

10.5

7.25

17.9

12.75

3.13

0.25

0.25

LG-SS-F-2130-BTBS-3/1

3

85

154

5

3.3

13

7.88

21.5

14.62

3.62

0.25

0.25

LG-SS-F-2130-BTBS-3-1/2

3-1/2”

120

265

5.25

3.76

14.63

9

24.88

17.02

4.38

0.25

0.25

LG-SS-F-2130-BTBS-4/1

4

150

338

5.5

4.26

14.5

10

25.68

18

4.56

0.25

0.25
