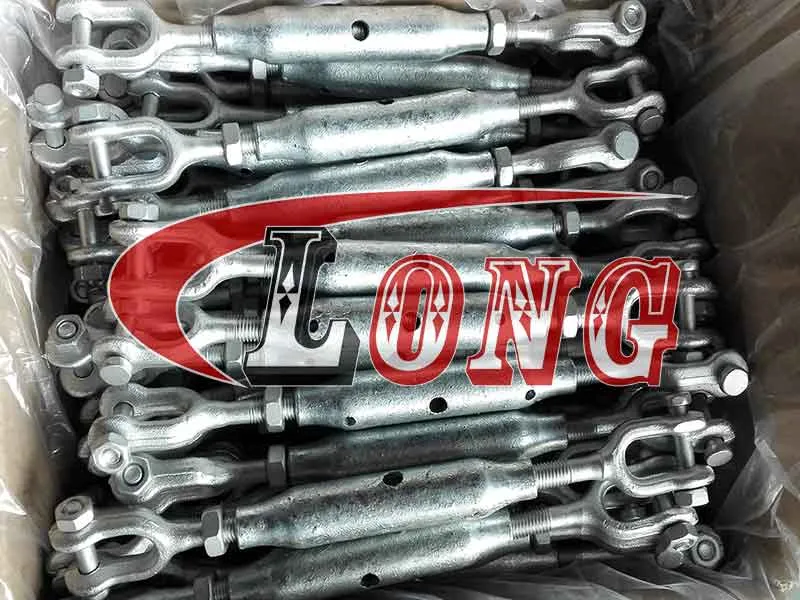

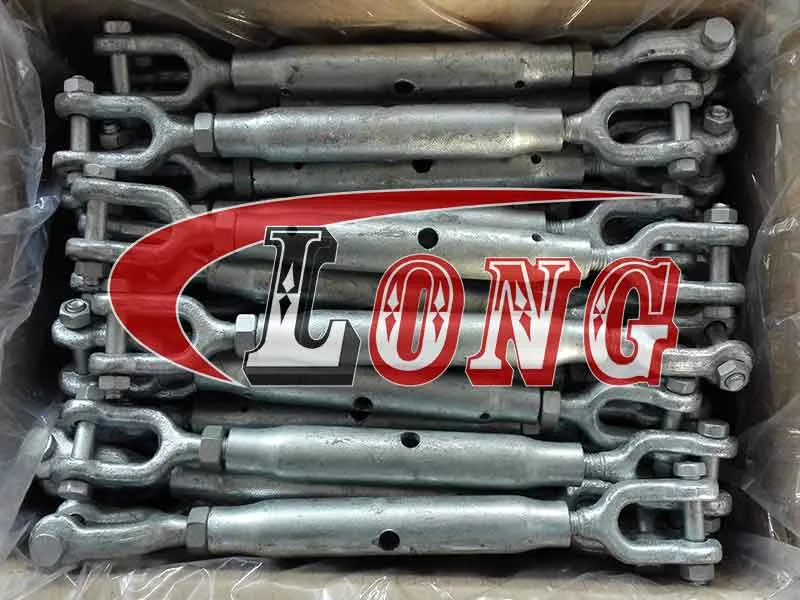

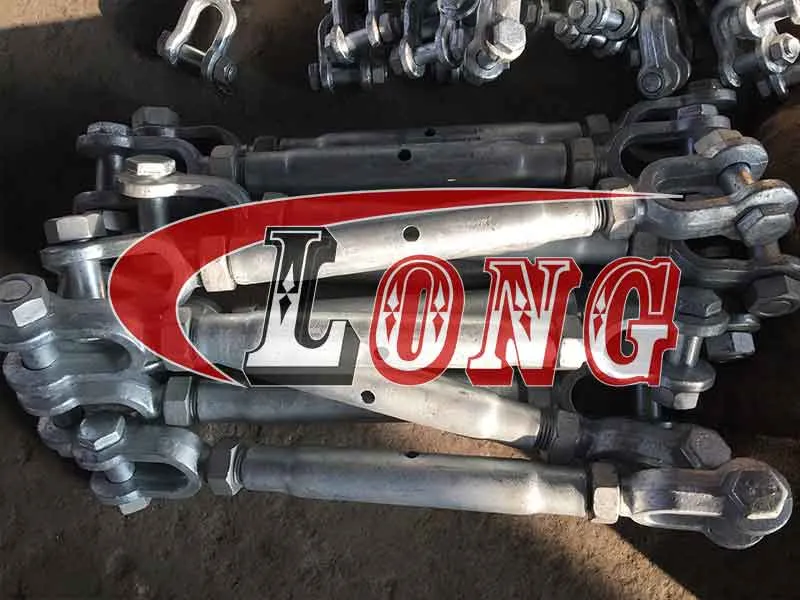

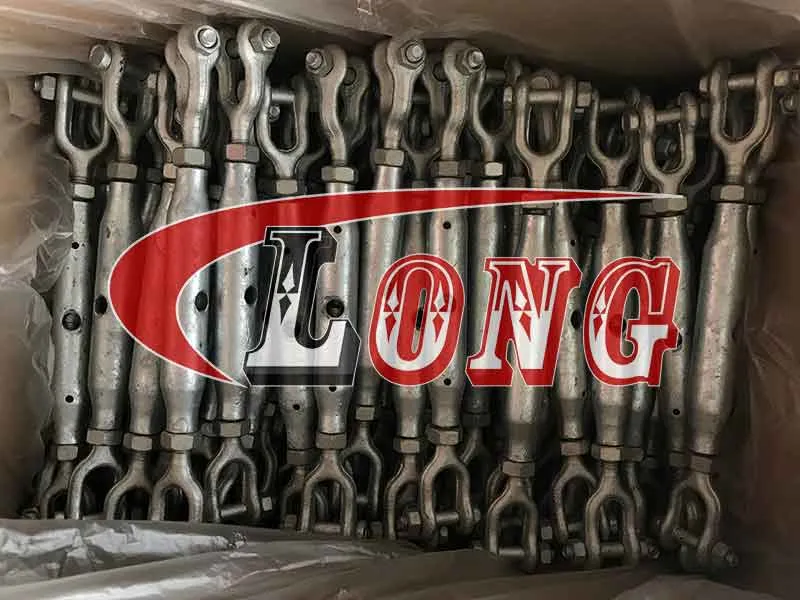

DIN 1478 Turnbuckle aka closed Body Turnbuckle, conforms to DIN 1478.

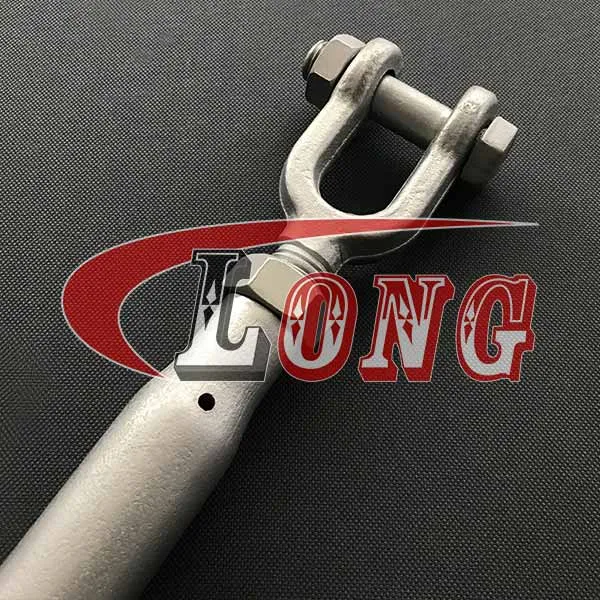

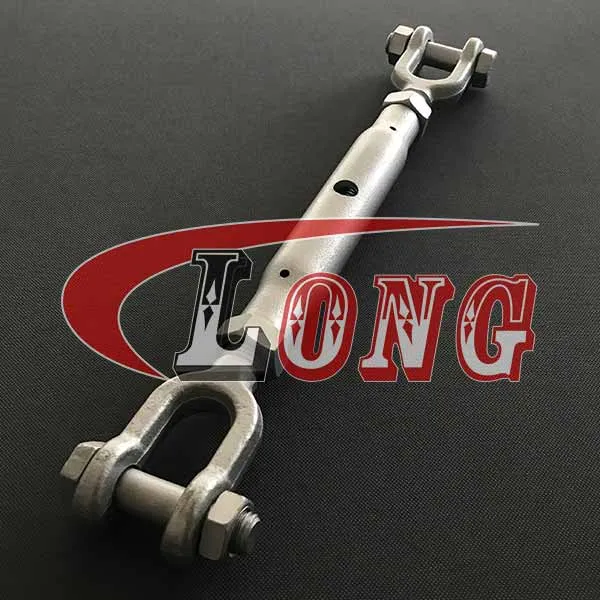

Turnbuckle DIN 1478 jaw/jaw is great for architecture or marine rigging. Sight holes are provided in the bodies to verify adequate thread engagement.
Jaw & jaw turnbuckle using superior grade raw material as per international qualitative standard DIN 1478.

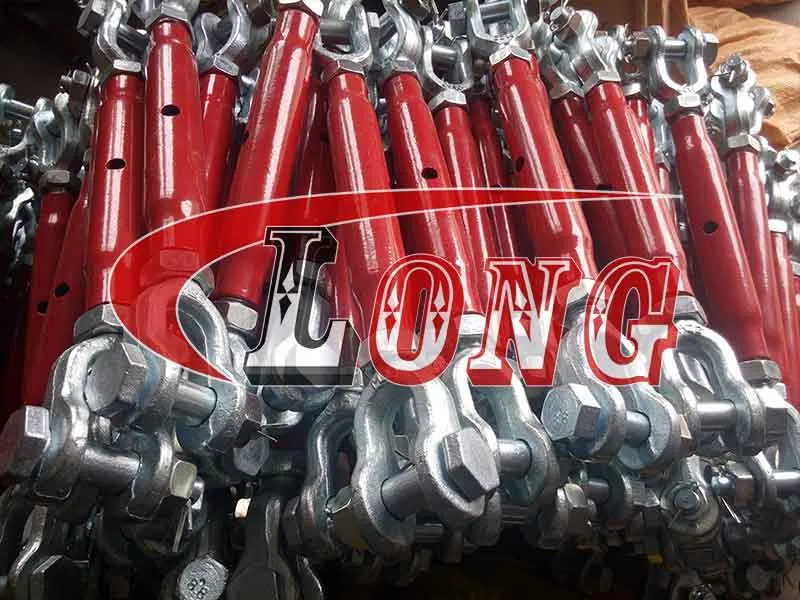

Our range of rigging screw turnbuckle din 1478 is available in standard as well as customized sizes.
Technical Notes | Turnbuckle To DIN1478 |
Material | Body: Cold-drawn Seamless Steel Tube ( C1020 ) DIN 1478 turnbuckle Jaw End: C1020 / C1045 |
Finish | Zinc plated, Hot dipped galvanized |
Size | M6 M8 M10 M12 M16 M20 M22 M24 M30 M36 turnbuckle DIN 1478 |
Important Notes | Not for Lifting.Only suitable for use in tension. |
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Part No. | Size | L1(mm) | L2(mm) | L3(mm) | Φ1(mm) | Φ2(mm) | Φ3(mm) | A(mm) | M(mm) | S.W.L | U.W. |
kgs | kgs | ||||||||||
LG1478-JJ-06 | M6 | 110 | 88 | 58 | 15 | 11.2 | 6 | 8 | 6 | 230 | 0.15 |
LG1478-JJ-08 | M8 | 110 | 105 | 65 | 17 | 14 | 8 | 10 | 8 | 440 | 0.26 |
LG1478-JJ-10 | M10 | 125 | 125 | 75 | 21 | 16 | 8 | 12 | 8 | 440 | 0.45 |
LG1478-JJ-12 | M12 | 125 | 145 | 85 | 25 | 18 | 10 | 16 | 10 | 600 | 0.66 |
LG1478-JJ-16 | M16 | 170 | 170 | 100 | 30 | 22.8 | 10 | 20 | 12 | 800 | 1.51 |
LG1478-JJ-20 | M20 | 200 | 184 | 115 | 34 | 27 | 12 | 24 | 16 | 1650 | 2.93 |
LG1478-JJ-24 | M24 | 255 | 214 | 130 | 42 | 32 | 12 | 30 | 20 | 2600 | 5 |
LG1478-JJ-30 | M30 | 255 | 251 | 140 | 51 | 38 | 16 | 36 | 24 | 3400 | 9.97 |
LG1478-JJ-36 | M36 | 295 | 300 | 170 | 63.5 | 50 | 16 | 45 | 28 | 4800 | 14.8 |
