EPS Fishing Net Floats for Commercial Fishing – China LG™

EPS Fishing Net Floats for Commercial Fishing – China LG™

  • Description

EPS Fishing Net Floats for Commercial Fishing – China LG™ – China LG Supply



Description

EPS Float for commercial fishing,made from compressed foam particles, which are anti-corrosion, anti-freezing, anti-oxidation and anti-ULTRAVIOLET strengthening materials. It is not subject to the erosion of seawater, chemicals, medicament, oil stains and aquatic organisms. Does not damage the environment, is the cage culture supporting products.

The EPS buoy surface adopts reasonable design, safe and stable, round shape, avoid installation difficulties. High bearing capacity, stable, durable, single float bearing capacity 170-300kg above.

The service life of this EPS net float is at least 8-10 years, and it hardly needs any maintenance and repair cost except for the improper use of natural force and artificial force.

The assembly of EPS fishing buoy is simple, fast, flexible and diversified. The overall module structure can be used to quickly change the platform modeling according to the needs of various conditions. The cost is reasonable and economical. In the long run, the cost and time of maintenance, maintenance, replacement and overhaul can be saved.

This EPS float ball can also add relevant supporting equipment, such as bollards, bollards, landing bulwarks, etc., to berthing vessels of all sizes. Because of the buoyancy of floating platform, it can rise and fall with the water level automatically.

EPS float is widely used in the breeding industry and is an excellent substitute for PE float. Features are: easy to large easy to small, water and underwater can be used, strong plasticity, low production cost, high buoyancy (100~300Kg), anti-aging, long service cycle.



Technical & Application

MaterialEPS
FinishWhite
Size600×1100mm,550×900mm,500×900mm,40×98×170mm,

EPS10.6”,EPS7.5”,EPS6”

Specification 1 – EPS Fishing Net Floats for Commercial Fishing

EPS Fishing Net Floats for Commercial Fishing

Part No.Sepcification(mm)

OD×H×HD(±5%)

Weight(g)
(±10%)
Buoyancy(g)
(±10%)
Pcs/20’GPUse SeaMaterial

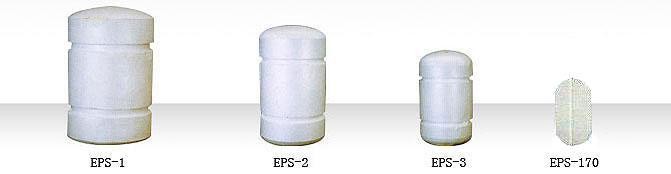

LGEPS-1600×1100mm540030080S.SEPS
LGEPS-2550×900mm3500200100S.SEPS
LGEPS-3500×900mm3300170120S.SEPS
LGEPS-17040×98×17091561g42000S.SEPS



Specification 2

EPS Fishing Net Floats for Commercial Fishing

Part No.Sepcification(mm)

OD×H×HD(±5%)

Weight(g)
(±10%)
Buoyancy(g)
(±10%)
Pcs/20’GPUse SeaMaterialPart No.

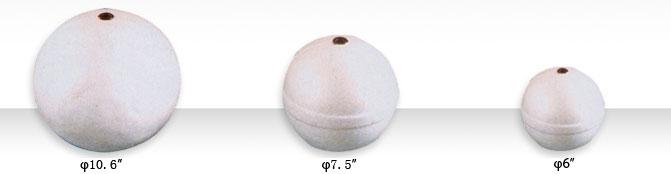

LGEPS10.6EPS10.6”270×14213100001500S.SEPS
LGEPS7.5EPS7.5”190×127334404400S.SEPS
LGEPS6EPS6”150×105117748200S.SEPS





If you need help determining the right assembly or size for your application, e-mail our specialists at sales@lg-lifting.com for assistance. 🙂
