Name: Spring Snap Hook DIN5299 Form C Stainless Steel
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

 Spring Snap Hook DIN5299 Form C Stainless Steel

 Snap Hook DIN 5299 with Screw Nut Stainless Steel

 Snap Hook with Eyelet DIN 5299 Stainless Steel

 Snap Hook DIN5299 Stainless Steel with Screw&Eyelet

 Oval Snap Hook Stainless Steel

 Oval Snap Hook with Screw Nut Stainless Steel

 Stainless Steel Swivel Hook with Latch

 Harness Clip Square End Stainless Steel

 S Hooks Stainless Steel

 Stainless Steel Boss G Hook, Egg Type-LG RIGGING®

 Large Eye Hook with Latch Stainless Steel

 Clevis Swivel Hook with Latch Stainless Steel

 Eye Slip Hook with Latch Stainless Steel

 Swivel Eye Bolt Snap Hook Stainless Steel

 Swivel Eye Boat Snap Hook Stainless Steel

 Fixed Eye Boat Snap Hook Stainless Steel

 Spring Gate Snap Hook Stainless Steel Egg Shape

 Wide S Hook Asymmetric Stainless Steel

 Stainless Steel Long Arm S Hooks

 Boss G Hook Stainless Steel-China LG Supply

 Pear Shaped Spring Snap Hook Stainless Steel for Stainless Hooks & Clips

 Cargo Hook with Latch S-320 Stainless Steel for Stainless Hooks and Clips

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Spring Snap Hook DIN5299 Form C Stainless Steel

Technical Notes	Snap Hook to DIN 5299
Material	Stainless Steel (AISI 304/AISI 316)
Processing	Stamping / Machining
Finish	Highly Polishing / Electrophoretic coating
Size	4mm, 5mm, 6m , 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm
Tips	Not for overhead lifting

Specifications of Spring Snap Hook DIN5299 Form C Stainless Steel

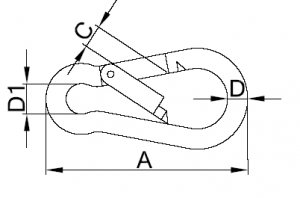

Part No.	Size (mm)	D (mm)	A (mm)	C (mm)	D1 (mm)	WLL (lbs)
LG-SH5299+S-04	4×40	4	40	6	6.5	80
LG-SH5299+S-05	5×50	5	50	7	8	100
LG-SH5299+S-06	6×60	6	60	8	9	140
LG-SH5299+S-07	7×70	7	70	8	10.5	200
LG-SH5299+S-08	8×80	8	80	9	12	250
LG-SH5299+S-09	9×90	9	90	10	13	280
LG-SH5299+S-10	10×100	10	100	12	15	400
LG-SH5299+S-11	11×120	11	120	16	18	500
LG-SH5299+S-12	12×140	12	140	19	20	600
LG-SH5299+S-13	13×160	13	160	25	22	700
LG-SH5299+S-14	14×180	14	180	35	22	900
