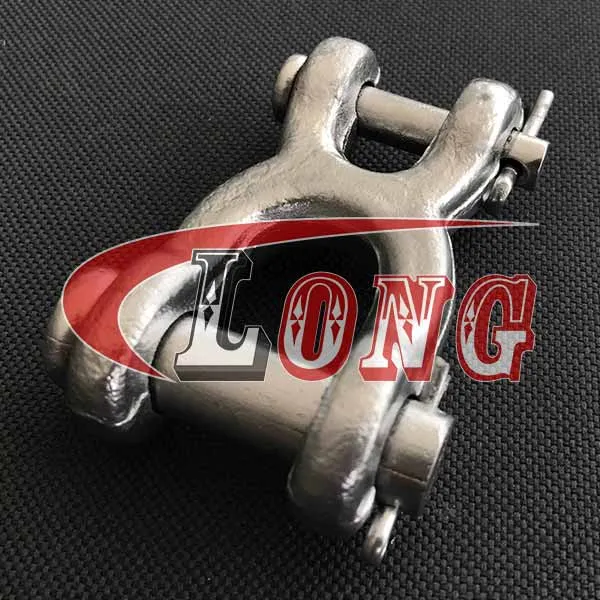

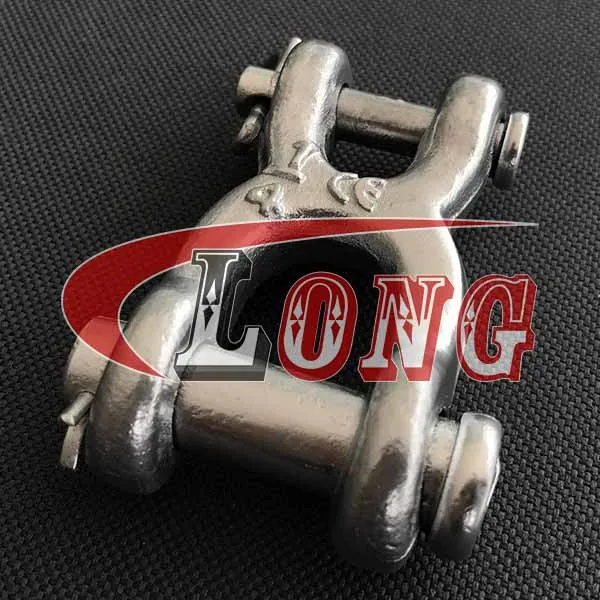

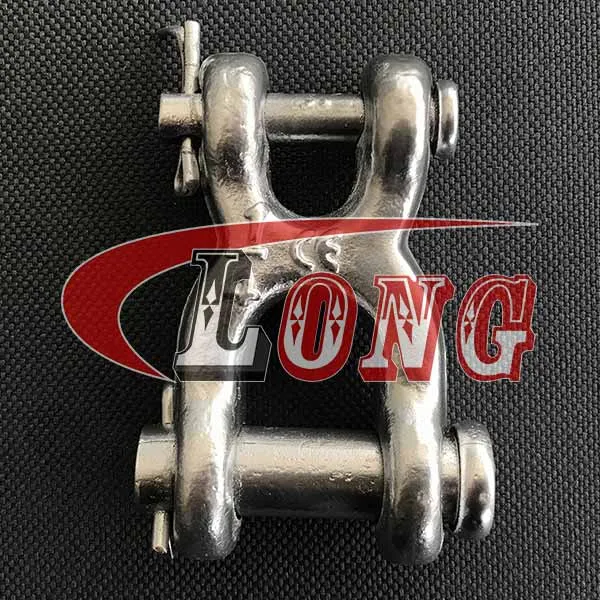

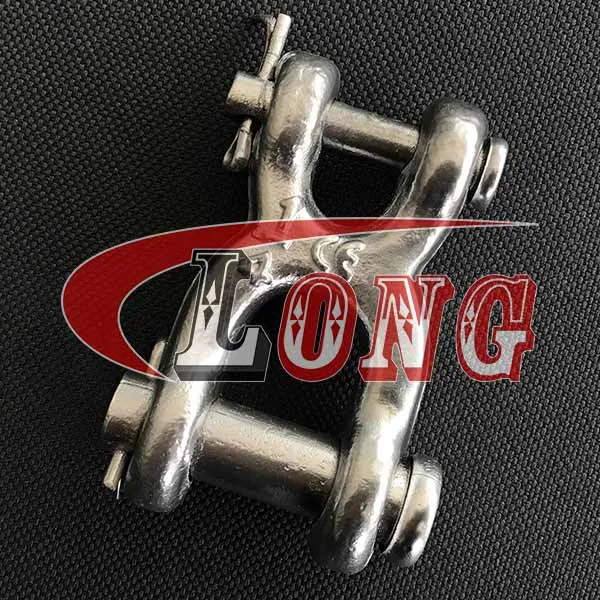

Double Clevis Link Forged Steel – LG RIGGING®

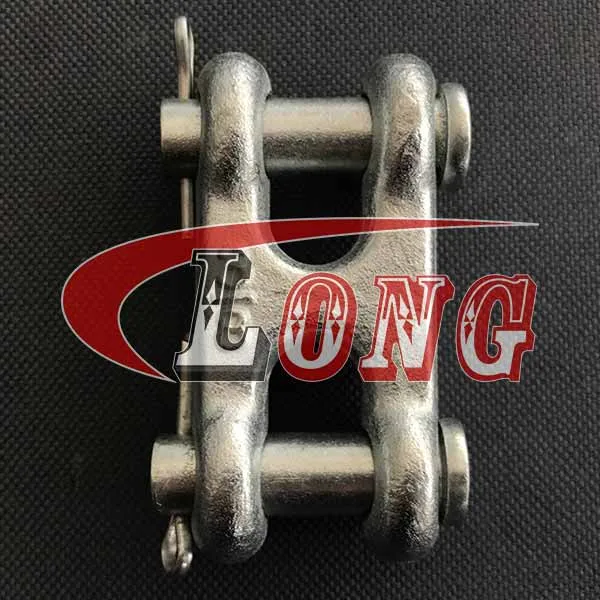

Double clevis link, sometimes called double links, twin links or twin clevis links, quickly and easily repair broken chains in the field or provide an easy to use attachment point for a variety of chain fittings.

Double clevis shackle, designed for linking all popular sizes of chain to rings, end links, eye hooks, pad eyes, tractor eye bolts, etc. Easy-to-install connector for short- or long-term use.

China LG double clevis links are made from zinc plated 1045-carbon steel and install conveniently with common hand tools.

Clevis and cotter pins are included to ensure you have everything you need to repair broken links when needed.

The clevis pin fastener provides a convenient attachment point for rounded chain assembly components, such as eye end fittings, tractor eye bolts, links or hook eyes.

Do not connect to jaw ends or other clevis or yoke fittings because the cotter pins can move axially along each other.

Double clevis links are for use with lower 30 grade proof coil chain and not intended for overhead lifting.

Chain clevis link, clevis attachment for each chain component.

Clevis link, convenient repair link low grade chain.

Double clevises, corrosion resistant zinc plating.

Double clevis links, do not us for overhead lifting.

Trawling Gear
Shackles
Boat Fittings

Information of Double Clevis Link Forged Steel – China LG™

Material

All pins Alloy Steel – Quenched and Tempered. Body, forged and heat treated Carbon Steel.

Processing

Drop Forged

Finish

Electric Galvanized, Powder Coated

Size

1/4″-5/16″, 3/8″, 7/16″-1/2″

Features

Quick and easy assembly


Specifications of Double Clevis Link Forged Steel – China LG™

Specifications of Double Clevis Link Forged Steel – China LG™


Part No.

SIZE

WLL

P1

P2

W1

W2

D1

D2

L1

L2

WT LBS

LGDCL101

1/4

2600

0.312

0.461

0.5

0.73

0.38

0.78

1.88

2.78

0.44

LGDCL102

5/16 3/8

5400

0.464

0.628

0.54

0.98

0.47

1

2.46

3.6

0.81

LGDCL103

7/16

7000

0.554

0.686

0.65

1.08

0.58

1.09

2.81

4.09

1.28

LGDCL104

1/2

9200

0.63

0.74

0.76

1.21

0.65

1.27

3.16

4.49

1.68

LGDCL105

5/8

17500

0.75

0.98

0.83

1.47

0.74

1.46

3.8

5.45

2.91


*DO NOT EXCEED THE WORKING LOAD LIMIT.
*Do Not Use for Overhead Lifting or Hoisting.
