Information of LGRIG® Shackles Similar to Din 82101 Form A/B/C Galvanised

Brand	LGRIG®
Standard	Dee shackle similar to Din 82101 Form A/B/C
Pin Type	Type A with collar pin, Type B with slotted bolt, Type C with safety bolt, nut and cotter pin.
Shackle Type	Dee Shackle
Processing	Forged / Quenched and Tempered
Finish	Galvanized, Powder Coating, or Self Colored
Size	3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″
Note	Working Load Limit Permanently Shown on Every Shackle.

Specifications of LGRIG® Shackles Similar to Din 82101 Form A/B/C Galvanised

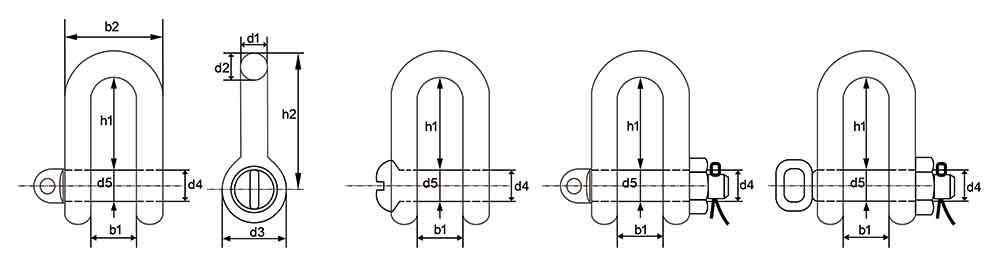

Size			SWL	b1	b2	d1	d2	d3	d4	d5	h1	h2	g /WEIGHT PER 100 PIECES
Size
Type													Type
A	B	C	kn *)	mm	mm	mm	mm	mm		mm	mm	mm	A	B	C
0,06	—	—	0,6	6	13	3,5	4	8	M4	4	12	18	0,007	—	—
0,1	—	—	1	7	15	4	5	10	M5	5	15,5	23	0,013	—	—
0,16	—	—	1,6	8	18	5	6	12	M6	6	18	27	0,024	—	—
0,25	—	—	2,5	11	25	7	8	16	M8	8	24	36	0,045	—	—
0,4	1	—	4	14	30	8	10	20	M10	10	30	45	0,090	0,085	—
0,6	1,6	—	6,3	17	37	10	12	24	M12	12	36	54	0,17	0,16	—
1	1	1	10	21	47	13	15	32	M16	16	49	72	0,36	0,35	0,40
1,6	1,6	1,6	16	27	61	17	19	40	M20	20	61	90	0,75	0,73	0,81
2	2	2	20	30	68	19	21	44	M22	22	67	99	1,00	0,97	1,08
2,5	2,5	2,5	25	33	75	21	23	48	M24	24	73	108	1,32	1,28	1,42
3	3	3	31,5	38	86	24	26	54	M27	27	83,5	123	1,8	1,7	2,03
4	4	4	40	42	96	27	29	60	M30	30	91	135	2,4	2,3	2,7
5	5	5	50	47	107	30	33	72	M36	36	111	162	3,9	3,7	4,4
6	6	6	63	53	121	34	37	78	M39	39	119,5	176	5,3	5,1	5,9
8	8	8	80	60	136	38	41	90	M45	45	139,5	203	7,9	7,6	8,5
10	10	10	100	66	150	42	45	96	M48	48	147	216	10	9,7	10,8
12	12	12	125	73	167	47	50	104	M52	52	158	234	13	12,9	14
16	16	16	160	81	185	52	55	120	M60	60	185	270	18,5	18,1	19,3
20	20	20	200	90	206	58	61	136	M68	68	211	306	27,2	26,8	28,2
—	—	25	250	100	226	63	67	144	M72x6	72	221	324	—	—	35,5
—	—	32	315	110	250	70	74	160	M80x6	80	246	360	—	—	49,5
—	—	40	400	125	283	79	84	180	M90x6	90	276	405	—	—	69
—	—	50	500	140	316	88	93	200	M100x6	100	307	450	—	—	93
—	—	63	630	155	347	96	101	220	M110x6	110	339	459	—	—	125
—	—	80	800	175	395	110	115	250	M125x6	125	385,5	563	—	—	180
—	—	100	1	200	450	125	130	280	M140x6	140	430	630	—	—	260
