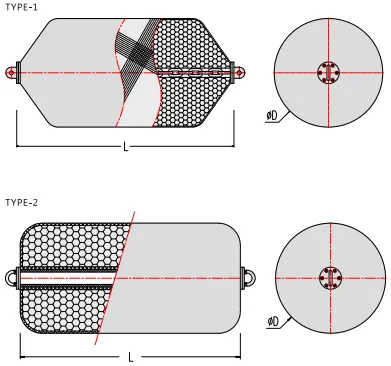

Specification of LGRIG® Foam Fenders PF Type

Part No.	Specification	D (mm)	L (mm)	60%Deflection		Weight Reference (Kg)
Part No.	Specification	D (mm)	L (mm)	Reaction force(kN)	Energy absorption (kNm)	Weight Reference (Kg)
LGFFPF35	300×500	300	500	13	0.49	11
LGFFPF46	400×600	400	600	18	1.05	19
LGFFPF510	500×1000	500	1000	38	2.18	42
LGFFPF610	600×1000	600	1000	49	3.4	63
LGFFPF1010	1000×1000	1000	1000	137	33	275
LGFFPF1015	1000×1500	1000	1500	206	49	410
LGFFPF1020	1000×2000	1000	2000	273	65	553
LGFFPF1215	1200×1500	1200	1500	256	70	615
LGFFPF1220	1200×2000	1200	2000	336	93	815
LGFFPF1525	1500×2500	1500	2500	520	180	1550
LGFFPF1530	1500×3000	1500	3000	626	217	1863
LGFFPF1630	1600×3000	1600	3000	860	270	2110
LGFFPF2035	2000×3500	2000	3500	992	458	3850
LGFFPF2040	2000×4000	2000	4000	1120	506	4590
LGFFPF2245	2200×4500	2200	4500	1402	682	6000
LGFFPF2540	2500×4000	2500	4000	1415	778	6860
LGFFPF2550	2500×5000	2500	5000	1735	992	8555
LGFFPF3050	3000×5000	3000	5000	2060	1422	12850
LGFFPF3060	3000×6000	3000	6000	2470	1702	15400
LGFFPF3365	3300×6500	3300	6500	2956	2248	16690
LGFFPF4385	4300×8500	4300	8500	19012	7398	32000
LGFFPF4590	4500×9000	4500	9000	21520	6732	38000

Performance tolerance: ±10%

Other specifications are available upon request.

Large foam fender need to be equipped with protective sleeve.

Unsinkable Closed cell foam core;

Filament reinforcement matrix;

Tough polyurethane skin or rubber;

Internal chains or steel tube.

Metal Accessories of LGRIG® Foam Fenders PF Type

Specification	U Anchor Dia.	Suspending chain Dia.	Shackle(Swivel) Dia.	Material
300×500	一	一	一	U Anchor: Q235 HDG or painted chain: Q235 or SBC490 HDG Shackle: Gr.S HDG
400×600	一	一	一
500×1000	30	20	20
600×1000	30	20	20
1000×1000	40	22	22
1000×1500	40	22	22
1000×2000	40	22	22
1200×1500	40	25	25
1200×2000	40	25	25
1500×2500	50	25	25
1500×3000	50	25	25
1600×3000	50	25	25
2000×3500	50	28	28
2000×4000	50	28	28
2200×4500	55	30	30
2500×4000	60	32	32
2500×5000	60	32	32
3000×5000	65	34	34
3000×6000	65	34	34
3300×6500	70	36	36
4300×8500	75	40	40
4500×9000	80	48	48
