Grade S Dee Shackle with Screw Pin AS2741

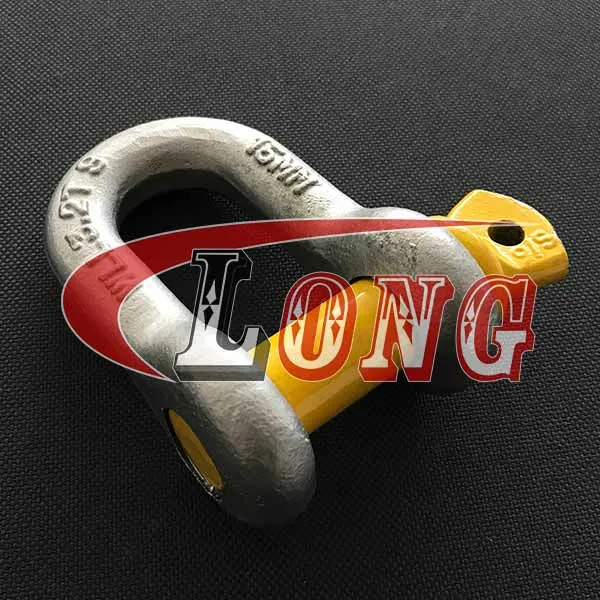

Grade S Dee Shackle with Screw Pin AS2741, also known as Grade S Screw Pin Shackle Dee type.

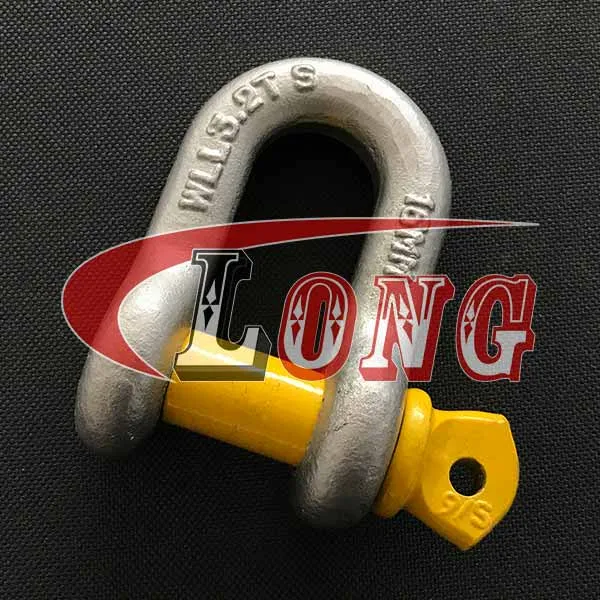

Dee shackle screw pin Grade S, manufactured to comply with the requirements of Australian Standard 2741, made from Grade “S” material in bow configuration with Screw Pin hot dipped galvanized.

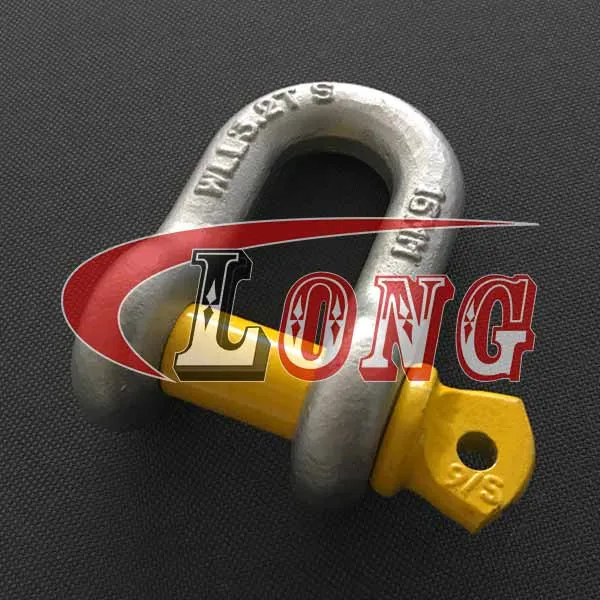

Screw pin grade S Dee shackle, most commonly used for lifting applications, providing connections to Chain, Wire Rope and other rated fittings within the Marine, Agricultural, Mining and Engineering Industries.

Screw pin shackles, mainly used for non-permanent applications. The Grade S shackles, are suitable for use where high strength is required, such as lifting, towing, and 4WD applications.

Screw pin Dee shackles grade S have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.

Dee shackles grade S,typically used on one-leg systems whereas Bow shackles are mainly used on multi-leg systems.

Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.

Our range of Grade S Dee Shackle with Screw Pin AS2741 is available in standard as well as customized sizes.

Trawling Gear
Shackles
Boat Fittings

Information of Grade S Dee Shackle with Screw Pin AS2741

Technical Notes

Grade S Dee Shackle with Screw Pin conform to AS2741

Material

Body: Superior Carbon Steel

Screw Pin: Alloy Steel

Safety Factor

6: 1

Processing

Body: Drop Forged / Quenched and Tempered

Screw Pin: Cold/Hot Forged / Drop Forged / Quenched and Tempered

Finish

Body: Hot Dipped Galvanized

Screw Pin: Zinc Plated + Powder Coated

Size

6mm, 8mm, 10mm, 11mm, 13mm, 16mm, 19mm, 22mm, 25mm, 29mm, 32mm, 35mm, 38mm, 44mm, 51mm, 57mm, 63mm

Suitable Applications

Marine, agricultural, towing, & general industrial.

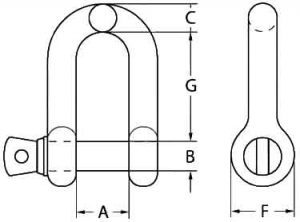

Specifications of Grade S Dee Shackle with Screw Pin AS2741

Specifications of Grade S Dee Shackle with Screw Pin AS2741


Part No.

Size

WLL

Weight

Dimensions

(mm)

(mm)

(tonnes)

(kg)

A

B

C

F

G

LG-S-DS+SP-06

6

0.5

0.05

12

8

6

17

22

LGS-DS+SP-08

8

0.75

0.09

13

10

8

21

26

LGS-DS+SP-10

10

1

0.14

17

11

10

25

32

LGS-DS+SP-11

11

1.5

0.17

18

13

11

27

37

LGS-DS+SP-13

13

2

0.29

21

16

13

33

41

LGS-DS+SP-16

16

3.2

0.63

27

19

16

40

51

LGS-DS+SP-19

19

4.7

1.02

32

22

19

48

60

LGS-DS+SP-22

22

6.5

1.53

37

25

22

54

71

LGS-DS+SP-25

25

8.5

2.41

43

29

25

60

81

LGS-DS+SP-29

29

9.5

3.09

46

32

29

67

90

LGS-DS+SP-32

32

12

4.31

52

35

32

76

100

LGS-DS+SP-35

35

13.5

6.01

57

38

35

84

113

LGS-DS+SP-38

38

17

8.03

60

44

38

92

124

LGS-DS+SP-44

44

25

13.79

73

51

44

110

146

LGS-DS+SP-51

51

35

20.42

83

57

51

127

171

LGS-DS+SP-57

57

42.5

26.06

95

63

57

143

181

LGS-DS+SP-63

63

55

38.8

105

70

63

152

203
