Stainless Steel Swage Jaw Terminal – China LG Supply
Description

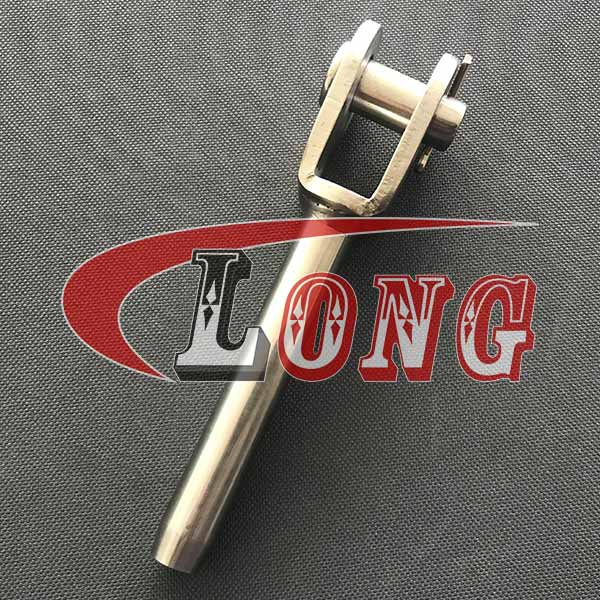

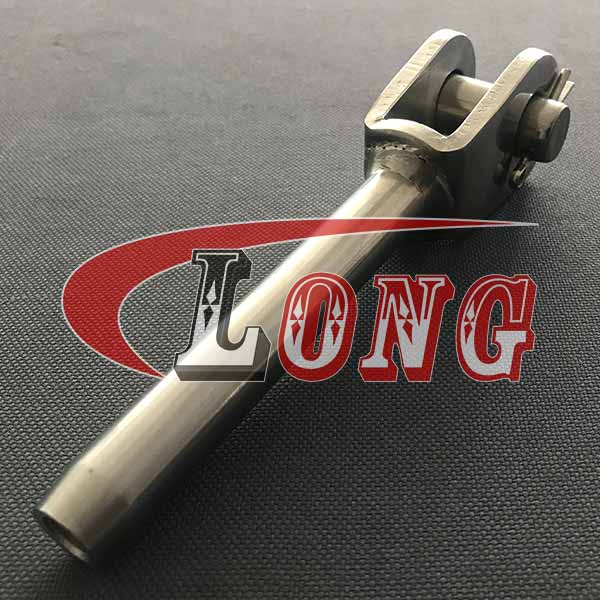

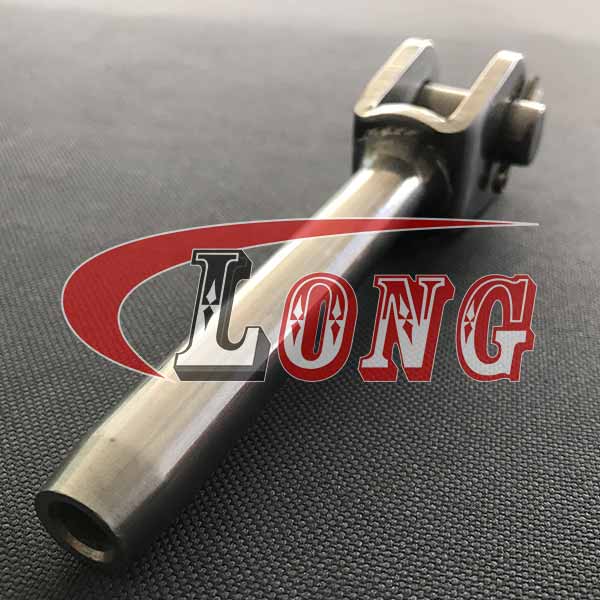

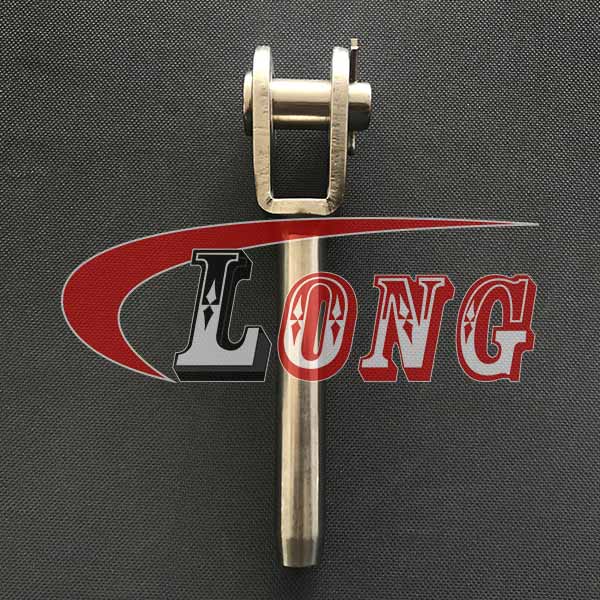

Stainless Steel Swage Jaw Terminal also called swage jaw terminal and swage socket.
This stainless steel swage jaw terminal is perfect for applications such as balustrade or suspended systems.
Stainless steel swage jaw socket,to fit, simply insert cable into the opening and swage using a hydraulic press.

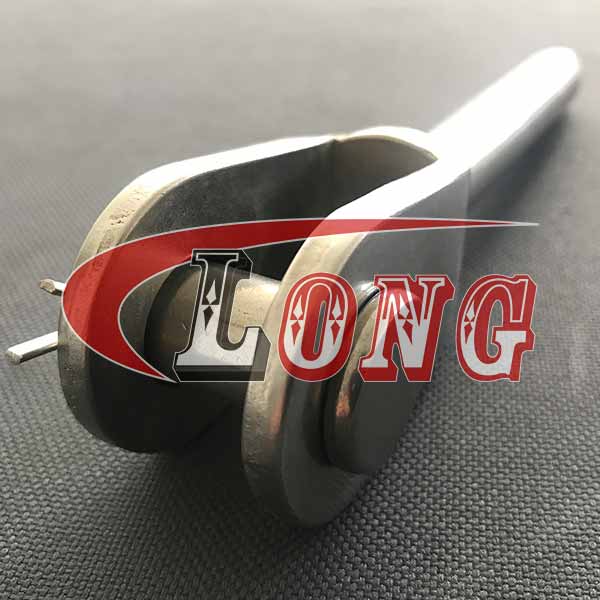

The clevis pin is removable will fit onto a suitably sized eye terminal or attachment point.
Swage jaw terminal is made of stainless steel 304/316,which is perfect for rust resistance and is very pleasing to the eye when used in public places.
Technical & Application
| Technical Notes | Swage Jaw Terminal conform to European Type |
| Processing | Welding / Stamping / machining |
| Finish | Highly Polishing |
| Size | 2mm , 2.5mm , 3mm , 3.2mm , 4mm , 5mm , 6mm , 7mm 8mm , 10mm , 12mm , 14mm , 16mm , 19mm , 22mm , 26mm |
| Tips | These need to be Hydraulically Crimped / Swaged onto your Steel Wire Rope. Removable Clevis Pin which is kept captive by a split ring. |
Specification

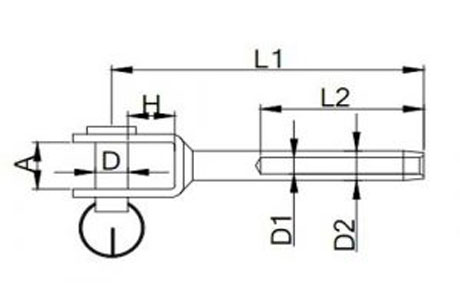

| Part No. | Wire (mm) | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L2 (mm) | L1 (mm) | KG/100 | B.L. (KG) |
| LG-SJter-02 | 2 | 5.5 | 4 | 8 | 2.2 | 5.5 | 24 | 55 | 2.4 | 500 |
| LG-SJter-2.5 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 24 | 55 | 2.4 | 500 |
| LG-SJter-03-1 | 3 | 8 | 5 | 10 | 3.3 | 6.35 | 28 | 55 | 2.5 | 800 |
| LG-SJter-03-2 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 32 | 65 | 3 | 1300 |
| LG-SJter-3.2 | 3.2 | 7.5 | 5 | 9 | 3.5 | 6.35 | 38 | 65 | 2 | 800 |
| LG-SJter-04-1 | 4 | 9 | 6 | 10 | 4.3 | 7.5 | 37 | 65 | 4 | 1300 |
| LG-SJter-04-2 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 40 | 77 | 4.7 | 2350 |
| LG-SJter-05-1 | 5 | 10 | 8 | 12 | 5.3 | 9 | 42 | 70 | 6.5 | 1300 |
| LG-SJter-05-2 | 5 | 12 | 9 | 14 | 5.3 | 9 | 57 | 88 | 7.4 | 2350 |
| LG-SJter-06-1 | 6 | 12 | 10 | 14 | 6.3 | 12.6 | 51 | 85 | 13.5 | 2350 |
| LG-SJter-06-2 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 63 | 106 | 16 | 4700 |
| LG-SJter-07 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 116 | 18 | 5100 |
| LG-SJter-08 | 8 | 17 | 16 | 26 | 8.4 | 16 | 85 | 145 | 40 | 7600 |
| LG-SJter-10 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 150 | 49 | 9800 |
| LG-SJter-12 | 12 | 23 | 19 | 35 | 12.6 | 20 | 105 | 195 | 64 | 13000 |
| LG-SJter-14 | 14 | 30 | 22 | 46.5 | 14.7 | 25 | 140 | 232 | 117 | 17000 |
| LG-SJter-16 | 16 | 30 | 25 | 49 | 16.9 | 28 | 160 | 264 | 154 | 24000 |
| LG-SJter-19 | 19 | 34 | 28 | 54 | 20 | 34.5 | 200 | 323 | 412 | 27000 |
| LG-SJter-22 | 22 | 40 | 32 | 62 | 23.2 | 40.5 | 230 | 350 | 570 | 31000 |
| LG-SJter-26 | 26 | 44 | 36 | 70 | 27.5 | 46 | 280 | 430 | 710 | 43000 |
Details – Stainless Steel Swage Jaw Terminal
Please note we supply a huge variety of stainless steel parts.
If you need help determining the right assembly or size for your application, e-mail our specialists at sales@lg-lifting.com for assistance. 🙂
