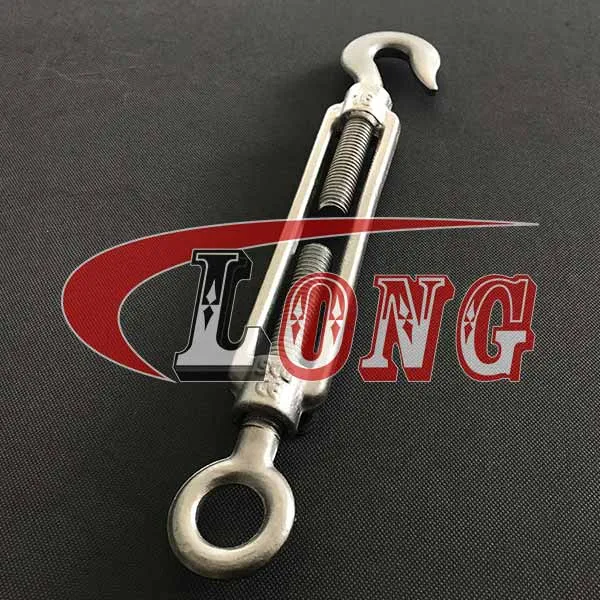

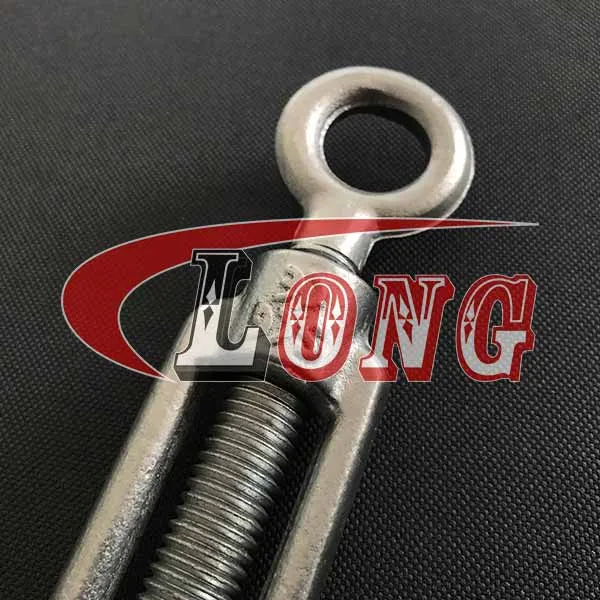

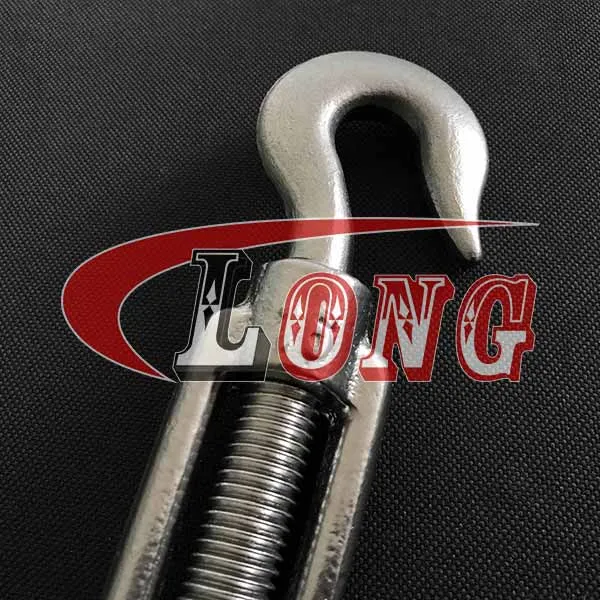

Information of LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook

Brand	LGRIG®
Standard	Casting turnbuckle Conform to DIN 1480
Material	Superior Mild Steel
Processing	Body: Casting. End Fittings: Forged.
Finish	Self-Colored, Zinc Plated
Size	M5, M6, M8, M10, M12, M16, M20
Country of Origin	China

Specifications of LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook

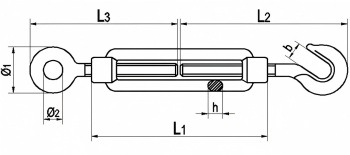

Part No.	Size	L1	h	L2	b	L3	Φ1	Φ2	W.L.L.	B.L.
Part No.	Size	mm							N
LGC1480EH05	M5	70	5	62	7	58	15	8	994.5	1491.75
LGC1480EH06	M6	110	6	87	8.5	80	19	9	1462.5	2193.75
LGC1480EH08	M8	110	8	95	11	84	24	11	2665	3997.5
LGC1480EH10	M10	125	9	118	13.5	105	31	15	4225	6337.5
LGC1480EH12	M12	125	11	125	15.5	115	35	17	6045	9067.5
LGC1480EH14	M14	140	13.5	140	18.5	121	36	18	8190	12285
LGC1480EH16	M16	170	14	164	20	150	48	22	11505	17257.5
LGC1480EH20	M20	200	17	196	21.5	163	52	24	17550	26325
LGC1480EH22	M22	220	19	214	26	185	60	27	22035	33052.5
LGC1480EH24	M24	255	21	236	26	205	66	27	25480	38220
LGC1480EH27	M27	255	22	250	29	216	71	34	35165	50115
LGC1480EH30	M30	255	23	264	29	230	71	31	40625	60937.5
LGC1480EH33	M33	255	25	292	36	253	81	39	50505	75757.5
LGC1480EH36	M36	295	28	319	44	270	95	43	59150	88725
LGC1480EH42	M42	330	32	390	48	300	113	48	–	–
