Stainless Steel Swivel Jaw & Jaw – China LG Supply
Description
Stainless Steel Swivel Jaw & Jaw,also known as jaw and jaw swivel.
This stainless steel chain swivel jaw and jaw end,made from stainless steel AISI304 or AISI316,perfect for corrosive environments.
Stainless steel swivel jaw and jaw connections with simple screw pin locking action, swivel rotation reduces the risk of chain or rope knotting.
Technical & Application
Material | Stainless Steel AISI304 or AISI316 |
Processing | Cast |
Finish | High Polished |
Size | 5mm,6mm,8mm,10mm,13mm,16mm,19mm |
Tips | Marine swivel fitting for connection into a mooring lines. Easy and convenient to use. |

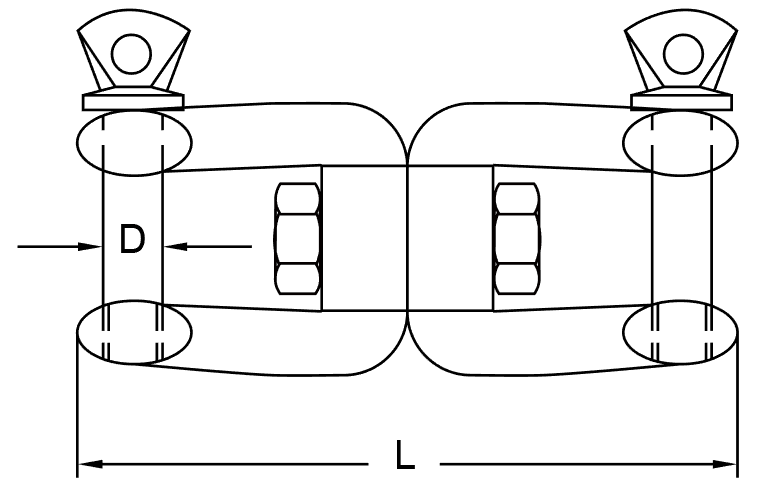

Specification – Stainless Steel Swivel Jaw & Jaw
Part No. | D | L | BL |
mm | mm | lbs | |
LGSSSJJ05 | 5 | 59 | 600 |
LGSSSJJ06 | 6 | 66 | 1350 |
LGSSSJJ08 | 8 | 94 | 2500 |
LGSSSJJ10 | 10 | 118 | 3500 |
LGSSSJJ13 | 13 | 152 | 6000 |
LGSSSJJ16 | 16 | 188 | 10800 |
LGSSSJJ19 | 19 | 229 | 16100 |
Also available in Galvanized Swivels Jaw & Jaw.
If you need help determining the right assembly or size for your application, e-mail our specialists at sales@lg-lifting.com for assistance. 🙂
