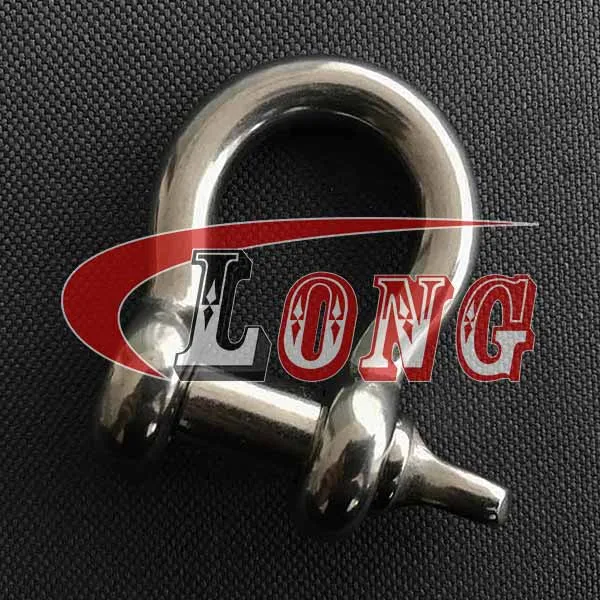

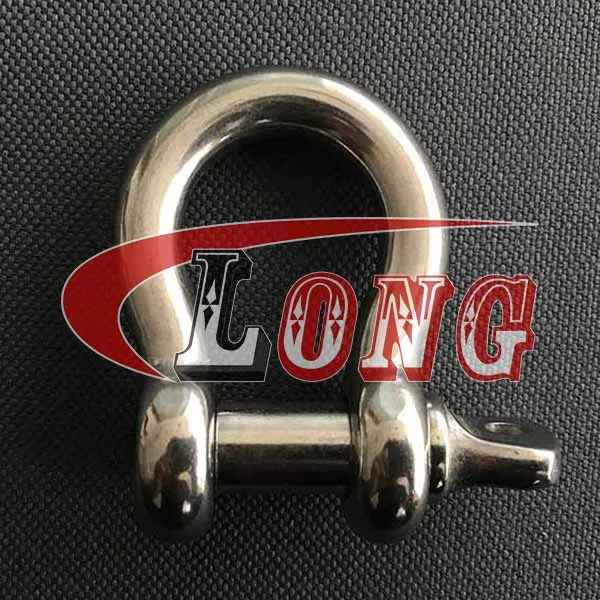

Stainless Steel Anchor Shackle Oversized Screw Pin G-209

Stainless Steel Anchor Shackle Oversized Screw Pin G-209, also known as stainless steel bow shackle, fitted with oversized collar pin.

Stainless steel screw pin anchor shackles are great for marine or high humidity applications. Our screw pin anchor shackle selection ranges in size from 3/16″ to 1-1/8″.

Shackles must always be inspected for wear, distortion and damage before use. If the pin or bow is worn, distorted or damaged, discard the shackle.

Stainless Steel Anchor Shackle Oversized Screw Pin, also known as bow shackle, have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.

The oversized screw pin configuration is best for use in applications that are temporary, or require repeated or quick connections and disconnections.

Stainless steel anchor shackle oversized screw pin US type. The shackles are marked in the imperial specification style of size (for the bow diameter).

This a stainless steel shackle, Not to be used for overhead lifting. AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

Anchor Shackle Oversized Screw Pin Stainless Steel G-209 meets the performance requirements of Federal Specification RR-C-271F Type IVA, Grade B, Class 2.

Working Load Limit permanently shown on every shackle.

Trawling Gear
Shackles
Boat Fittings

Information of Stainless Steel Anchor Shackle Oversized Screw Pin G-209

Technical Notes

Bow shackle conform to U.S. Federal Specification

Material

AISI 304/316

Processing

Free Forging / Stamping

Finish

Highly Polishing / Electrophoretic coating

Size

3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 9/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4″, 1-1/2″

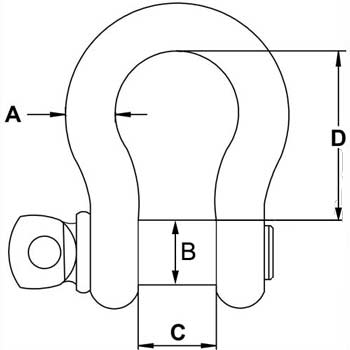

Specifications of Stainless Steel Anchor Shackle Oversized Screw Pin G-209

Specifications of Stainless Steel Anchor Shackle Oversized Screw Pin G-209


Part No.

A

B

C

D

Min.BL

in

KN

LG-SS-209-S-3/16

3/16

1/4

0.38

0.88

13.7

LG-SS-209-S-1/4

1/4

5/16

0.47

1.13

24.4

LG-SS-209-S-5/16

5/16

3/8

0.53

1.22

38.2

LG-SS-209-S-3/8

3/8

7/16

0.66

1.44

54.9

LG-SS-209-S-7/16

7/16

1/2

0.75

1.69

54.9

LG-SS-209-S-1/2

1/2

5/8

0.81

1.88

97.7

LG-SS-209-S-5/8

5/8

3/4

1.06

2.38

152.6

LG-SS-209-S-3/4

3/4

7/8

1.25

2.81

184.7

LG-SS-209-S-7/8

7/8

1

1.44

3.31

219.7

LG-SS-209-S-1/1

1

1-1/8

1.69

3.75

278.1

LG-SS-209-S-1-1/8

1-1/8

1-1/4

1.81

4.25

390.7

LG-SS-209-S-1-1/4

1-1/4

1-3/8

2.03

4.69

494.4

LG-SS-209-S-1-1/2

1-1/2

1-5/8

2.38

5.75

672.9

Do not exceed the working load limit.
Do not use for overhead lifting or hoisting.
