Information of LGRIG® B.S.3032 Small Bow Shackle with Screw Collar Pin

Brand	LGRIG®
Standard	Small Bow shackle conforms to B.S. 3032 table 4 - 1958
Material	Carbon Steel
Pin Type	Type A Screw Collar Pin
Shackle Type	Small Bow Shackle
Processing	Forged / Quenched and Tempered
Finish	Hot Dip Galvanized, Zinc Plated or Self Colored
Size	3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″
Notes	Working Load Limit Permanently Shown on Every Shackle.
Typical Applications	a.General lifting in off-shore applications. b.General lifting and tethering in leisure marine applications. c.General lifting purposes.

Specifications of LGRIG® B.S.3032 Small Bow Shackle with Screw Collar Pin

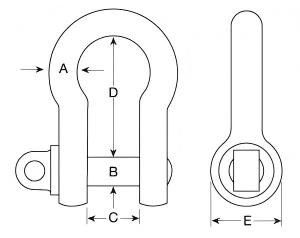

Part No.	A	B	C	D	E	Weight	SWL
Part No.	Inches	Inches	Inches	Inches	Inches	Kgs/Each	Tonns
LGBS3032SB3/8	3/8	1/2	5/8	1 5/8	1	0.18	0.5
LGBS3032SB1/2	1/2	5/8	7/8	2 1/8	1 1/4	0.34	1
LGBS3032SB5/8	5/8	3/4	1 1/8	2 3/4	1 1/2	0.65	1.5
LGBS3032SB3/4	3/4	7/8	1 3/8	3 3/8	1 3/4	1.08	2
LGBS3032SB7/8	7/8	1	1 5/8	3 7/8	2	1.8	3
LGBS3032SB1	1	1 1/8	1 3/4	4 1/4	2 1/4	2.46	4
LGBS3032SB11/8	1 1/8	1 1/4	2	4 7/8	2 1/2	3.47	5
LGBS3032SB11/4	1 1/4	1 3/8	2 1/4	5 3/8	2 3/4	4.56	6.25
LGBS3032SB13/8	1 3/8	1 1/2	2 1/2	6	3	6.07	7.5
LGBS3032SB11/2	1 1/2	1 3/4	2 3/4	6 5/8	3 1/2	8.35	9.25
LGBS3032SB15/8	1 5/8	1 7/8	3	7 3/8	3 3/4	11.81	10.5
