PVC Fishing Net Floats for Commercial Fishing–LG RIGGING®

PVC Float for commercial fishing,manufactured from PVC closed foamed plastic,can be used in water and underwater.


The elasticity of the materials used means it can be easily and securely fitted, without having to overcomplicate matters or adding further weight due to conventional Velcro straps/webbing.


PVC float ball is a traditional product, widely used in fishing, shallow sea aquaculture and other industries.


PVC fishing net float is strong corrosion resistance, smooth surface, not easy to adhere to Marine algae organisms, with a strengthening ring at both ends to increase wear resistance, light weight, high buoyancy, cost-effective.


We can make them in shape of cylindrical, spherical, oblate, bullet shaped etc, widely used in the fishing, trawling and aquaculture, as well as for decorative, protective, isolation, floating, marking, etc.

Trawling Gear
Shackles
Boat Fittings

Information of PVC Fishing Net Floats for Commercial Fishing–China LG™

Material

PVC

Finish

Yellow, white red or the other color you want

Size

233×243×40mm,225×230×30mm,180×210×30mm,175×200×30mm,140×190×25mm


130×180×25mm,125×170×25mm,115×170×22mm,102×147×20mm

225×230×30mm,175×200×30mm,140×190×28mm,130×180×25mm,125×170×25mm

127×177×25mm,125×175×24mm

125×178×22mm,115×170×22mm,110×150×24mm,91×135×18mm,94×138×20mm

105×150×20mm,85×145×20mm,75×130×12mm,65×100×12mm,41×79×10mm

80×165×16mm,91×50×20mm,80×40×16mm,50×60×10mm,60×40×10mm

46×166×9mm,33×55×9mm,64×64×10mm,67×44×37mm

195×368×35mm,165×380×30mm,157×360×31mm,145×285×30mm,180×175×22mm

148×205×24mm,64×84×260mm,40×65×200mm,34×56×178mm

210×140×30mm,155×105×25mm,200×120×32mm,148×100×25mm,148×100×24mm

110×170×22mm,90×150×20mm,70×110×20mm,67×108×12mm,65×65×12mm

82×82×12mm,48×96×10mm,40×140×10mm,35×60×9mm,48×72×10mm

50×43×9mm,24×38×6mm,32×54×9mm

90×50×20mm,75×40×15mm,60×35×10mm,82×45×16mm,70×35×12mm

60×30×9mm,80×38×15mm,70×32×13mm,60×29×10mm,50×27×9mm

41×23×8mm,37×22×7mm

Φ190×30mm,Φ110×20mm,Φ95×15mm,Φ85-90×15mm,Φ80-85×12mm

Φ70-75×12mm,Φ60×10mm,Φ35×10mm


Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™

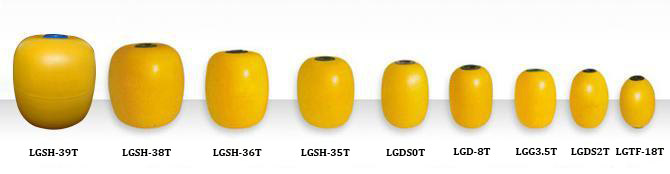

Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

LGSH-39T

233×243×40

874

8000

2100

S.S

PVC

LGSH-38T

225×230×30

868

7000

2250

S.S

PVC

LGSH-36T

180×210×30

470

4000

3850

S.S

PVC

LGSH-35T

175×200×30

470

3300

4500

S.S

PVC

LGDS0T

140×190×25

234

2100

7000

S.S

PVC

LGD-8T

130×180×25

210

1900

8250

S.S

PVC

LGG3.5T

125×170×25

194

1400

9500

S.S

PVC

LGDS2T

115×170×22

164

1100

13000

S.S

PVC

LGTF-18T

102×147×20

92

800

17500

S.S

PVC

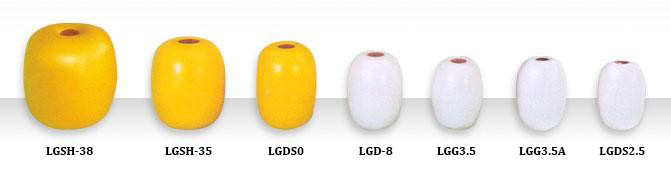

Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

LGSH-38

225×230×30

820

7000

2250

S.S

PVC

LGSH-35

175×200×30

422

3300

4500

S.S

PVC

LGDS0

140×190×28

210

2100

7000

S.S

PVC

LGD-8

130×180×25

186

1900

8250

S.S

PVC

LGG3.5

125×170×25

170

1400

9500

S.S

PVC

LGG3.5A

127×177×25

170

1650

9000

S.S

PVC

LGDS2.5

125×175×24

150

1400

9000

S.S

PVC

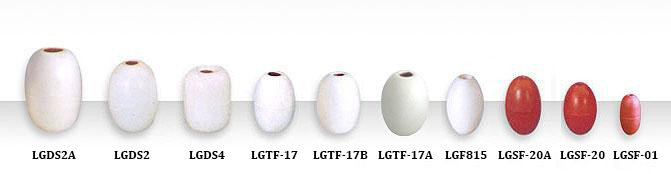

Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

LGDS2A

125×178×22

150

1550

10400

S.S

PVC

LGDS2

115×170×22

150

1100

13000

S.S

PVC

LGDS4

110×150×24

142

1050

13000

S.S

PVC

LGTF-17

91×135×18

77

570

23000

S.S

PVC

LGTF-17B

94×138×20

77

650

21600

S.S

PVC

LGTF-17A

105×150×20

77

650

18000

S.S

PVC

LGF815

85×145×20

79

510

22500

S.S

PVC

LGSF-20A

75×130×12

46

330

39000

S.S

PVC

LGSF-20

65×100×12

23

190

75000

S.S

PVC

LGSF-01

41×79×10

11

68

190000

S.S

PVC


Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

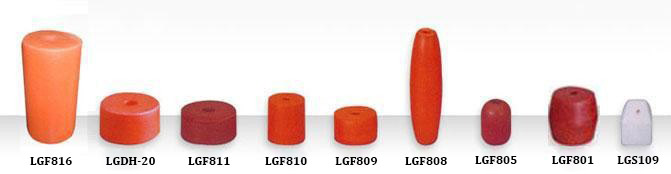

LGF816

80×165×16

85

680

19000

S.S

PVC

LGDH-20

91×50×20

25

290

48000

S.S

PVC

LGF811

80×40×16

22

175

76000

S.S

PVC

LGF810

50×60×10

13

102

170000

S.S

PVC

LGF809

60×40×10

11

88

150000

S.S

PVC

LGF808

46×166×9

26

160

85000

S.S

PVC

LGF805

33×55×9

5

35

380000

S.S

PVC

LGF801

64×64×10

22

145

90000

S.S

PVC

LGS109

67×44×37

24

58

165000

M.D.S

PVC

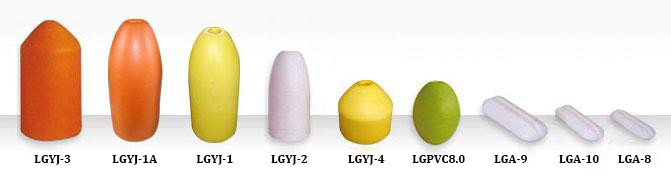

Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

LGYJ-3

195×368×35

950

8150

2153

S.S

PVC

LGYJ-1A

165×380×30

633

6500

2600

S.S

PVC

LGYJ-1

157×360×31

615

5500

2650

S.S

PVC

LGYJ-2

145×285×30

385

3150

4600

S.S

PVC

LGYJ-4

180×175×22

380

3300

4500

S.S

PVC

LGPVC8.0

148×205×24

227

2100

6750

S.S

PVC

LGA-9

64×84×260

105

820

22000

S.S

PVC

LGA-10

40×65×200

38

285

74400

S.S

PVC

LGA-8

34×56×178

38

135

93600

S.S

PVC


Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

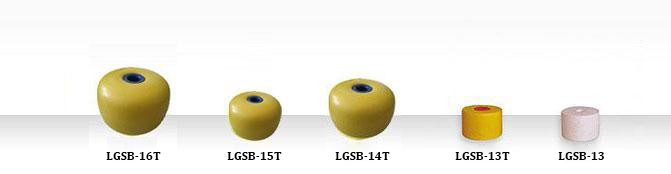

LGSB-16T

210×140×30

414

3350

5100

S.S

PVC

LGSB-15T

155×105×25

183

1680

11520

S.S

PVC

LGSB-14T

200×120×32

362

3200

5670

S.S

PVC

LGSB-13T

148×100×25

183

1600

11880

S.S

PVC

LGSB-13

148×100×24

159

1600

11880

S.S

PVC


Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

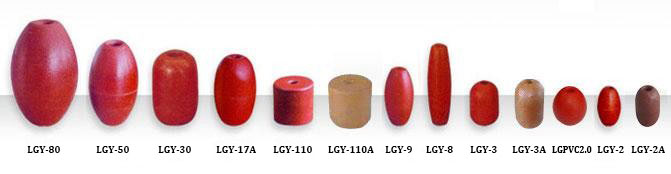

LGY-80

110×170×22

152

950

13300

M.D.S

PVC

LGY-50

90×150×20

111

490

21600

M.D.S

PVC

LGY-30

70×110×20

35

270

42000

S.S

PVC

LGY-17A

67×108×12

81

185

63000

D.S

PVC

LGY-110

65×65×12

50

160

80000

D.S

PVC

LGY-110A

82×82×12

50

352

36000

M.D.S

PVC

LGY-9

48×96×10

36

95

107500

D.S

PVC

LGY-8

40×140×10

26

105

107500

S.S

PVC

LGY-3

35×60×9

13

35

316000

D.S

PVC

LGY-3A

48×72×10

13

73

80000

S.S

PVC

LGPVC2.0

50×43×9

11

30

312000

S.S

PVC

LGY-2

24×38×6

3

7

1250000

D.S

PVC

LGY-2A

32×54×9

3

25

400000

S.S

PVC

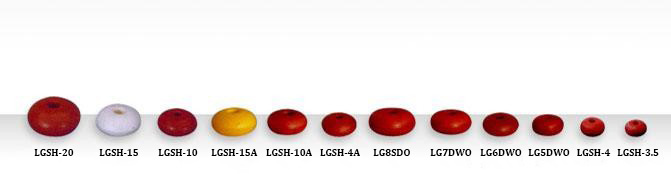

Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

LGSH-20

90×50×20

23

190

72000

S.S

PVC

LGSH-15

75×40×15

12

110

148000

S.S

PVC

LGSH-10

60×35×10

8

60

222000

S.S

PVC

LGSH-15A

82×45×16

12

160

73000

S.S

PVC

LGSH-10A

70×35×12

8

85

150000

S.S

PVC

LGSH-4A

60×30×9

4.7

50

225000

S.S

PVC

LG8SDO

80×38×15

23

120

95000

M.D.S

PVC

LG7DWO

70×32×13

23

75

180000

M.D.S

PVC

LG6DWO

60×29×10

13

46

225000

M.D.S

PVC

LG5DWO

50×27×9

8

32

370000

M.D.S

PVC

LGSH-4

41×23×8

6

20

700000

D.S

PVC

LGSH-3.5

37×22×7

5

15

800000

D.S

PVC


Specifications of PVC Fishing Net Floats for Commercial Fishing–China LG™


Part No.

Sepcification(mm)


OD×H×HD(±5%)

Weight(g)
(±10%)

Buoyancy(g)
(±10%)

Pcs/20’GP

Use Sea

Material

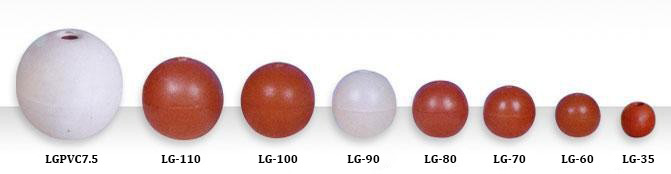

LGPVC7.5

Φ190×30

354

3100

4500

S.S

PVC

LG-110

Φ110×20

69

580

16500

S.S

PVC

LG-100

Φ95×15

36

400

25500

S.S

PVC

LG-90

Φ85-90×15

29

300

33000

S.S

PVC

LG-80

Φ80-85×12

29

230

52500

S.S

PVC

LG-70

Φ70-75×12

15

160

72000

S.S

PVC

LG-60

Φ60×10

11

90

133000

S.S

PVC

LG-35

Φ35×10

2

18

600000

S.S

PVC


Bulk Photos of PVC Fishing Net Floats for Commercial Fishing–China LG™

bulk photos of pvc fishing net floats for commercial fishingchina lg
bulk photos of pvc fishing net floats for commercial fishingchina lg 2
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
