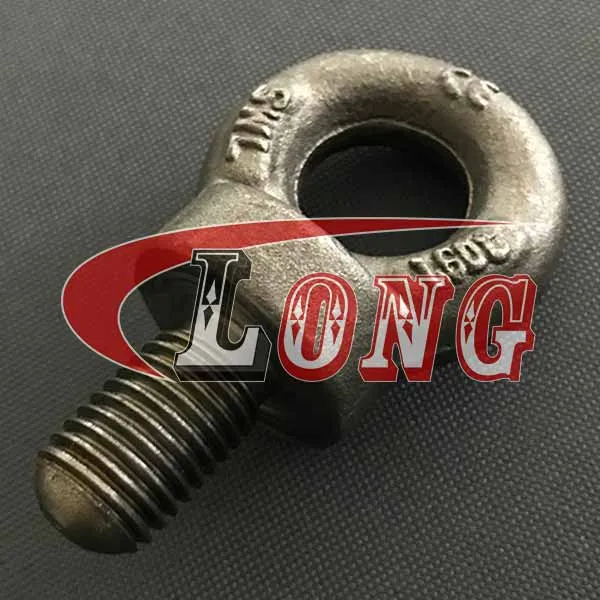

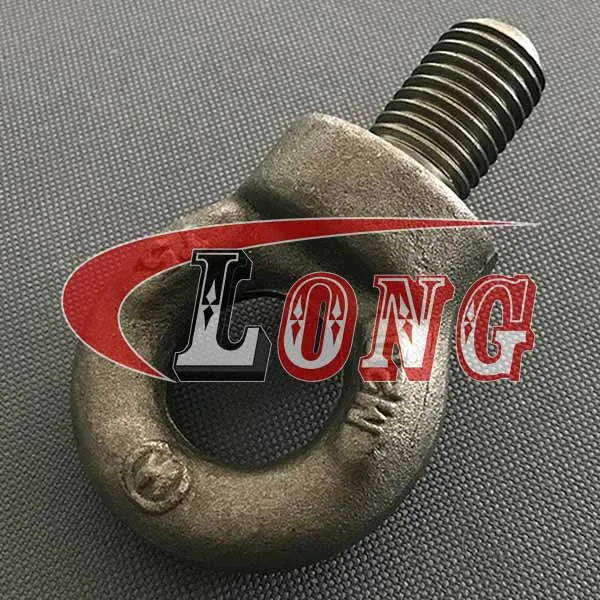

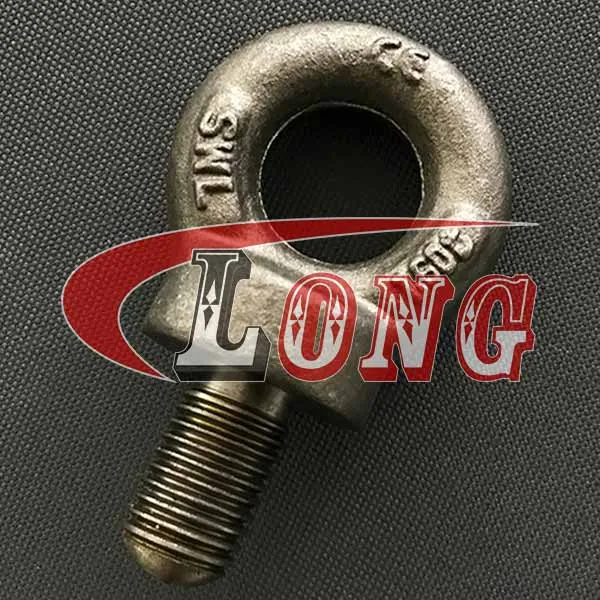

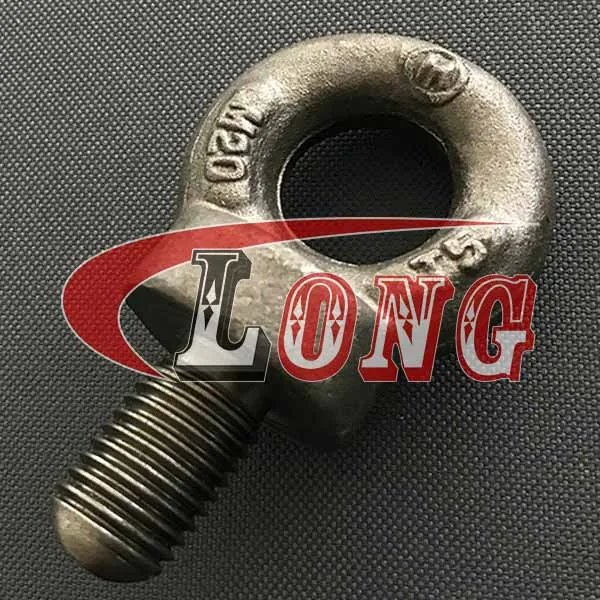

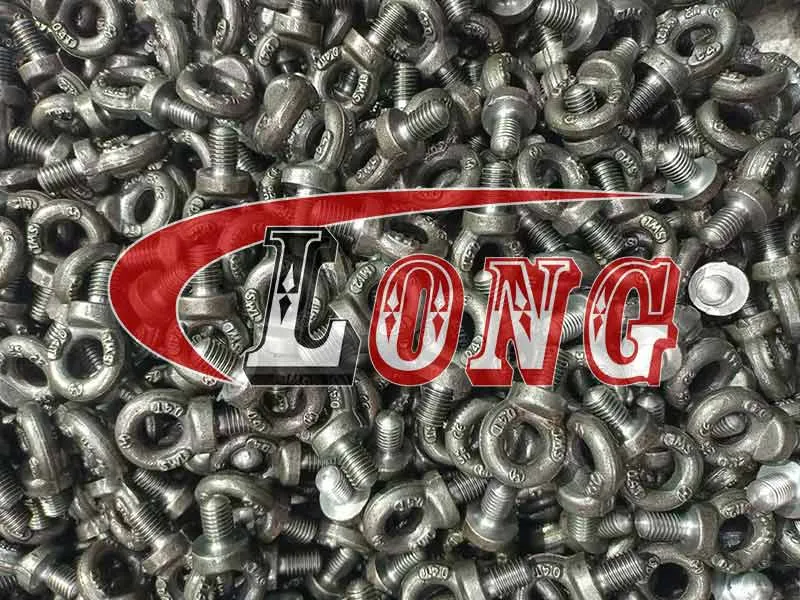

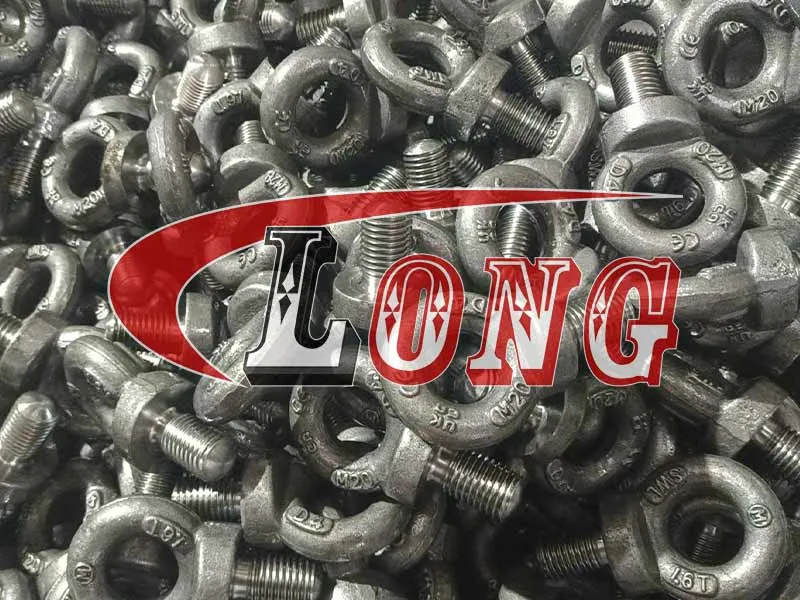

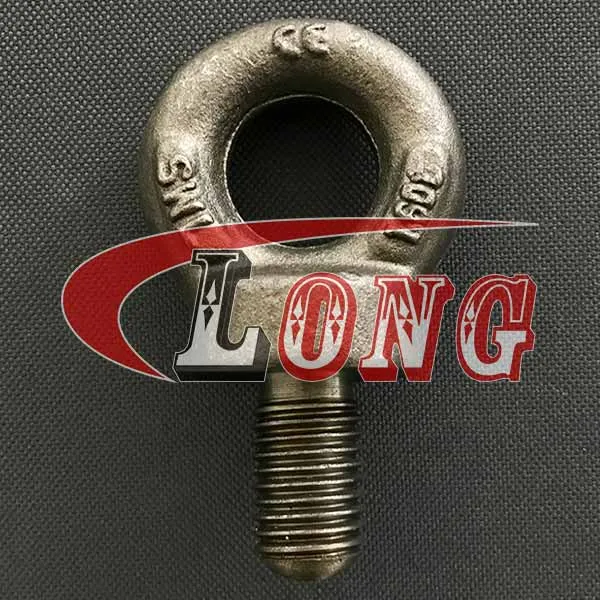

Metric Collared Eyebolt BS 4278 Table 1

Metric Collared Eyebolt BS 4278 Table 1 also called eye bolt metric collared, conforms to BS 4278 Table-1.

Collared eye bolt made of high tensile steel 1045, been forged and Electric galvanized or Self-colored, very durable.

Our Metric Collared Eyebolts are available in sizes ranging from M6 to M64 to fit every project.

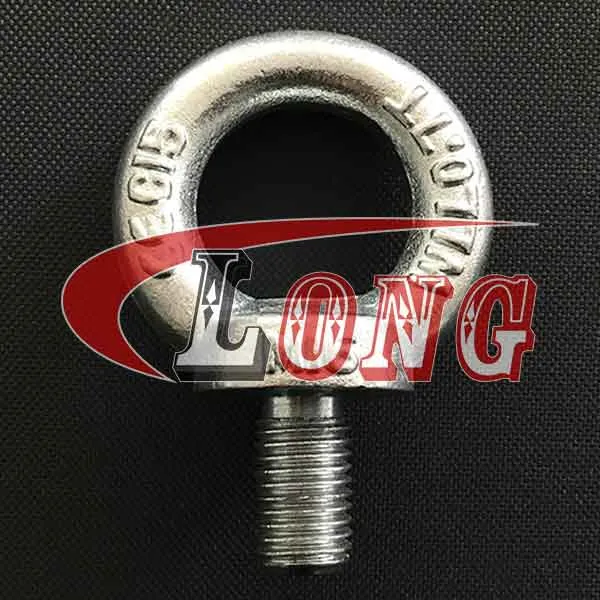

Collared eyebolts have a smaller internal diameter than DIN580 Eyebolts but with a greater capacity and a shackle connection, the collared eyebolt is a better solution.

Please note that our BS 4278 Table-1 metric collared eyebolts’ MBL equals 5 x SWL.

Trawling Gear
Boat Fittings

Information of Metric Collared Eyebolt BS 4278 Table 1

Material

High Tensile Steel 1045

Processing

Forged + Machining + Quenched and Tempered

Finish

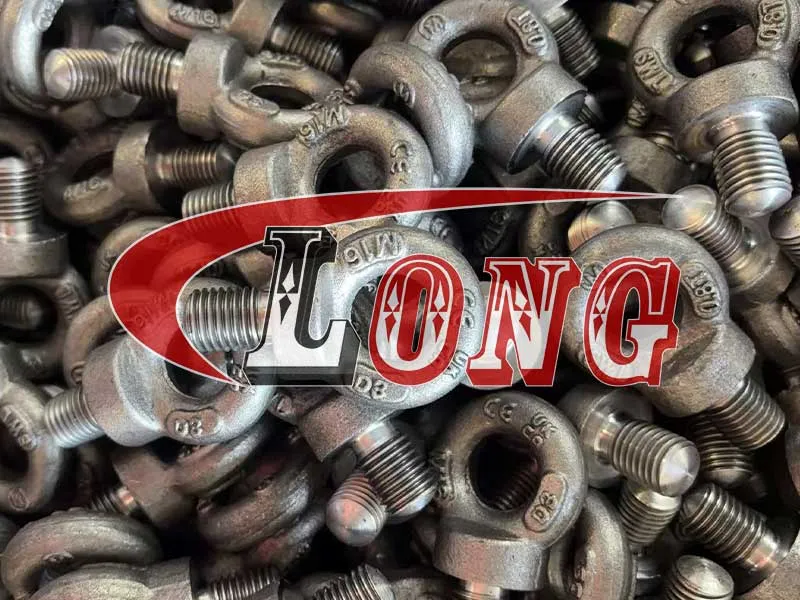

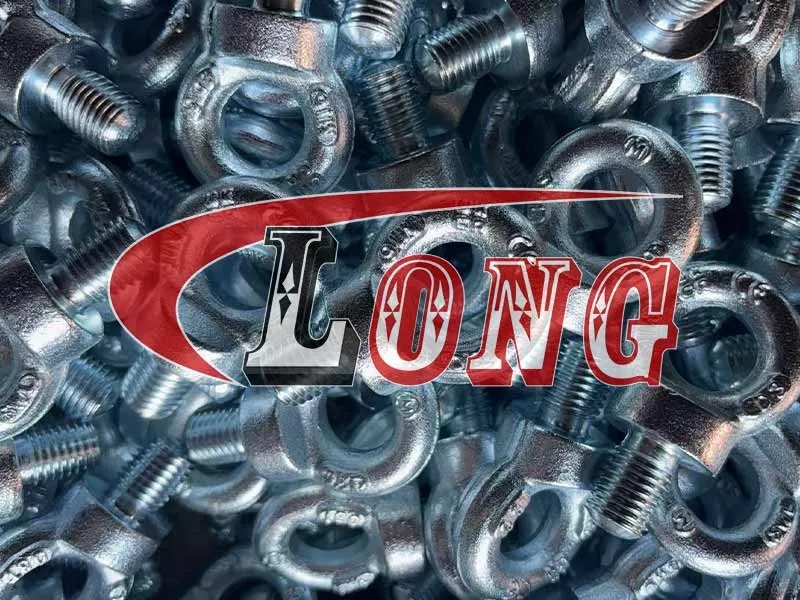

Self-color / Electric Galvanized

Size

6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 27mm

30mm, 33mm, 36mm, 39mm, 42mm, 45mm, 48mm, 52mm, 56mm, 64mm

Marking

Size, WLL& CE.

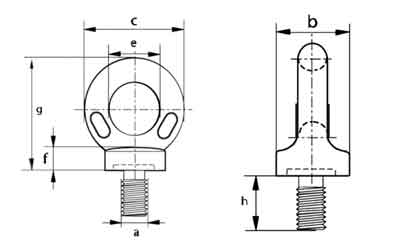

Specifications of Metric Collared Eyebolt BS 4278 Table 1

Specifications of Metric Collared Eyebolt BS 4278 Table 1


Part No.

SWL

Dia.


Thread

Dia.


Base

Dia.


Eye

Dia.


Eye

thickness
collar

height

Thread
length

Weight
each

outside

inside

a

b

c

e

f

g

h

t

mm

kg

LG-4278-T1-S-06

0.1

6

22

33

15

7

36

18

0.06

LG-4278-T1-S-08

0.15

8

22

33

15

7

36

18

0.06

LG-4278-T1-S-10

0.25

10

22

33

15

7

36

18

0.06

LG-4278-T1-S-12

0.4

12

22

33

15

7

36

18

0.06

LG-4278-T1-S-14

0.5

14

29

44

20

10

48

23

0.15

LG-4278-T1-S-16

0.8

16

29

44

20

10

48

23

0.15

LG-4278-T1-S-18

1

18

36

52

24

12

58

28

0.27

LG-4278-T1-S-20

1.6

20

40

59

27

14

65

32

0.38

LG-4278-T1-S-22

1.6

22

45

64

30

14

73

35

0.54

LG-4278-T1-S-24

2.5

24

52

77

35

17

84

40

0.85

LG-4278-T1-S-27

2.5

27

58

85

39

20

94

46

1.13

LG-4278-T1-S-30

4

30

65

96

44

22

106

51

1.62

LG-4278-T1-S-33

4

33

72

106

48

24

117

56

2.37

LG-4278-T1-S-36

6.3

36

81

118

54

27

131

63

3.12

LG-4278-T1-S-39

6.3

39

86

123

57

29

137

67

3.81

LG-4278-T1-S-42

8

42

101

148

68

34

164

79

6.27

LG-4278-T1-S-45

8

45

101

148

68

34

164

79

6.45

LG-4278-T1-S-48

10

48

101

148

68

34

164

79

6.51

LG-4278-T1-S-52

12.5

52

115

168

76

38

186

89

9.58

LG-4278-T1-S-56

16

56

128

188

86

43

208

100

12.99

LG-4278-T1-S-64

20

64

144

212

96

48

234

112

18.2
