Stainless Steel Rigging Screw Machined Fork JIS Type

Stainless Steel Rigging Screw Machined Fork JIS Type, also known as Closed Body Turnbuckle or pipe body turnbuckle.

Rigging screw is closed type, has one through hole on the body centre.

This turnbuckle rigging screw has jaw and jaw end, this jaw also called machined fork, it’s full machined.

Stainless Steel Rigging Screw Machined Fork & Fork is highly resistant to corrosive environments.

Both fork ends have cast or full machined one-piece fork ends. The bottle-screw body is closed and made of solid stainless steel AISI 316.

Stainless steel closed body turnbuckle is used primarily in the marine rigging and rigging industry to connect wire ropes together or connect wire rope to a fixed anchor point.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Steel Turnbuckle European Type Eye and Eye
Stainless Steel Commercial Turnbuckle European Type
Stainless Steel Turnbuckle European Type Eye & Hook
Stainless Steel Turnbuckle European Type Jaw & Jaw
Stainless Steel Rigging Screw Jaw & Jaw
Stainless Steel Rigging Screw Jaw to Swage Stud
Stainless Steel Rigging Screw Swage Stud & Swage Stud
Stainless Steel Rigging Screw Body-LG RIGGING®
Rigging Screw Toggle & Toggle Stainless Steel
Stainless Steel Rigging Screw Toggle & Swage Stud
Stainless Steel Rigging Screw Machined Fork JIS Type

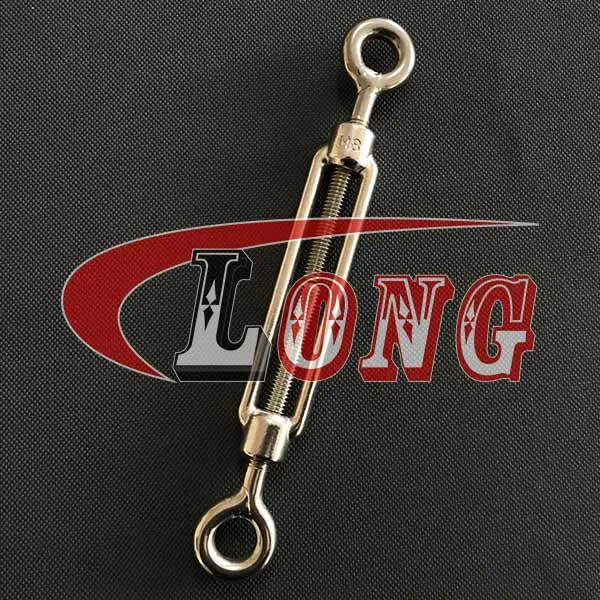

DIN 1480 Turnbuckle Stainless Steel Eye & Eye
Turnbuckle DIN 1480 Stainless Steel Hook & Hook

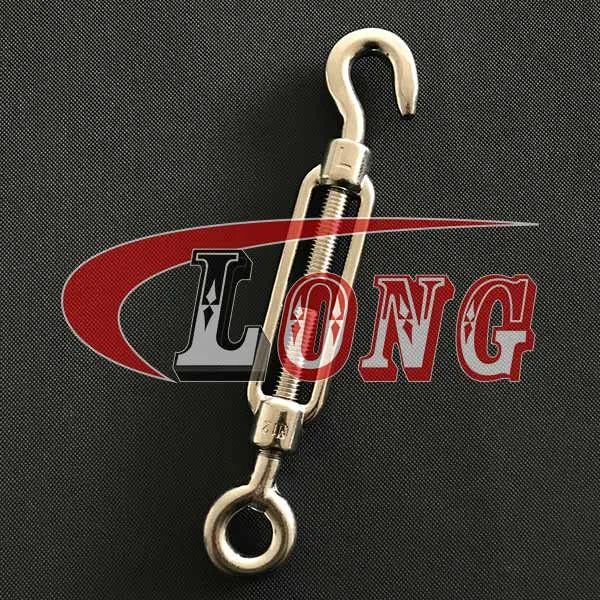

Stainless Steel Turnbuckle DIN 1480 Eye-Hook
Stainless Steel Turnbuckle Body US Type
Stainless Steel Eye and Eye Turnbuckle US Type
Stainless Steel Turnbuckle Eye and Hook US Fed Spec
Hook&Hook Turnbuckle Stainless Steel US Type
Jaw and Eye Turnbuckle US Type Stainless Steel
Stainless Steel Turnbuckle Jaw & Jaw, US Spec.
Stainless Steel Turnbuckle JIS Standard, Eye & Hook
Stainless Steel Korean Type Turnbuckle Eye & Eye
Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle
Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
Stainless Steel Drop Forged Jaw & Jaw Turnbuckle US Type for Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Stainless Steel Rigging Screw Machined Fork JIS Type

Material

AISI316 Stainless Steel rigging screw

Size

M4  M5  M6  M8  M10  M12  M14  M16  M20  M22  M24  M27  M30  M36 turnbuckel rigging screw

Processing

Body: Reduced Tube / Machining

Fork: Full Machining / Cast

Finish

Highly Polishing

Tips

Corrosion Resistant


Specifications of Stainless Steel Rigging Screw Machined Fork JIS Type

Specifications of Stainless Steel Rigging Screw Machined Fork JIS Type


Part No.

Thread Size

A (mm)

D (mm)

H (mm)

L1 (mm)

L2 (mm)

KG/100

B.L.KG.

LG-SSRS-FF-4

M4

5.5

4

8

115

175

4

500

LG-SSRS-FF-5

M5

6.5

5

10

135

195

6

800

LG-SSRS-FF-6

M6

7.5

6

10

160

230

10.5

1250

LG-SSRS-FF-8

M8

11

8

11

180

255

21

2350

LG-SSRS-FF-10

M10

12

9

14

210

300

35.5

3500

LG-SSRS-FF-12

M12

14

12

20

270

380

66

5100

LG-SSRS-FF-14

M14

15

12

22

295

415

74

5900

LG-SSRS-FF-16

M16

17

16

26

340

480

150

8000

LG-SSRS-FF-20

M20

20

19

30

370

520

320

13000

LG-SSRS-FF-22

M22

22

22

35

455

635

850

17000

LG-SSRS-FF-24

M24

25

25

38

530

760

1150

20000

LG-SSRS-FF-27

M27

30

28

41

580

810

1800

25500

LG-SSRS-FF-30

M30

35

32

52

655

915

2610

31000

LG-SSRS-FF-36

M36

35

35

52

695

970

3340

43000


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Turnbuckle

Stainless Steel Turnbuckle JIS Standard, Eye & Hook
Stainless Steel Turnbuckle JIS Standard, Eye & Hook
Hook&Hook Turnbuckle Stainless Steel US Type
Hook&Hook Turnbuckle Stainless Steel US Type
Jaw and Eye Turnbuckle US Type Stainless Steel
Jaw and Eye Turnbuckle US Type Stainless Steel
Stainless Steel Rigging Screw Jaw & Jaw
Stainless Steel Rigging Screw Jaw & Jaw
Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle
Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle
Stainless Steel Turnbuckle European Type Jaw & Jaw
Stainless Steel Turnbuckle European Type Jaw & Jaw
China LG RIGGING's Updates
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble
25
Apr
2024
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble Learn More
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study
18
Apr
2024
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study Learn More
How to Properly Use a Rope Thimble: a Step-by-Step Guide
11
Apr
2024
How to Properly Use a Rope Thimble: a Step-by-Step Guide Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
