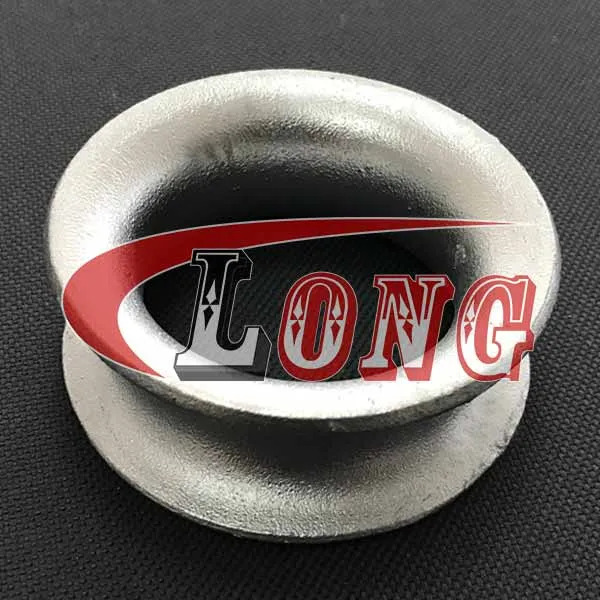

Name: Round Rope Thimble
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Wire Ropes Clips & Grips 

Eye Bolts & Nuts 

Forged Hooks 

Wire Rope 

Chain Binders 

Forged Rings & Connector 

Lever Hoist 

Lifting Sling of Lifting & Rigging 

Shackles 

Quick Links 

Snap Hooks 

Wire Rope Thimbles 

 Wire Rope Thimble Galvanized STG Type-LG RIGGING®

 Wire Rope Tubular Thimble Galvanized SCMG Type-LG RIGGING®

 Wire Rope Thimble European Commercial Type

 Heavy Duty Wire Rope Thimble US Type

 Galvanized Wire Rope Thimble Light Duty US Type

 Galvanized Wire Rope Thimble DIN 6899 A

 DIN 6899 B Galvanized Wire Rope Thimble

 BS464 Galvanised Wire Rope Thimble HDG EN13411-1 DIN3090

 Wire Rope Thimble AS1138

 DIN 3091 Cast Solid Wire Rope Thimble

 Heavy Duty Wire Rope Thimble K2-B

 Wire Rope Thimble K3-B with Ear&Master Link

 Round Rope Thimble

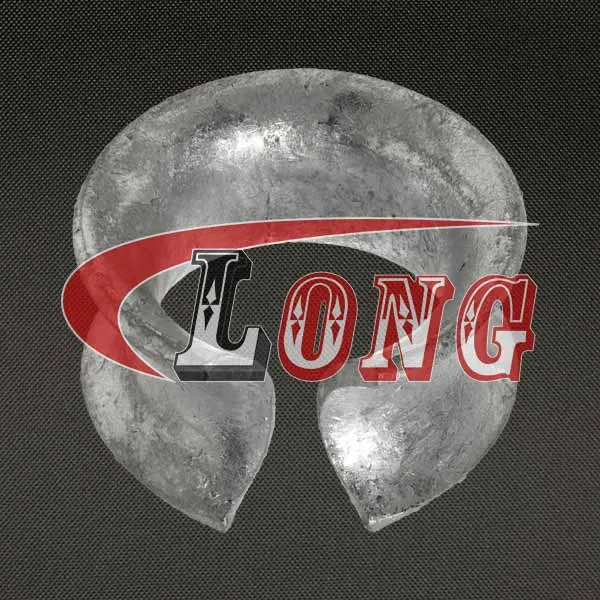

 Galvanized Manila Rope Thimble

 JIS Standard Wire Rope Thimble

 Synthetic Rope Thimble Galvanized

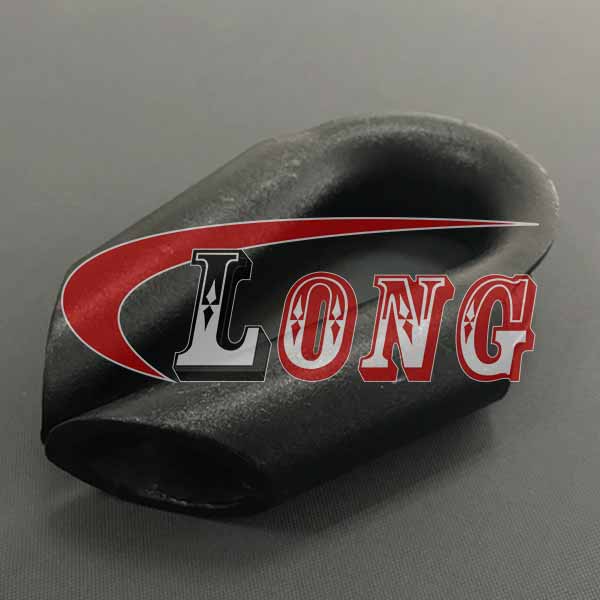

 Tubular Thimble G2 Type for Trawling and Fishing of Wire Rope Thimbles

 Tubular Thimble Galvanized without Gusset of Wire Rope Thimbles

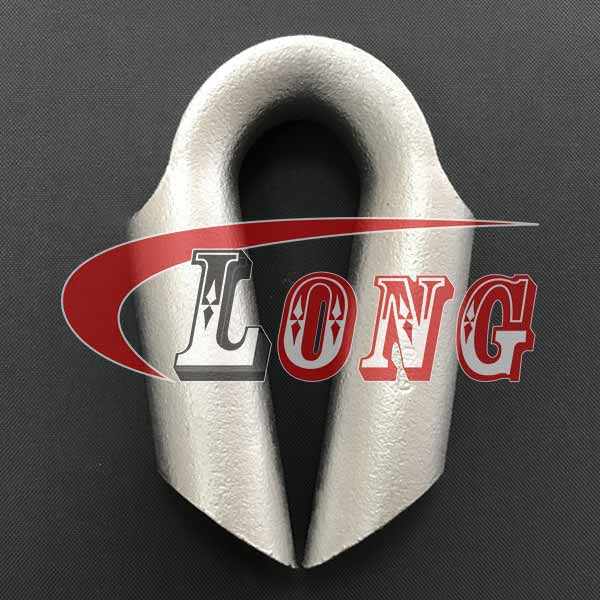

 Tubular-Tube Thimble Galvanized Super Big Size of Wire Rope Thimbles

 Tubular Thimble SCG Type of Wire Rope Thimbles

 K2 Heavy Duty Stub-End Thimble of Wire Rope Thimbles

 K3 Fibre Rope Thimble of Wire Rope Thimbles

 Galvanized Superloop Thimble Type K15 of Wire Rope Thimbles

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Swivels 

Chains & Accessories 

Ratchet Straps 

Wire Rope Sleeves/Ferrules 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

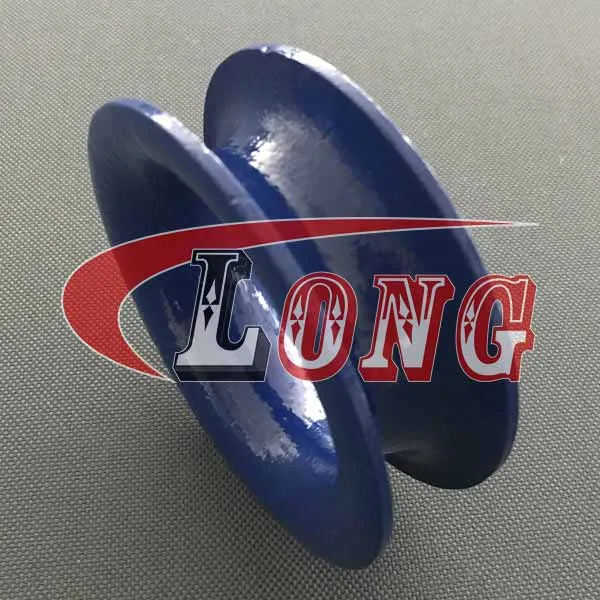

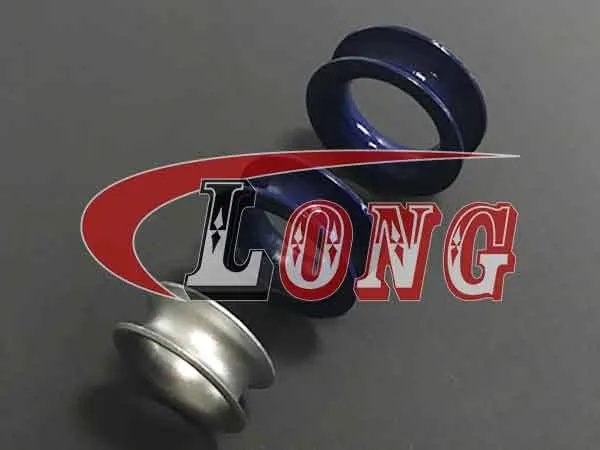

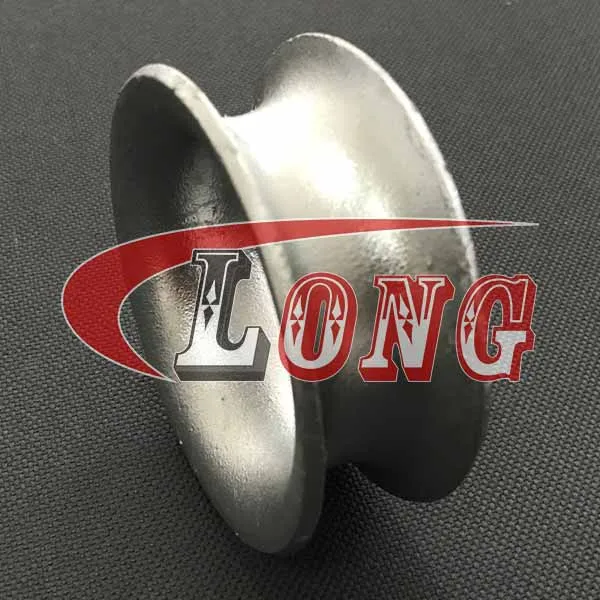

Information of Round Rope Thimble

Material	Superior Mild Steel
Finish	Hot Dipped Galvanized / Powder Coated
Size	8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm 24mm, 26mm, 28mm, 30mm, 32mm, 35mm, 40mm
Note	NOT FOR LIFTING PURPOSES

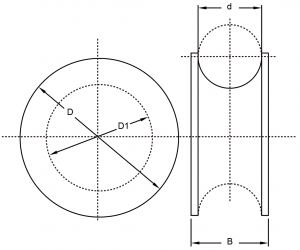

Specifications of Round Rope Thimble

Part No.	Size	B	D	D1
Part No.	mm	mm	mm	mm
LG-RTb-08	8	11	22	12
LG-RTb-10	10	13	28	16
LG-RTb-12	12	15	34	18
LG-RTb-14	14	17	38	20
LG-RTb-16	16	19	42	23
LG-RTb-18	18	21	50	26
LG-RTb-20	20	23	55	28
LG-RTb-22	22	25	60	30
LG-RTb-24	24	27	65	34
LG-RTb-26	26	30	70	36
LG-RTb-28	28	32	75	40
LG-RTb-30	30	34	80	42
LG-RTb-32	32	36	86	44
LG-RTb-35	35	41	92	48
LG-RTb-40	40	46	105	55
