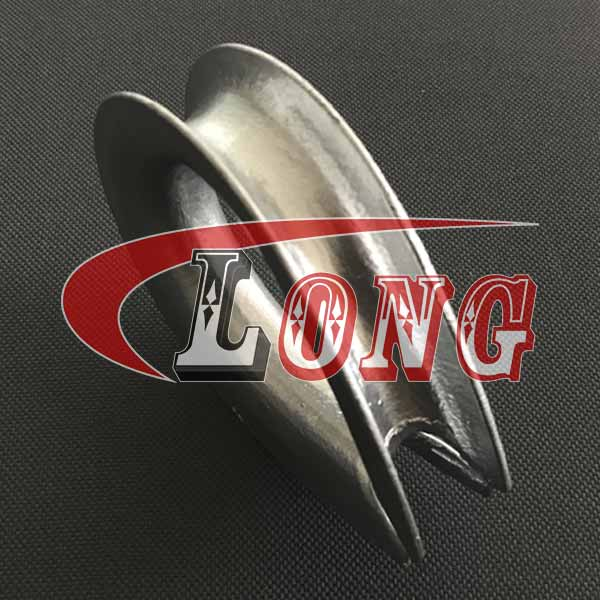

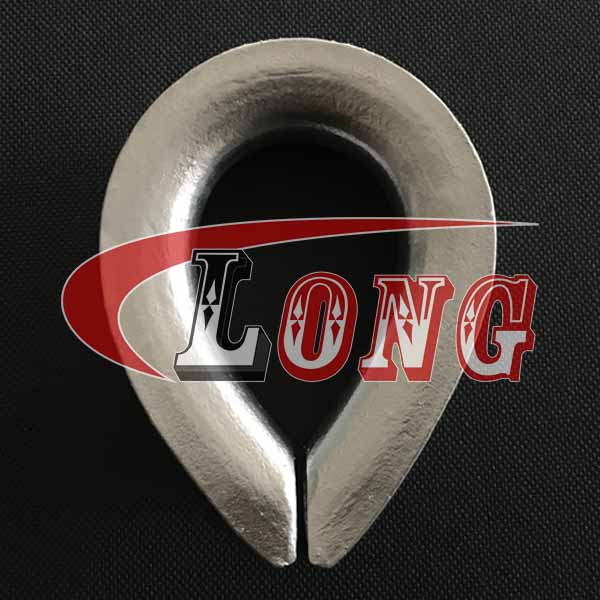

Name: BS464 Thimble for Wire Rope HDG EN13411-1 DIN3090
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

 Wire Rope Thimble European Commercial Type

 Heavy Duty Thimble fo Wire Rope US Type

 Wire Rope Thimble Light Duty US Type Galvanized

 Wire Rope Thimble DIN 6899 A Type Galvanized

 DIN 6899 B Type Wire Rope Thimble Galvanized

 BS464 Thimble for Wire Rope HDG EN13411-1 DIN3090

 Wire Rope Thimble AS1138

 Tubular Thimble Galvanized without Gusset of Wire Rope Thimbles

 Tubular Thimble G2 Type for Trawling and Fishing of Wire Rope Thimbles

 Tubular-Tube Thimble Galvanized Super Big Size of Wire Rope Thimbles

 Tube Thimble with Gusset Galvanized STG Type -LG RIGGING®

 Tubular Thimble SCG Type of Wire Rope Thimbles

 Tubular Thimble with Gusset Galvanized SCMG Type -LG RIGGING®

 Synthetic Rope Thimble Galvanized

 Round Rope Thimble

 Manila Rope Thimble Galvanized

 DIN 3091 Solid Thimble for Wire Rope Casting

 JIS Standard Wire Rope Thimble

 K2 Heavy Duty Stub-End Thimble of Wire Rope Thimbles

 Heavy Duty Wire Rope Thimble K2-B

 Wire Rope Thimble K3-B with Ear&Master Link

 K3 Fibre Rope Thimble of Wire Rope Thimbles

 Galvanized Superloop Thimble Type K15 of Wire Rope Thimbles

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of BS464 Galvanised Wire Rope Thimble HDG EN13411-1 DIN3090

Technical Notes	to BS 464 – Table 1 – 1958 / EN13411-1 / DIN3090
Material	Super Carbon Steel
Finish	Hot Dipped Galvanized
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 7/8”, 15/16”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, 1-7/8”, 2”
Note	NOT FOR LIFTING PURPOSES

Specifications of BS464 Galvanised Wire Rope Thimble HDG EN13411-1 DIN3090


Part No.	Diameter Rope	Width Groove	Length	Length Inside	Width Inside	Thickness Back	Weight/100
Part No.	inch	a mm	b mm	c mm	d mm	e mm	kg
LG-BS464-Tb-1/4	1/4	6	48	30	20	3.5	5.4
LG-BS464-Tb-5/16	5/16	8	54	33	22	4	5.7
LG-BS464-Tb-3/8	3/8	10	64	38	25	4.8	7.6
LG-BS464-Tb-7/16	7/16	13	73	41	29	4.8	14.2
LG-BS464-Tb-1/2	1/2	14	80	44	32	5.6	18
LG-BS464-Tb-9/16	9/16	15	80	44	32	5.6	18.9
LG-BS464-Tb-5/8	5/8	17	98	59	41	7.9	34
LG-BS464-Tb-11/16	11/16	19	108	67	44	7.9	39.7
LG-BS464-Tb-3/4	3/4	20	124	73	51	9.5	62.4
LG-BS464-Tb-7/8	7/8	23	133	83	57	9.5	75.6
LG-BS464-Tb-15/16	15/16	25	146	92	64	10.3	106
LG-BS464-Tb-1/1	1	27	162	108	70	10.3	125
LG-BS464-Tb-1-1/8	1-1/8	29	178	111	76	12.7	151
LG-BS464-Tb-1-1/4	1-1/4	33	197	133	95	12.7	204
LG-BS464-Tb-1-3/8	1-3/8	38	229	152	105	15.9	318
LG-BS464-Tb-1-1/2	1-1/2	41	254	165	114	17.5	488
LG-BS464-Tb-1-5/8	1-5/8	46	254	165	114	17.5	499
LG-BS464-Tb-1-3/4	1-3/4	51	286	178	127	25.4	556
LG-BS464-Tb-1-7/8	1-7/8	60	318	191	133	28.6	740
LG-BS464-Tb-2/1	2	64	330	203	140	28.6	799
