Information of Pear Shaped Spring Snap Hook Stainless Steel

Material	Stainless Steel pear shaped spring snap hook
Finish	High Polished
Size	5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm, 10x100mm, 11x120mm, 12x140mm
Tips	Fast, easy attachment for permanent or temporary connection.

Specifications of Pear Shaped Spring Snap Hook Stainless Steel

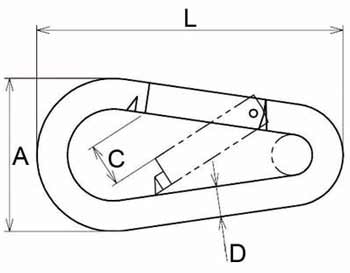

Part No.	Size	A	C	D	L	W.L.L	N.W.
Stainless Steel	mm					lbs	kgs/100pcs
LG-SH-P-5×50	5×50	25	7	5	50	100	1.7
LG-SH-P-6×60	6×60	30	8	6	60	140	2.5
LG-SH-P-7×70	7×70	35	8	7	70	200	4.4
LG-SH-P-8×80	8×80	40	9	8	80	250	6.6
LG-SH-P-9×90	9×90	45	10	9	90	280	9.3
LG-SH-P-10×100	10×100	50	11	10	100	400	13
LG-SH-P-11×120	11×120	57	16	11	120	500	18.5
LG-SH-P-12×140	12×140	67	19	12	140	600	25
