Information of LGRIG® BS3032 Small Dee Shackle with Type A Screw Collar Pin

Brand	LGRIG®
Standard	Small Dee shackle conforms to B.S. 3032 table 1 - 1958
Pin Type	Type A Screw Collar Pin
Shackle Type	Small Dee Shackle
Materila	Carbon Steel
Processing	Forged / Quenched and Tempered
Finish	Hot Dip Galvanized, Zinc Plated or Self Colored
Size	1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″
Notes	Working Load Limit Permanently Shown on Every Shackle.
Typical Applications	a.General lifting in off-shore applications. b.General lifting and tethering in leisure marine applications. c.General lifting purposes.

Specifications of LGRIG® BS3032 Small Dee Shackle with Type A Screw Collar Pin

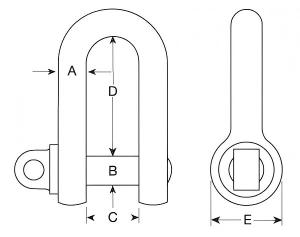

Part No.	A	B	C	D	E	Weight	SWL
Part No.	Inches	Inches	Inches	Inches	Inches	Kgs/Each	Tonns
LGBS3032SD1/4	1/4″	3/8	3/8	7/8	3/4	0.06	0.3
LGBS3032SD3/8	3/8″	1/2	5/8	1.375	1	0.15	0.6
LGBS3032SD1/2	1/2	5/8	7/8	1.875	1.25	0.33	1
LGBS3032SD5/8	5/8	3/4	1	2.25	1.5	0.61	1.75
LGBS3032SD3/4	3/4	7/8	1.25	2.75	1.75	0.93	2.5
LGBS3032SD7/8	7/8	1	1.375	3.25	2	1.8	3.5
LGBS3032SD1	1	1.125	1.5	3.625	2.25	2.15	4.5
LGBS3032SD11/8	1-1/8	1.25	1.75	4.125	2.5	3.02	5.5
LGBS3032SD11/4	1-1/4	1.375	1.875	4.5	2.75	4.2	7
LGBS3032SD13/8	1-3/8	1.5	2.125	5	3	5.34	8
LGBS3032SD11/2	1-1/2	1.75	2.375	5.5	3.5	8.36	10.75
