Closed Body Turnbuckle Jaw&Jaw Rigging Screw – LG RIGGING®

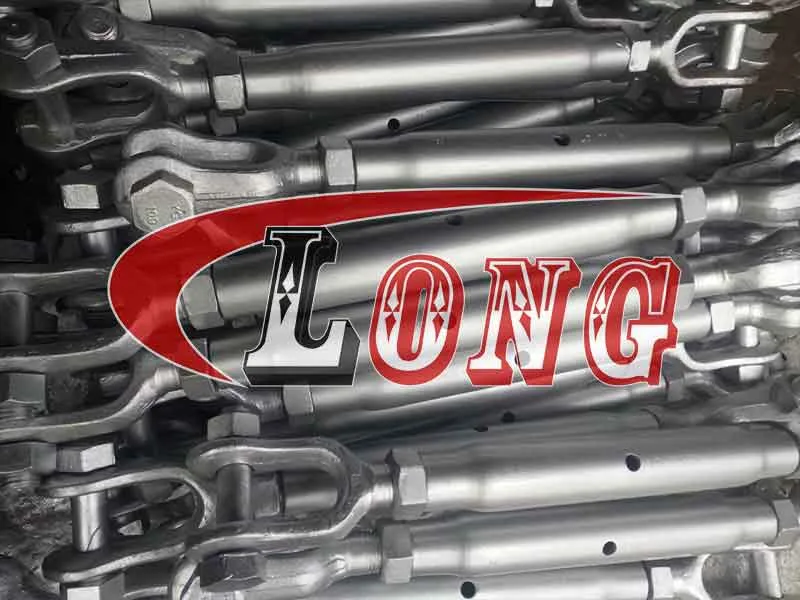

Closed Body Turnbuckle Jaw&Jaw, also known as pipe body turnbuckle or rigging screw.

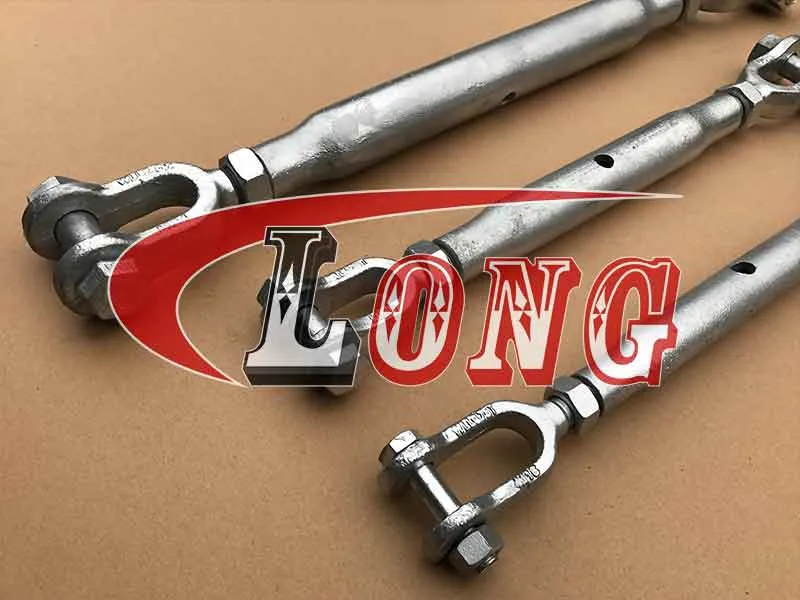

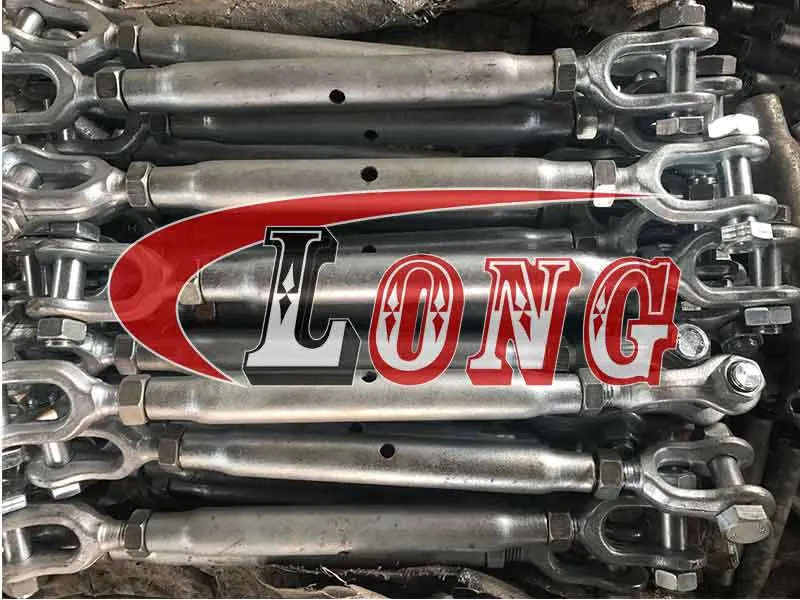

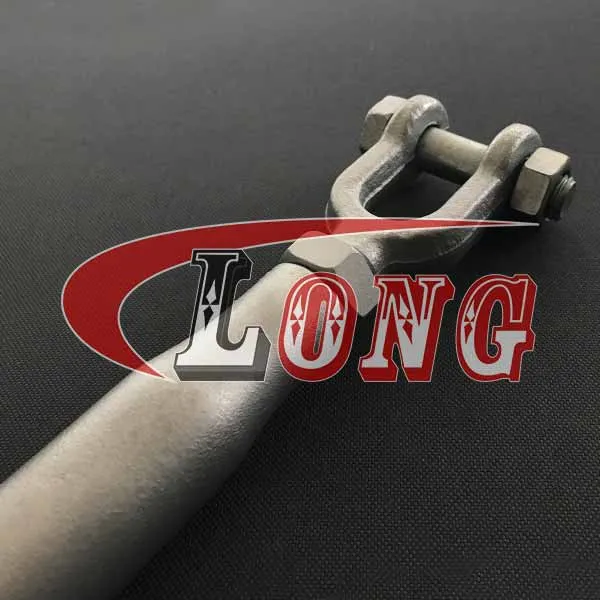

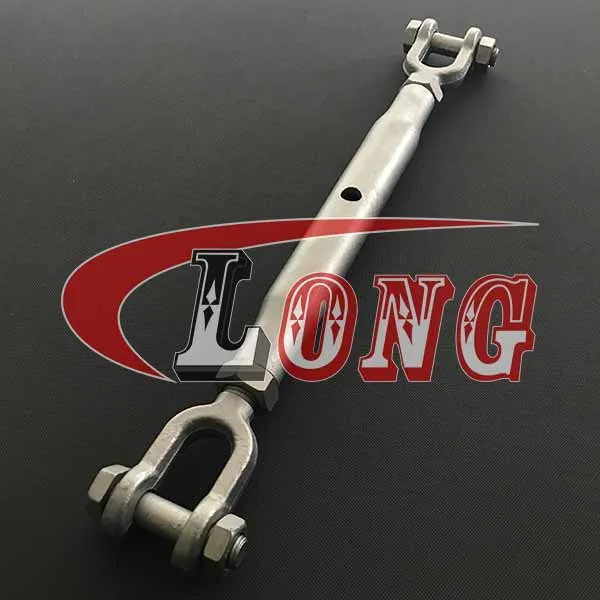

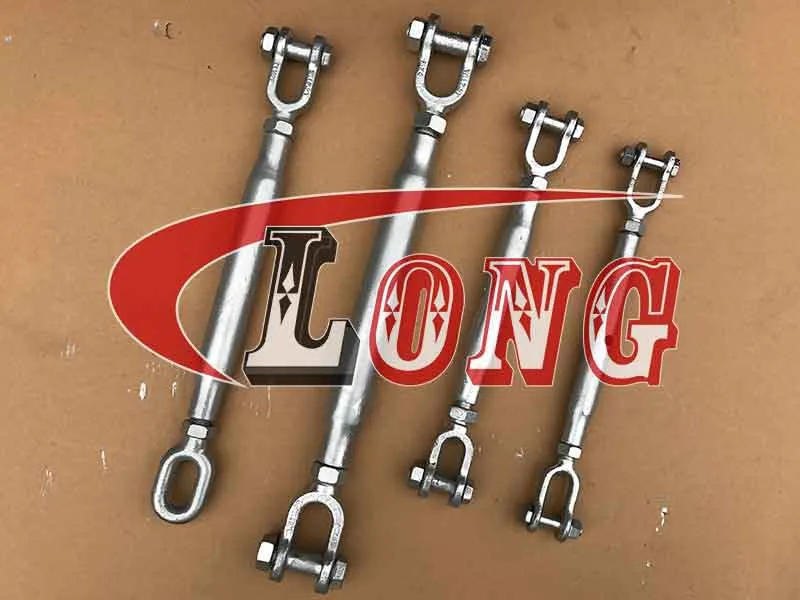

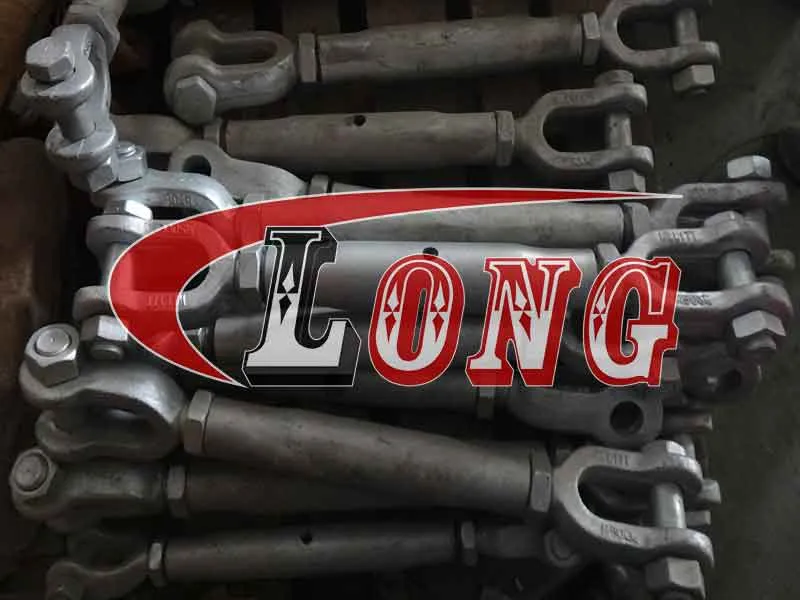

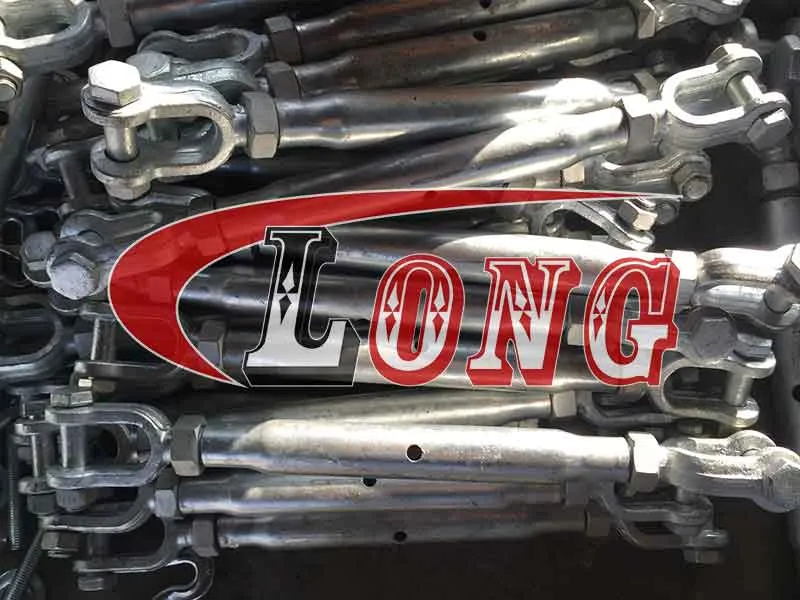

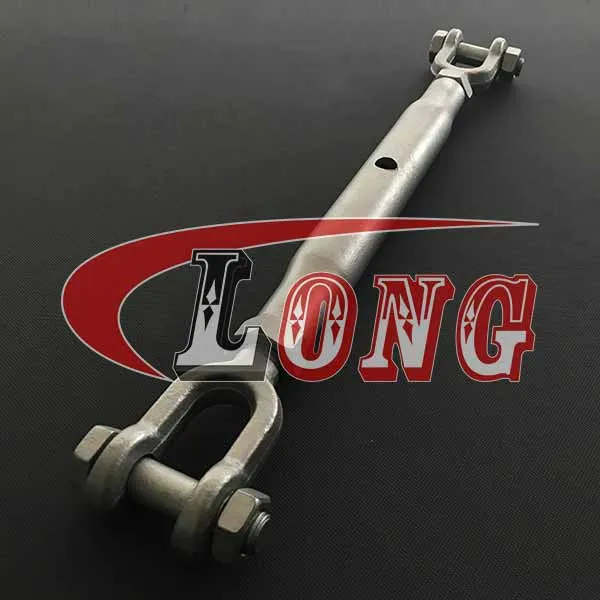

Jaw & Jaw closed body turnbuckle, great for architecture or marine rigging. Sight holes are provided in the bodies to verify adequate thread engagement.

Rigging screw jaw-jaw, manufactured using superior grade raw material as per international qualitative standards.

Our range of pipe turnbuckle fork&fork is available in standard M6, M8, M10, M12, M16, M20, M22, M24, M28, M32, M36, M38, M45, M50 as well as customized sizes.

Trawling Gear
Boat Fittings

Information of Closed Body Turnbuckle Jaw&Jaw Rigging Screw – China LG™

Material

Body: Cold-drawn Seamless Steel tube C1020

Jaw: C1045/C1020

Size

M6 M8 M10 M12 M16 M20 M22 M24 M28 M32 M36 M38 M45 M50

Safe Factor

Proof Load is 2.5 times Working Load Limit.

Ultimate Load is 5 times the Working Load Limit

Processing

Quenched and Tempered

Finish

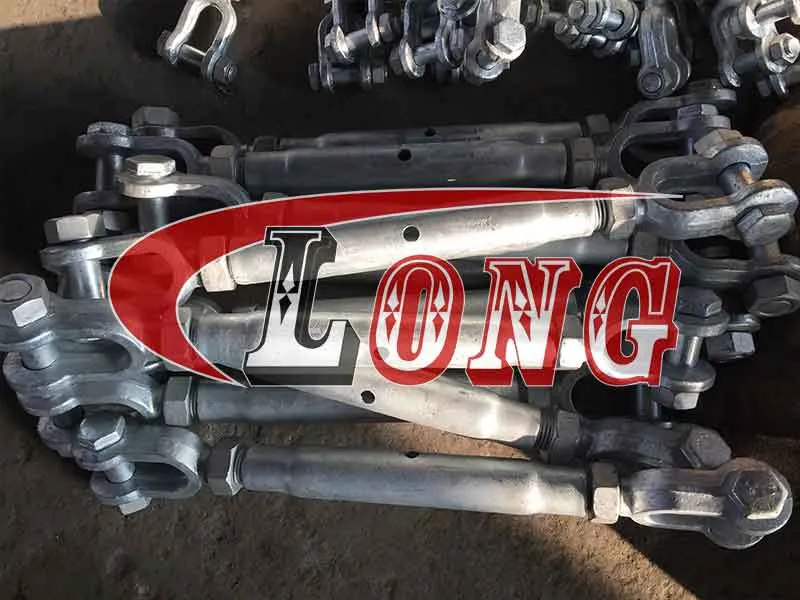

Hot Dip Galvanized / Electric Galvanized / Self-Colored

Important Notes

Straight or in-line pull only

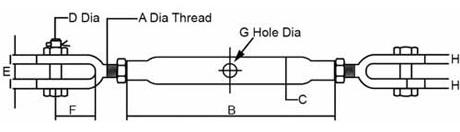

Specifications of Closed Body Turnbuckle Jaw&Jaw Rigging Screw – China LG™

Specifications of Closed Body Turnbuckle Jaw&Jaw Rigging Screw – China LG™


Part No.

Size

SWL

A

B

C

JAW

Unit Weight

Screw Dia.


(mm)

Length of Body


(mm)

Body Dia.


(mm)

Hole Dia.

Pin Dia.

Inside

Thickness

Length

Width

G

(mm)

D

(mm)

F

(mm)

E

(mm)

H

(mm)

Tons

kgs

LG-CBT-JJ-06

M6

0.1

6

102

12

3

5

15

7

6

0.11

LG-CBT-JJ-08

M8

0.15

8

110

15

4

6

16

9

6

0.23

LG-CBT-JJ-10

M10

0.375

10

152

21

5

8

21

11

8

0.28

LG-CBT-JJ-12

M12

0.5

12

175

27

6

10

25

13

9

0.8

LG-CBT-JJ-16

M16

0.75

16

229

27

10

12

40

18

9

1.4

LG-CBT-JJ-20

M20

1.2

20

229

33

12

16

45

20

11

2

LG-CBT-JJ-22

M22

1.6

22

305

33

15

18

48

24

13

3.5

LG-CBT-JJ-24

M24

2

24

325

42

16

22

65

28

14

4

LG-CBT-JJ-28

M28

2.8

28

356

48

18

22

59

30

14

4.5

LG-CBT-JJ-32

M32

3.75

32

381

48

20

27

62

34

18

6.5

LG-CBT-JJ-36

M36

4.25

36

381

60

22

28

68

38

18

8

LG-CBT-JJ-38

M38

5

38

406

60

24

33

74

42

20

11

LG-CBT-JJ-45

M45

7.2

45

406

70

24

35.5

110

50

22

*

LG-CBT-JJ-50

M50

10

50

406

76

26

40.5

120

55

24

*
