Bow Shackle Stainless Steel Square Head Pin

Bow Shackle Stainless Steel Square Head Pin, also called anchor shackle or Trawling Shackle.


Anchor shackle stainless steel with square head pin, conform to European type, the technical processing is forging and stamping.


Stainless steel bow shackle with square head pin, made from AISI304 or AISI316 stainless steel, the surface finish is highly polished.


Stainless steel trawling bow shackle are an excellent accessory that can be used for various applications, commonly used in the marine industry for trawling purposes.

Trawling Gear
Shackles
Boat Fittings

Information of Bow Shackle Stainless Steel Square Head Pin

Technical Notes

Square head pin bow shackle conform to European Type

Material

Stainless steel AISI 304/316 shackle

Processing

Forged / Stamping

Finish

Highly Polishing / Electrophoretic coating

Size

4mm, 5mm, 6mm , 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm

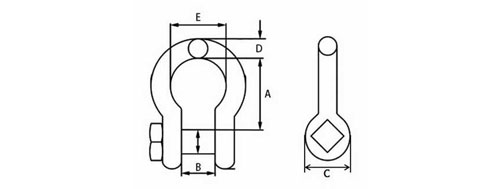

Specifications of Bow Shackle Stainless Steel Square Head Pin

Specifications of Bow Shackle Stainless Steel Square Head Pin


Part No.

Size

A

B

C

D

E

WLL

mm

LG-SS-BS-SHP-04

4

16

8

8

4

14

50

LG-SS-BS-SHP-05

5

19

10

10

5

16

80

LG-SS-BS-SHP-06

6

25

12

12

6

20

100

LG-SS-BS-SHP-08

8

32

16

16

8

24

200

LG-SS-BS-SHP-10

10

38

20

20

10

28

320

LG-SS-BS-SHP-12

12

48

24

24

12

36

520

LG-SS-BS-SHP-14

14

50

28

28

14

38

700

LG-SS-BS-SHP-16

16

55

32

32

16

10

800

LG-SS-BS-SHP-18

18

62

36

36

18

43

990

LG-SS-BS-SHP-20

20

68

40

40

20

46

1100

LG-SS-BS-SHP-22

22

82

44

44

22

56

1500

LG-SS-BS-SHP-25

25

95

50

50

25

68

2100

LG-SS-BS-SHP-28

28

108

56

56

28

74

3000

LG-SS-BS-SHP-32

32

120

64

64

32

84

3500

LG-SS-BS-SHP-36

36

135

72

72

36

92

4600


Bulk Photos of Bow Shackle Stainless Steel Square Head Pin

bulk photos of bow shackle stainless steel square head pin
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
