Name: DIN1480 Turnbuckle Body Only
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

 Galvanized Turnbuckle Jaw&Jaw US Type

 Forged Turnbuckle with Plain Ends for Swimming Pool-China

 Galvanized Turnbuckle Eye&Eye US Fed Spec

 Galvanized Turnbuckle Jaw & Eye US Type

 Galvanized Turnbuckle Hook & Eye US Fed Spec

 Galvanized Turnbuckle Hook & Hook US Fed Spec

 DIN 1478 Closed Turnbuckle Body

 DIN 1478 Turnbuckle Jaw/Jaw

 DIN 1478 Turnbuckle Eye/Eye

 DIN 1478 Closed Body Turnbuckle Jaw & Eye

 DIN 1478 Turnbuckle Eye/Hook

 DIN 1478 Turnbuckle Hook/Hook Galvanized

 DIN 1478 Turnbuckle With Stub End

 DIN1480 Turnbuckle Body Only

 DIN 1480 Turnbuckle Eye & Eye

 DIN 1480 Turnbuckle Hook-Eye

 DIN 1480 Turnbuckle Hook-Hook

 DIN 1480 Turnbuckle Plain End

 DIN 1480 Turnbuckle Stub End

 Galvanized Rigging Screw Turnbuckle Body-LG RIGGING®

 Closed Body Turnbuckle Jaw&Jaw Rigging Screw – LG RIGGING®

 Galvanized Closed Body Turnbuckle Eye&Eye-LG RIGGING®

 Galvanized Closed Body Turnbuckle Jaw&eye-LG RIGGING®

 JIS Forged Steel Frame Type Turnbuckle

 DIN 1480 Turnbuckle Cast Hook & Hook

 Turnbuckle Cast DIN1480 Eye & Hook

 Cast Zinc Eye & Eye Turnbuckle

 Zinc Alloy Turnbuckle Hook & Eye ES Type Die Casting

 Cast Zinc Hook & Eye Turnbuckle Open Body RS Type

 Cast Zinc Hook & Hook Turnbuckle

 Italy Type Turnbuckle Eye and Hook

 Italy Type Turnbuckle Eye and Eye

 Italy Type Turnbuckle Hook and Hook

 Deck Lashing Turnbuckle with Pelican Hook and Pear Link

 Hamburger D-D Turnbuckle, Lashing Turnbuckle

 Casting Turnbuckles DIN1480 Eye/Eye-3

 Galvanised Straining Screw DIN1480 Turnbuckle Jaw/Jaw-1

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of DIN1480 Turnbuckle Body Only

Technical Notes	Galvanized turnbuckle To DIN1480
Material	Body: Superior Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M6 , M8 , M10 , M12 , M16 , M20 , M24 , M30 , M36 ,M42 , M48 , M56

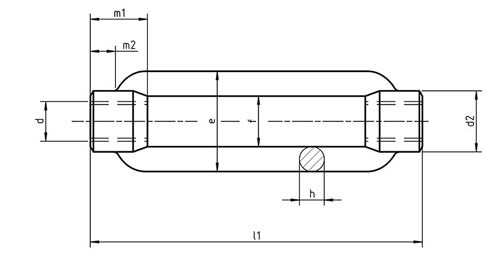

Specifications of DIN1480 Turnbuckle Body Only

Part No.	Thread	l1	m1	m2	e	f	h	d2	W.L.L.	B.L.
Part No.	Thread	mm							N
LG-1480-B-06	M6	110	12	6	19	9	6	12	2250	9000
LG-1480-B-08	M8	110	15	8	23	11	8	15	4100	16400
LG-1480-B-10	M10	125	18	9	30	14	9	18	6500	26000
LG-1480-B-12	M12	125	21	11	34	16	11	21	9300	37200
LG-1480-B-16	M16	170	27	14	42	20	14	27	17700	70800
LG-1480-B-20	M20	200	34	17	52	24	17	34	27000	108000
LG-1480-B-24	M24	255	39	20	60	28	20	39	39200	156800
LG-1480-B-30	M30	255	45	23	74	34	23	45	62500	250000
LG-1480-B-36	M36	295	55	28	86	40	28	55	91000	364000
LG-1480-B-42	M42	330	63	32	104	50	32	63	–	–
LG-1480-B-48	M48	355	78	39	135	65	40	80	–	–
LG-1480-B-56	M56	355	78	39	135	65	40	80	–	–
