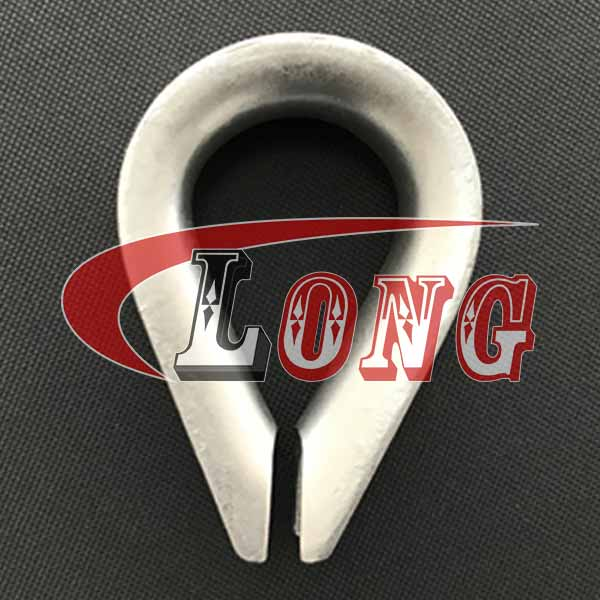

AS1138 Wire Rope Thimble Conform to AS1138 standard.
Wire rope thimble AS1138 made from superior mild steel, after forging, stamping and machining ,solid and durable, hot dipped galvanized, has better resistance abrasion.
Cable thimble AS1138 are recommended for heavy duty applications.
Break Test of the 14MM AS1138 THIMBLE LG RIGGING®.
Peak Load 13.25Ton (129.85kN)
Test was made at LG RIGGING®
If you need this product, please do not hesitate to contact us: sales@lg-lifting.com
and check our link: https://www.lg-lifting.com/products/wire-rope-thimble-as1138/
Material | Superior Mild Steel |
Processing | Forged Steel + Machining + Stamping |
Finish | Hot Dipped Galvanized |
Size-Wire | 6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 19mm, 20mm 22mm, 24mm, 26mm, 28mm, 32mm, 36mm, 40mm, 44mm, 48mm, 52mm |
Tips | Recommended for heavy duty applications |

Item No. | SIZE | Wt. | DIMENSIONS | |||
mm | kg/pc | A mm | B mm | H mm | D mm | |
LG-AS1138-06 | 6 | 0.04 | 4 | 7 | 25 | 16 |
LG-AS1138-08 | 8 | 0.052 | 5 | 7.9 | 33 | 22 |
LG-AS1138-10 | 10 | 0.08 | 5 | 10.3 | 38 | 25 |
LG-AS1138-11 | 11 | 0.09 | 6 | 12.7 | 41 | 29 |
LG-AS1138-12 | 12 | 0.13 | 6 | 14.3 | 44 | 32 |
LG-AS1138-14 | 14 | 0.15 | 7 | 15 | 46 | 38 |
LG-AS1138-16 | 16 | 0.26 | 8 | 15.9 | 59 | 41 |
LG-AS1138-18 | 18 | 0.35 | 8 | 18 | 65 | 46 |
LG-AS1138-19 | 19 | 0.4 | 9 | 20.6 | 73 | 51 |
LG-AS1138-20 | 20 | 0.5 | 10 | 21.6 | 75 | 52 |
LG-AS1138-22 | 22 | 0.62 | 10 | 22.2 | 83 | 57 |
LG-AS1138-24 | 24 | 0.9 | 11 | 25.4 | 92 | 64 |
LG-AS1138-26 | 26 | 1 | 11 | 27 | 111 | 72 |
LG-AS1138-28 | 28 | 1.1 | 12 | 28.6 | 111 | 76 |
LG-AS1138-32 | 32 | 1.3 | 14 | 33.4 | 133 | 95 |
LG-AS1138-36 | 36 | 2.2 | 16 | 38 | 152 | 105 |
LG-AS1138-40 | 40 | 3.2 | 18 | 43 | 165 | 114 |
LG-AS1138-44 | 44 | 5.6 | 20 | 47 | 178 | 127 |
LG-AS1138-48 | 48 | 8.2 | 22 | 51 | 190 | 134 |
LG-AS1138-52 | 52 | 11 | 22 | 55 | 203 | 140 |
