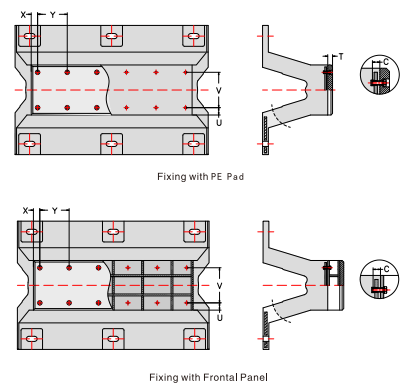

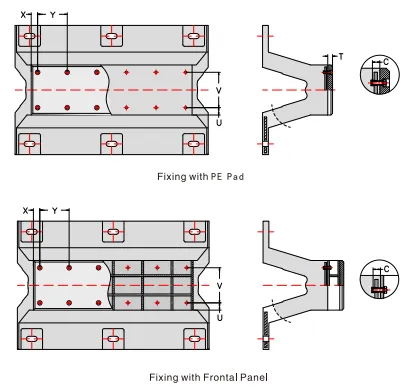

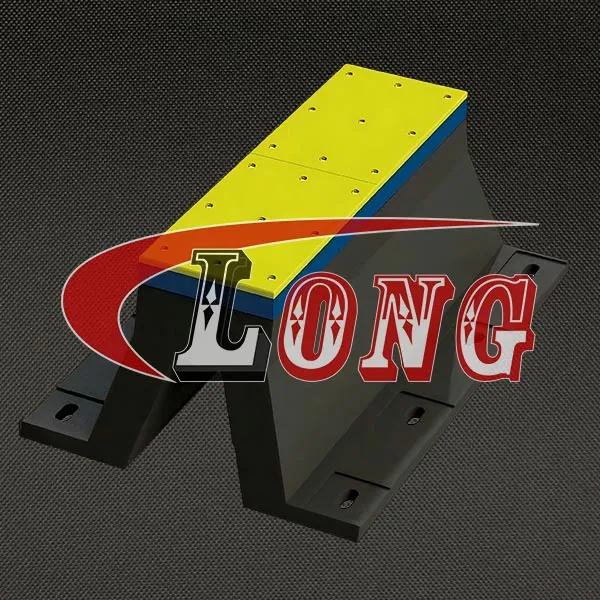

Specification of LGRIG® Arch Fenders DAF Type

Part No.	Specification	U	V	C	PE Face Pad				SteelFrame
Part No.	Specification	U	V	C	X	Y	T	BoltSize	X	Y	Bolt Size
LGRAFDAFF150H	150H	49	0	20~30	60~70	300~410	30	M16	70~150	250~300	M16
LGRAFDAF200H	200H	65	0	30~45	60~70	300~410	30	M16	70~150	250~300	M16
LGRAFDAF250H	250H	50	64	30~45	60~85	300~410	30	M16	70~150	250~300	M20
LGRAFDAF300H	300H	60	105	30~45	65~85	300~410	40	M16	70~150	250~300	M24
LGRAFDAF400H	400H	60	180	30~50	65~85	300~410	40	M16	70~150	250~300	M27
LGRAFDAF500H	500H	65	245	30~50	65~85	300~410	50	M20	70~150	250~300	M30
LGRAFDAF600H	600H	70	310	35~60	65~85	300~410	50	M20	70~150	250~300	M30
LGRAFDAF800H	800H	80	440	50~70	65~85	300~410	60	M24	70~150	250~300	M36
LGRAFDAF1000H	1000H	90	570	50~70	65~85	300~410	60	M24	70~150	250~300	M36

Units:mm

Performance of LGRIG® Arch Fenders DAF Type

Specification			150H	200H	250H	300H	400H	500H	600H	800H	1000H
Performance			150H	200H	250H	300H	400H	500H	600H	800H	1000H
RS	50%	R(kN)	181	241	257	326	413	511	613	831	1015
RS	50%	E(kNm)	7	13	24	35	64	102	133	265	417
RH	50%	R(kN)	155	208	196	242	316	401	462	621	788
RH	50%	E(kNm)	6	11	19	27	49	78	108	200	312
RO	50%	R(kN)	116	157	165	200	261	354	386	510	655
RO	50%	E(kNm)	5	8	15	21	41	64	83	150	262
RL	50%	R(kN)	78	103	144	158	229	269	299	456	539
RL	50%	E(kNm)	3	6	12	16	31	54	71	126	221

RS: Super high Reaction Force, RH: High Reaction Force

RO: Standard Reaction Force, RL: Low Reaction Force

R:Reaction Force, E:Energy Absorption.

Rated Deflection: 50%

Performance tolerance: Reaction Force:≤+10%, Energy Absorption:≥-10%

The performance mentioned above is the performance for per meter length fender,Dynamic performance in different length shall be calculated by times the multiple of 1000mmlength.
