wire lock pin stainless steel
wire lock pin stainless steel

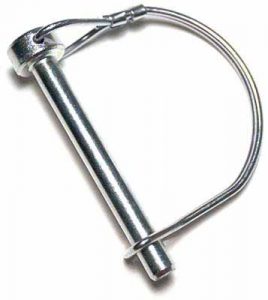

Round Wire Lock Pin Stainless Steel – LG RIGGING®

Round Wire Lock Pin Stainless Steel – LG RIGGING®, also known as square lock pin.

Wire round Lock Pins have a pin and cotter all in one assembly. The wire loop is pulled over the pin end to lock it in place or remove it.

This one-piece fastener eliminates cotter pin loss and fits most quick-release applications.

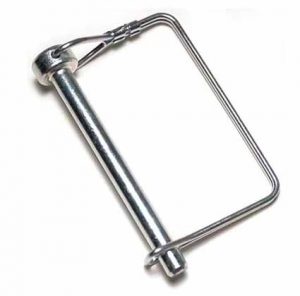

Round or Square Handles are available in most sizes.

The material of the round lock pin is Stainless Steel AISI304.

The finish of the round head wire lock pins is Highly Polished Stainless Steel.

Trawling Gear
Shackles
Boat Fittings

Information of Round Wire Lock Pin Stainless Steel – China LG™

Material

Stainless Steel AISI304.


Superior Carbon Steel zinc plated is also available.

Processing

Stamped

Finish

Highly Polished

Size

1/4”×1-3/8”, 1/4”×1-3/4”, 1/4”×2-1/4”, 1/4”×2-1/2”, 1/4”×2-1/2”

5/16”×1-3/8”, 5/16”×1-3/4”, 5/16”×2-1/4”, 5/16”×2-1/2”, 5/16”×2-1/2”

5/16”×3”, 3/8”×1-3/8”, 3/8”×1-3/4”, 3/8”×2-1/4”, 3/8”×2-1/2”

3/8”×2-1/2”, 3/8”×3”, 1/2”×3”

Tips

Special specification and marks can be made according to customers’ requirements


Specifications of Round Wire Lock Pin Stainless Steel – China LG™

Specifications of Round Wire Lock Pin Stainless Steel – China LG™


Specifications of Round Wire Lock Pin Stainless Steel – China LG™


Part No.

Pin


dia

Shank


length

Usable


length

Wire


dia

Wire


clearance

Head


dia

Handle


type

Pcs/bag

Wgt(lbs)


/bag

LGSSWLP010

1/4

1-5/8

1-3/8

0.091

1-5/8

9/16

RD

25

2

LGSSWLP012

1/4

2

1-3/4

0.091

1-5/8

9/16

RD

25

2

LGSSWLP014

1/4

2-1/2

2-1/4

0.091

1-5/8

9/16

SQ

25

2

LGSSWLP015

1/4

2-1/2

2-1/4

0.091

1-5/8

9/16

RD

25

2

LGSSWLP016

1/4

2-3/4

2-1/2

0.091

1-3/4

9/16

SQ

25

2

LGSSWLP020

5/16

1-5/8

1-3/8

0.091

1-1/2

5/8

RD

25

2

LGSSWLP022

5/16

2

1-3/4

0.091

1-1/2

5/8

RD

25

2

LGSSWLP024

5/16

2-1/2

2-1/4

0.091

1-9/16

5/8

SQ

25

3

LGSSWLP025

5/16

2-3/4

2-1/2

0.091

1-11/16

5/8

RD

25

3

LGSSWLP026

5/16

2-3/4

2-1/2

0.091

1-11/16

5/8

SQ

25

3

LGSSWLP028

5/16

3-1/4

3

0.091

1-11/16

5/8

SQ

25

4

LGSSWLP030

3/8

1-5/8

1-3/8

0.091

1-1/2

5/8

RD

25

3

LGSSWLP032

3/8

2

1-3/4

0.091

1-1/2

5/8

RD

25

3

LGSSWLP034

3/8

2-1/2

2-1/4

0.091

1-1/2

5/8

SQ

25

4

LGSSWLP035

3/8

2-3/4

2-1/2

0.091

1-5/8

5/8

RD

25

4

LGSSWLP036

3/8

2-3/4

2-1/2

0.091

1-5/8

5/8

SQ

25

4

LGSSWLP038

3/8

3-1/4

3

0.091

1-5/8

5/8

SQ

25

3

LGSSWLP040

1/2

3-1/4

3

0.091

1-5/8

3/4

SQ

25

4


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
