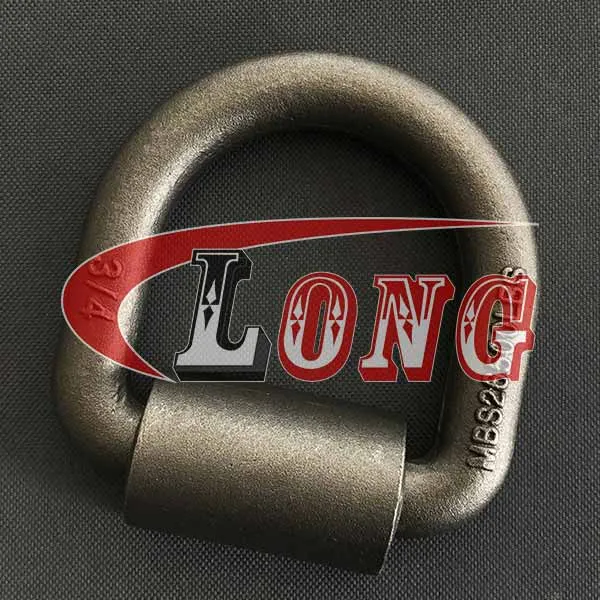

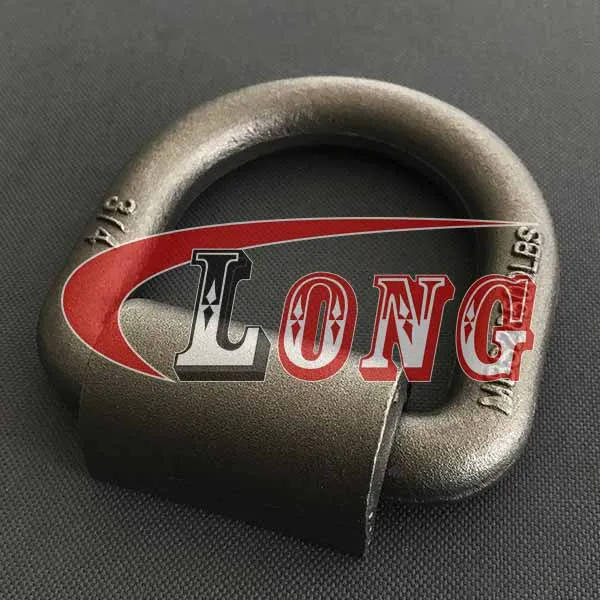

Forged Weld-on D Ring–LG RIGGING®

Weld On D-Rings, also called Pivot Links – Weld on D-Rings work for all your tie-down and hauling needs.These

Forged D Ring comes with an mounting bracket, can be placed and welded anywhere along your trailer and provides an added anchor point when an extra anchor point attachment is needed. Forged D Rings are considered heavy-duty, being much stronger because they are formed from solid steel with no seam or break.

Weld on D-Rings are made of forged steel with a weld on bracket that allows the D-Ring to pivot 180 degrees to accommodate any load. Weld on D-Rings offer superior strength for heavy loads.

The Forged D Ring is a great tool for added security and stability when transporting heavy items. And it’s a great tool for farmers, ranch hands, repairmen and anyone transporting cargo in their trailer or truck bed.

*NOT FOR LIFTING

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Wire Ropes Clips & Grips
Eye Bolts & Nuts
Forged Hooks
Wire Rope
Chain Binders
Forged Rings & Connector
Forged Weld-on D Ring–LG RIGGING®
Pear Shaped Lifting Rings, Pear Links
Forged Delta Ring, Webbing D Ring
Forged Lashing D-Ring W/Weld-on Clip
Clevis End Fitting Blank Clevises – LG RIGGING®
Twin Clevis Link
Double Clevis Link Forged Steel – LG RIGGING®
Lever Hoist
Lifting Sling of Lifting & Rigging
Shackles
Quick Links
Snap Hooks
Wire Rope Thimbles
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Swivels
Chains & Accessories
Ratchet Straps
Wire Rope Sleeves/Ferrules
Eye Plate
Stainless Steel Products
Stainless U Bolts
Stainless Thimbles
Stainless Terminals
Stainless Swivels
Stainless Hinge
Stainless Shackles
Stainless Rings
Stainless Quick Link
Stainless Pulleys
Stainless Hooks & Clips
Stainless Wire Clips
Shade Sail Hardware
Drop Forged Stainless Products
Stainless Turnbuckle
Stainless Chains
Stainless Eye Bolts & Nuts
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Forged Weld-on D Ring–China LG™

Material

Forged Steel

Processing

Drop Forged

Finish

Zinc plated, Hot dipped galvanized,Self-colored

Size

1/2″, 5/8″, 3/4″, 1″

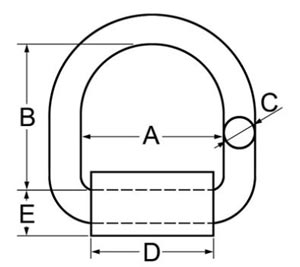

Specifications of Forged Weld-on D Ring–China LG™

Specifications of Forged Weld-on D Ring–China LG™


Part No.

Size

A (in.)

B (in.)

C (in.)

D (in.)

E (in.)

Weight (lbs.)

Breaking Strength


(lbs.)

LG-WO-DR-F-1/2

1/2″

2.25

2.5

0.5

1.76

0.61

0.94

12000

LG-WO-DR-F-5/8

5/8″

3

3

0.63

2.48

0.92

1.87

18000

LG-WO-DR-F-3/4

3/4″

3

3

0.75

2.48

1

2.7

26500

LG-WO-DR-F-1

1″

3

3

1

2.52

1.21

4.21

47000


*Please use this D ring as a tie-down anchor only, not for overhead lifting.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Forged Rings & Connector

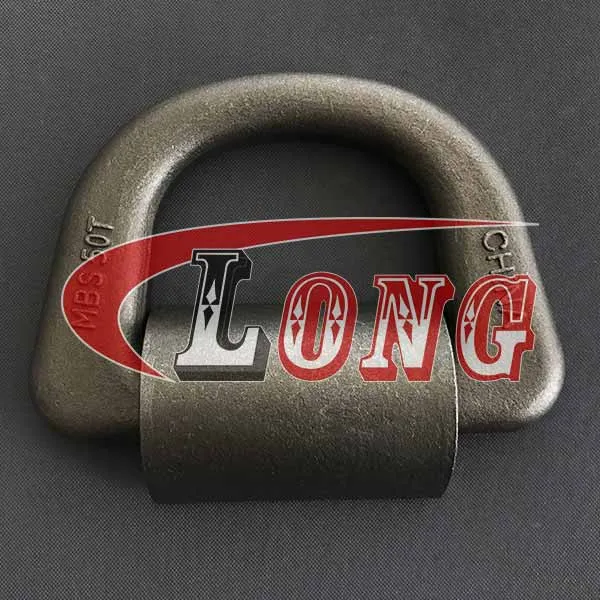

Forged Lashing D-Ring W/Weld-on Clip
Forged Lashing D-Ring W/Weld-on Clip
Twin Clevis Link
Twin Clevis Link

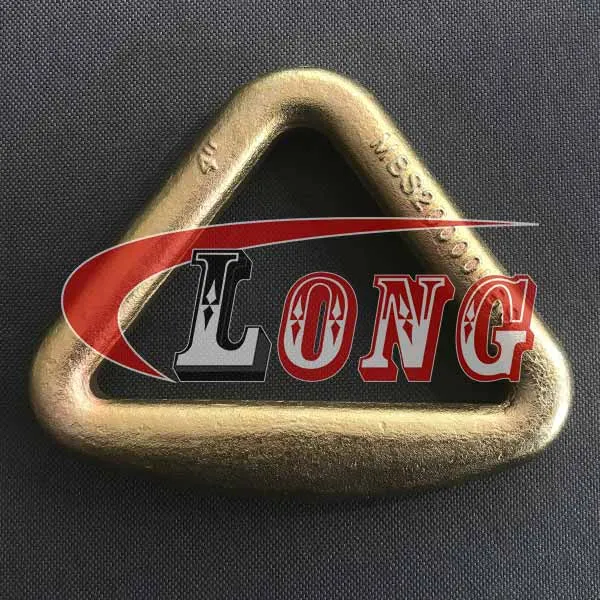

Forged Delta Ring, Webbing D Ring
Forged Delta Ring, Webbing D Ring
Clevis End Fitting Blank Clevises – LG RIGGING®
Clevis End Fitting Blank Clevises – LG RIGGING®

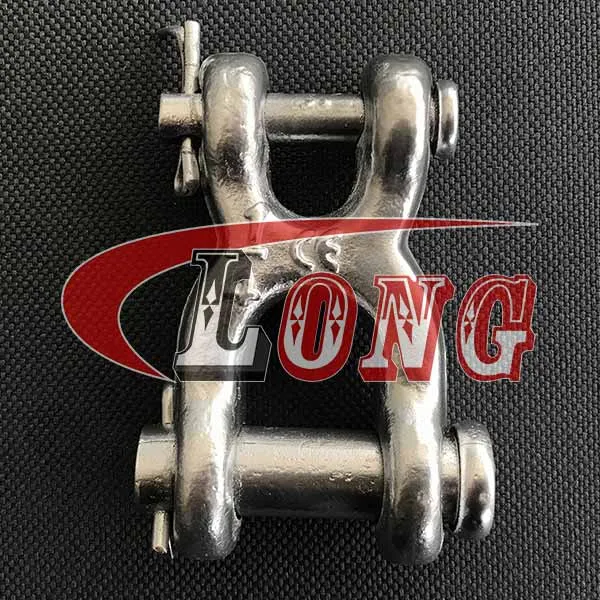

Double Clevis Link Forged Steel – LG RIGGING®
Double Clevis Link Forged Steel – LG RIGGING®

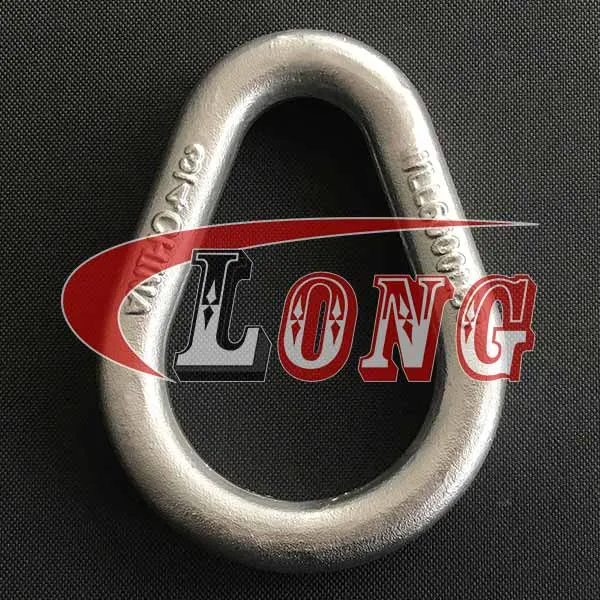

Pear Shaped Lifting Rings, Pear Links
