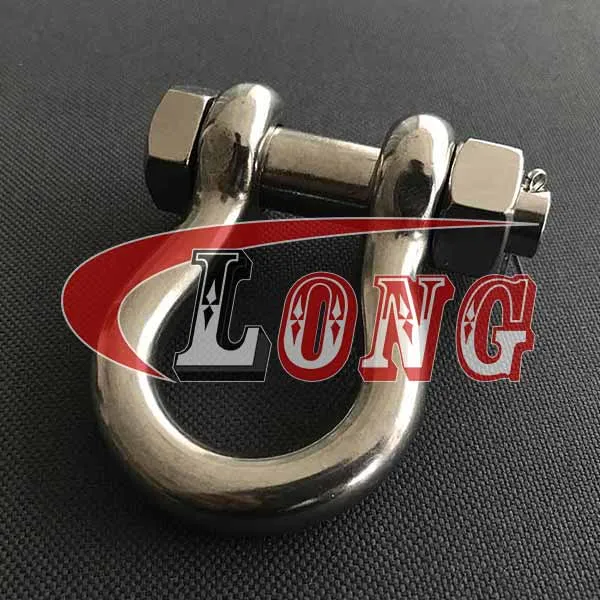

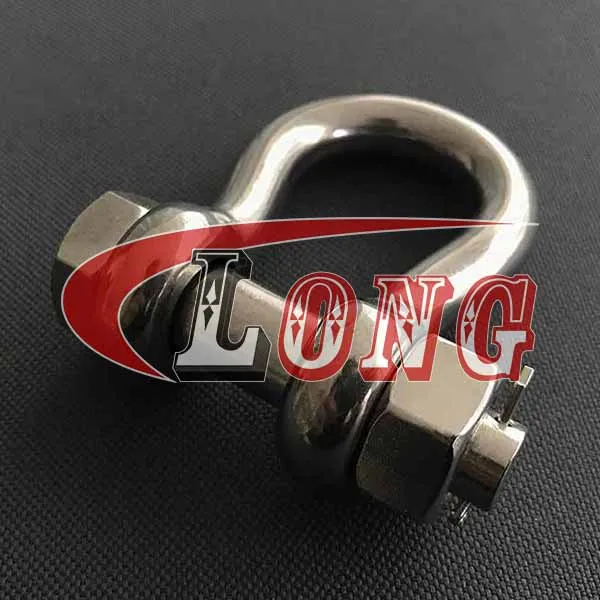

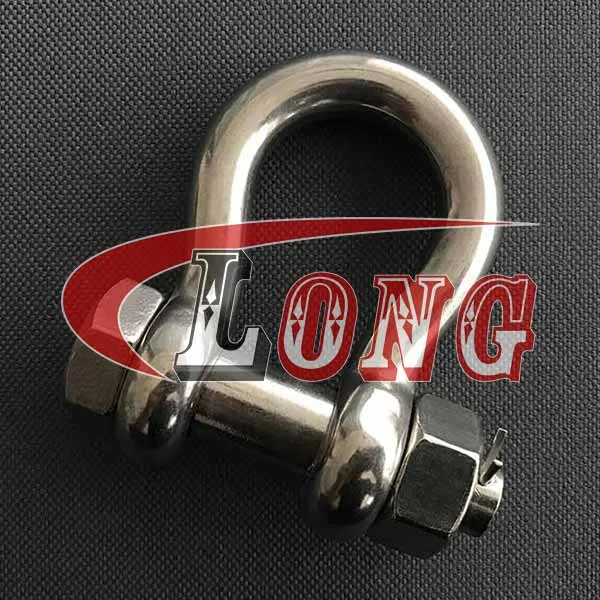

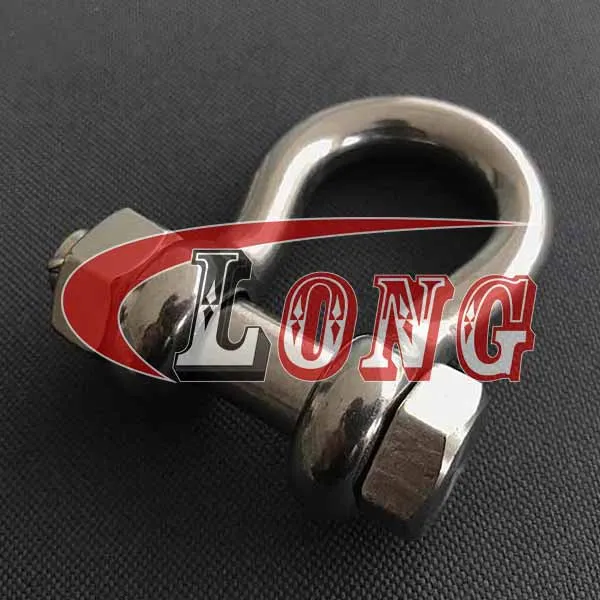

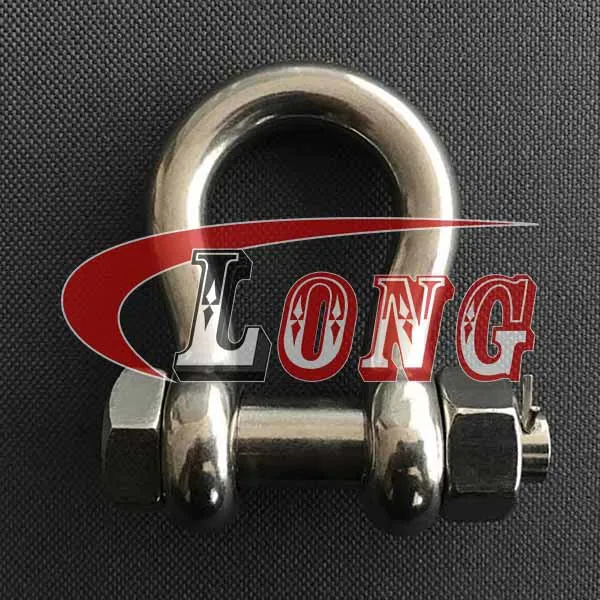

Stainless Steel Bow Shackle Oversized Bolt Type Pin G-2130

Stainless Steel Bow Shackle Oversized Bolt Type Pin G-2130, also known as anchor shackle.

These stainless steel safety pin anchor shackles have a variety of different uses.

Stainless steel anchor shackle oversized pin bolt type US type, marked in the imperial specification style of size (for the bow diameter).

This a stainless steel bow shackle, not to be used for overhead lifting.AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

The oversized pin bolt configuration is best for use in applications that are temporary, or require repeated or quick connections and disconnections.

This bow shackle is free forged and made in the US Type style of an oversized castle nut and cotter pin.

The bow diameter dictates the size of this US type anchor shackle, so this bow shackle has an oversized cotter bolt pin.

G-2130 Stainless Steel Anchor Shackle cotter bolt oversized meets the performance requirements of Federal Specification RR-C-271F Type IVA, Grade A, Class 3.

Our range of stainless steel g-2130 shackles is available in standard as well as customized sharps and sizes.

Working Load Limit permanently shown on every shackle.

Trawling Gear
Boat Fittings

Information of Stainless Steel Bow Shackle Oversized Bolt Type Pin G-2130

Technical Notes

Bow shackle conform to U.S. Federal Specification

Material

Stainless steel AISI 304/316 Shackle

Processing

Free Forging

Finish

Highly Polishing / Electrophoretic coating

Size

3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”


Specifications of Stainless Steel Bow Shackle Oversized Bolt Type Pin G-2130

Specifications of Stainless Steel Bow Shackle Oversized Bolt Type Pin G-2130


Part No.

A

B

C

D

Min.BL

in

KN

LG-SS-2130-S-3/16

3/16

1/4

0.38

0.88

13.7

LG-SS-2130-S-1/4

1/4

5/16

0.47

1.13

24.4

LG-SS-2130-S-5/16

5/16

3/8

0.53

1.25

38.2

LG-SS-2130-S-3/8

3/8

7/16

0.66

1.44

54.9

LG-SS-2130-S-7/16

7/16

1/2

0.75

1.69

54.9

LG-SS-2130-S-1/2

1/2

5/8

0.81

1.88

97.7

LG-SS-2130-S-5/8

5/8

3/4

1.06

2.38

152.6

LG-SS-2130-S-3/4

3/4

7/8

1.25

2.81

184.7

LG-SS-2130-S-7/8

7/8

1

1.44

3.31

219.7

LG-SS-2130-S-1/1

1

1-1/8

1.69

3.75

278.1

LG-SS-2130-S-1-1/8

1-1/8

1-1/4

1.81

4.25

390.7

LG-SS-2130-S-1-1/4

1-1/4

1-3/8

2.03

4.69

494.4
