Name: LGRIG® Italy Type Turnbuckle Hook & Hook
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

 LGRIG® Jaw&Jaw Turnbuckle Galvanized US Type

 LGRIG® Forged Turnbuckle with Plain Ends for Swimming Pool

 LGRIG® Eye&Eye Turnbuckle Galvanized US Spec

 LGRIG® Jaw & Eye Turnbuckle Galvanized US Spec

 LGRIG® Galvanized Hook & Eye Turnbuckle US Fed Spec

 LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec

 LGRIG® DIN 1478 Turnbuckle Body

 LGRIG® DIN 1478 Turnbuckle Jaw-Jaw Galvanized

 LGRIG® DIN 1478 Turnbuckle Eye-Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Jaw-Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Hook and Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Hook-Hook Galvanized

 LGRIG® DIN 1478 Turnbuckle With Stub Ends Galvanized

 LGRIG® DIN 1480 Turnbuckle Body Only

 LGRIG® DIN 1480 Turnbuckle Eye/Eye

 LGRIG® DIN 1480 Hook/Eye Turnbuckle Galvanized

 LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized

 LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized

 LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

 LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body

 LGRIG® Galvanized Rigging Screw Closed Body Jaw/Jaw

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Jaw/Eye

 LGRIG® JIS Forged Steel Frame Type Turnbuckle

 LGRIG® DIN 1480 Turnbuckle Cast Hook & Hook

 LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook

 LGRIG® Turnbuckle Die Cast Zinc Eye/Eye

 LGRIG® Hook and Eye Turnbuckle Die Cast Zinc Plated RS Type

 LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type

 LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type

 LGRIG® Italy Type Turnbuckle Eye and Hook

 LGRIG® Italy Type Turnbuckle Eye/Eye

 LGRIG® Italy Type Turnbuckle Hook & Hook

 Deck Lashing Turnbuckle with Pelican Hook and Pear Link

 LGRIG® Hamburger Turnbuckle Lashing Marine D D

 LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Italy Type Turnbuckle Hook & Hook

Brand	LGRIG®
Standard	Turnbuckle/Straining Screw To Italy Type
Material	Super Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M5, M6, M8, M10, M12, M14, M16, M20 M22 , M24, M27, M30, M33, M36, M39
Country of Origin	China

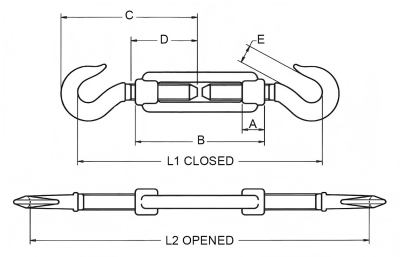

Specifications of LGRIG® Italy Type Turnbuckle Hook & Hook

Part No.	Size	A	B	C	D	E	L1	L2	S.W.L.	Weight
Part No.	Size	mm	mm	mm	mm	mm	mm	mm	Kg	Kg
LGITTHH101	M5	9	79	62	40	6	122	173	50	0,05
LGITTHH102	M6	10	88	76	50	8,5	145	209	75	0,07
LGITTHH103	M8	12	110	89	52	10	162	245	165	0,12
LGITTHH104	M10	15	130	103	62	12	204	284	235	0,27
LGITTHH105	M11	17,5	135	112	65	12,5	231	320	280	0,35
LGITTHH106	M12	18	140	121	65	16	236	327	320	0,42
LGITTHH107	M14	20	170	144	82	16	284	395	420	0,62
LGITTHH108	M16	22,5	190	172	105	16,5	315	436	530	0,95
LGITTHH109	M18	27	200	183	110	17	333	457	630	1,3
LGITTHH110	M20	30	220	185	110	17,5	345	482	730	1,54
LGITTHH111	M22	33	242	216	125	23	385	507	1120	2,25
LGITTHH112	M24	39	255	225	135	23	410	580	1550	2,92
LGITTHH113	M27	45	255	250	135	29	445	585	1870	3,87
LGITTHH114	M30	45	255	250	145	29	450	595	2240	4,25
LGITTHH115	M33	45	255	250	145	29	451	596	2850	6,01
LGITTHH116	M36	55	295	284	170	30	519	679	3530	7,81
LGITTHH117	M39	63	330	288	170	30	530	706	4150	9,4
