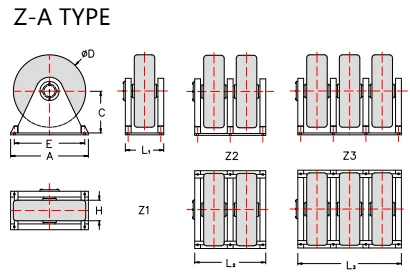

Specification of LGRIG® Roller Fenders

Part No.	Types A×B(mm)	Specification					Z1		Z₂		Z₃		Note
Part No.	Types A×B(mm)	D	H	A	E	C	L₁	Weight	L₂	Weight	L₃	Weight	Note
LGRLFZA600	600×200	600	200	695	620	320	420	127	770	245	1120	365	Other Specification available upon request.
LGRLFZA750	750×250	750	250	870	775	400	510	280	935	560	1360	820
LGRLFZA900	900×300	900	300	1040	930	480	610	465	1120	878	1630	1291
LGRLFZA120	1200×400	1200	400	1380	1240	640	820	1045	1500	2041	2180	3005
LGRLFZA1500	1500×500	1500	500	1740	1550	800	1010	2011	1850	3915	2690	5784
LGRLFZA1800	1800×600	1800	600	2080	1860	960	1210	3441	2215	6701	3220	9891
LGRLFZA2100	2100×700	2100	700	2440	2205	1155	1410	5610	2590	10925	3770	15895
LGRLFZA2400	2400×800	2400	800	2770	2480	1280	1610	8115	2950	15701	4290	23300

Units:mm, kg/m

Part No.	Types A×B(mm)	D (mm)	H (mm)	Max.Deflection (mm)	Z1		Z₂		Z₃
Part No.	Types A×B(mm)	D (mm)	H (mm)	Max.Deflection (mm)	R kN	E kNm	R kN	E kNm	R kN	E kNm
LGRLFZB1200	1200×400	1200	400	431	248	48	496	96	744	144
LGRLFZB1500	1500×500	1500	500	541	388	94	776	187	1166	281
LGRLFZB1800	1800×600	1800	600	650	559	162	1117	323	1676	485
LGRLFZB2100	2100×700	2100	700	762	761	257	1519	514	2283	770
LGRLFZB2400	2400×800	2400	800	851	990	383	1980	766	2969	1147

Performance tolerance:±10%

Other specification are available upon request.

R:Reaction force,E:Energy absorption.

Performance of LGRIG® Roller Fenders

Types A×B(mm)	Max. Deflection (mm)	Z₁		Z₂		Z₃
Types A×B(mm)	Max. Deflection (mm)	R kN	E kNm	R kN	E kNm	R kN	E kNm
600×200	125	67	2	134	5	202	7
750×250	159	105	5	210	9	315	14
900×300	185	151	8	302	16	453	24
1200×400	260	269	19	539	39	814	58
1500×500	325	419	38	843	76	1264	113
1800×600	390	608	65	1215	130	1823	196
2100×700	455	823	102	1647	204	2470	306
2400×800	510	1108	140	2156	280	3234	420
