Grade 80 Alloy Lifting Chains EN818-2

Grade 80 Alloy Load Chain, EN818-2 used for lifting chain hoist no matter electric hoist or hand hoist.

G80 lifting chains also can be used as assembly with lifting hook and ring to lift heavy weight.

We also can make the non-standard chain according to the clients’ requirements.

Suitable for operating temperature range -40° – 200°C at full WLL.

Trawling Gear
Boat Fittings

Information of Grade 80 Alloy Lifting Chains EN818-2

Technical Notes

European Type (EN818-2)

Material

Super Alloy Steel

Safety Factor

4: 1

Processing

Welded

Finish

Powder Coated

Size

6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 26mm, 32mm

Tips

Color Code: Customized according to customers’ requirements

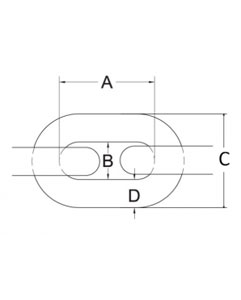

Specifications of Grade 80 Alloy Lifting Chains EN818-2

Specifications of Grade 80 Alloy Lifting Chains EN818-2


Part No.

Size


(mm)

WLL


(T)

B.L.


(T)

A


(mm)

B min


(mm)

C max


(mm)

LG-8-Chain-06

6±0.24

1.12

4.48

18±0.5

7.8

22.2

LG-8-Chain-07

7±0.28

1.5

6

21±0.6

9.1

25.9

LG-8-Chain-08

8±0.32

2

8

24±0.7

10.4

29.6

LG-8-Chain-10

10±0.4

3.15

12.6

30±0.9

13

37

LG-8-Chain-13

13±0.52

5.3

21.2

39±1.2

16.9

48.1

LG-8-Chain-16

16±0.64

8

32

48±1.4

20.8

59.2

LG-8-Chain-18

18±0.90

10

40

54±1.6

23.4

66.6

LG-8-Chain-20

20±1.00

12.5

50

60±1.8

26

74

LG-8-Chain-22

22±1.10

15

60

66±2.0

28.6

81.4

LG-8-Chain-26

26±1.30

21.2

84.8

78±2.3

33.8

96.2

LG-8-Chain-32

32±1.60

31.5

126

96±2.9

41.6

118



Caution:

Do Not Use for Overhead Lifting. DO NOT EXCEED THE WORKING LOAD LIMIT.


WORKING LOAD LIMIT designates the maximum stress in pounds which should ever be applied to chain. This refers also to chain in the best condition, when new, and when the load is applied uniformly to a straight, untwisted length of chain.

WARNING: WORK LOAD LIMIT MUST NOT BE EXCEEDED

BREAK TEST LOAD is the minimum load in pounds at which new chain has been found by experience to break, under tests in which the load is applied in direct tension to a straight length of chain with a uniform rate of speed on a standard chain testing machine.
