Stainless Steel Turnbuckle DIN 1480 Eye-Hook

Stainless Steel Turnbuckle DIN 1480 Eye-Hook, also known as straining screw.

DIN 1480 turnbuckle, manufactured in AISI 304 or AISI 316 marine grade stainless steel for maximum corrosion resistance and durability. Also available in Eye&Eye, Hook&Hook.

Turnbuckle stainless steel conform to DIN 1480, it's a open body turnbuckle.

This open body turnbuckle features a threaded eye at one end and a threaded hook at the other end.

Straining screw din 1480 is ideal for marine rigging, fencing and architectural use.

This turnbuckle din 1480 is available in a variety sizes M5 M6 M8 M10 M12 M16 M20.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Wire Ropes Clips & Grips
Eye Bolts & Nuts
Forged Hooks
Wire Rope
Chain Binders
Forged Rings & Connector
Lever Hoist
Lifting Sling of Lifting & Rigging
Shackles
Quick Links
Snap Hooks
Wire Rope Thimbles
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Swivels
Chains & Accessories
Ratchet Straps
Wire Rope Sleeves/Ferrules
Eye Plate
Stainless Steel Products
Stainless U Bolts
Stainless Thimbles
Stainless Terminals
Stainless Swivels
Stainless Hinge
Stainless Shackles
Stainless Rings
Stainless Quick Link
Stainless Pulleys
Stainless Hooks & Clips
Stainless Wire Clips
Shade Sail Hardware
Drop Forged Stainless Products
Stainless Turnbuckle
Stainless Steel Turnbuckle European Type Eye and Eye
Stainless Steel Commercial Turnbuckle European Type
Stainless Steel Turnbuckle European Type Eye & Hook
Stainless Steel Turnbuckle European Type Jaw & Jaw
Stainless Steel Rigging Screw Jaw & Jaw
Stainless Steel Rigging Screw Jaw to Swage Stud
Stainless Steel Rigging Screw Swage Stud & Swage Stud
Stainless Steel Rigging Screw Body-LG RIGGING®
Rigging Screw Toggle & Toggle Stainless Steel
Stainless Steel Rigging Screw Toggle & Swage Stud
Stainless Steel Rigging Screw Machined Fork JIS Type
DIN 1480 Turnbuckle Stainless Steel Eye & Eye
Turnbuckle DIN 1480 Stainless Steel Hook & Hook
Stainless Steel Turnbuckle DIN 1480 Eye-Hook
Stainless Steel Turnbuckle Body US Type
Stainless Steel Eye and Eye Turnbuckle US Type
Stainless Steel Turnbuckle Eye and Hook US Fed Spec
Hook&Hook Turnbuckle Stainless Steel US Type
Jaw and Eye Turnbuckle US Type Stainless Steel
Stainless Steel Turnbuckle Jaw & Jaw, US Spec.
Stainless Steel Turnbuckle JIS Standard, Eye & Hook
Stainless Steel Korean Type Turnbuckle Eye & Eye
Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle
Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
Stainless Steel Drop Forged Jaw & Jaw Turnbuckle US Type for Stainless Turnbuckle
Stainless Chains
Stainless Eye Bolts & Nuts
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Stainless Steel Turnbuckle DIN 1480 Eye-Hook

Technical Notes

Turnbuckle conform to DIN 1480

Material

316 Stainless steel turnbuckle or 304 stainless steel turnbuckle

Size

M5 M6 M8 M10 M12 M16 M20

Processing

Body: Cast / Forged

Eye: Weld / Forged

Hook ：Machined / Stamped / Precision Cast

Finish

Highly Polishing

Tips

Corrosion Resistant

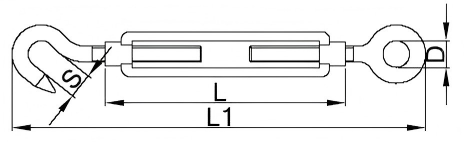

Specifications of Stainless Steel Turnbuckle DIN 1480 Eye-Hook

Specifications of Stainless Steel Turnbuckle DIN 1480 Eye-Hook


Part No.

Size

L(mm)

L1(mm)

D(mm)

S(mm)

WLL(kg)

LG-SS-1480-EH05

M5

90

140

8

7

40

LG-SS-1480-EH06

M6

110

170

10

9

80

LG-SS-1480-EH08

M8

110

180

12

10

140

LG-SS-1480-EH10

M10

125

210

14

11

220

LG-SS-1480-EH12

M12

125

240

18

14

300

LG-SS-1480-EH16

M16

170

320

22

18

600

LG-SS-1480-EH20

M20

200

370

25

20

900


We carry a full line of turnbuckles and other rigging supplies.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Turnbuckle

Stainless Steel Rigging Screw Machined Fork JIS Type
Stainless Steel Rigging Screw Machined Fork JIS Type
Turnbuckle DIN 1480 Stainless Steel Hook & Hook
Turnbuckle DIN 1480 Stainless Steel Hook & Hook
DIN 1480 Turnbuckle Stainless Steel Eye & Eye
DIN 1480 Turnbuckle Stainless Steel Eye & Eye
Stainless Steel Turnbuckle European Type Eye & Hook
Stainless Steel Turnbuckle European Type Eye & Hook
Stainless Steel Korean Type Turnbuckle Eye & Eye
Stainless Steel Korean Type Turnbuckle Eye & Eye
Stainless Steel Turnbuckle European Type Eye and Eye
Stainless Steel Turnbuckle European Type Eye and Eye
Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
Stainless Steel Turnbuckle Body US Type
Stainless Steel Turnbuckle Body US Type
China LG RIGGING's Updates
Application Characteristics and Analysis of Lifting Chain Rigging
22
Nov
2022
Application Characteristics and Analysis of Lifting Chain Rigging Learn More
About The Connection of Fixed Stainless Steel Wire Rope Thimble and Rope Clip
08
Nov
2022
About The Connection of Fixed Stainless Steel Wire Rope Thimble and Rope Clip Learn More
Stainless Steel Wire Rope Rigging
18
Oct
2022
Stainless Steel Wire Rope Rigging Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
