Information of LGRIG® Short Link Chain Australian Standard

Brand	LGRIG®
Standard	Short Link chain conform to Australian Standard
Material	Superior Mild Steel
Processing	Welded
Finish	Electric Galvanized / Hot Dip Galvanized
Size	5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 24mm
Country of Origin	China

Specifications of LGRIG® Short Link Chain Australian Standard

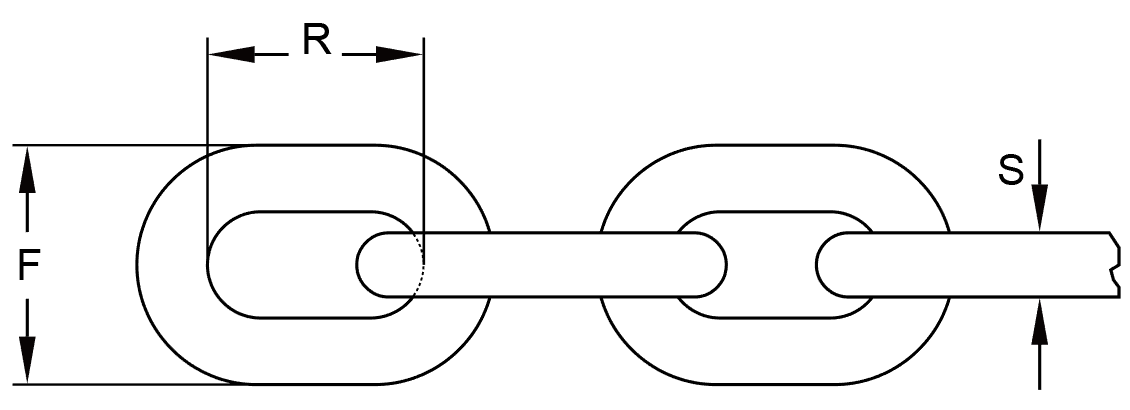

Part No.	CHAIN SIZE	WORKING LOAD	LINK DIMENSION			LINKS PER M	LENGTH PER 100KG
	CHAIN SIZE	WORKING LOAD	DIA. (MM)	INSIDE LENGTH (MM)	OUTSIDE WIDTH (MM)	LINKS PER M	B.F.	H.D.G.
	MM	MT	DIA. (MM)	INSIDE LENGTH (MM)	OUTSIDE WIDTH (MM)	PC	M	M
LGCSLAS5	5	0.24	5	14.6	17.2	68.3	174	167
LGCSLAS6	6	0.32	6.3	18.9	21.5	52.9	114	108
LGCSLAS8	8	0.53	8.0	24.0	27.5	41.7	70.5	67.0
LGCSLAS10	10	0.83	10.0	29.5	33.5	33.9	45.2	42.9
LGCSLAS12	12	1.50	12.5	37.5	40.6	26.7	29.5	28.0
LGCSLAS13	13	1.60	13	38.3	44.6	25.8	26.9	26.3
LGCSLAS16	16	2.31	16	47.0	54.0	21.3	17.6	16.7
LGCSLAS20	20	3.45	20	59.2	68.5	16.9	11.3	11.1
LGCSLAS22	22	4.55	22	64.9	77	15.4	9.5	9.2
LGCSLAS24	24	5.34	24	71	82.2	14.1	7.8	7.6
