Information of Lag Screw Eye Bolt, Welded

Lag screw threads.
Material: Carbon steel, Stainless steel.
Surface treatment for lag screw eye bolt: Galvanized or according to your requirements.
For industrial or home use.

Available Size for Lag Eye Bolt, Lag Screw Eyes, Lag Screw Eye Bolts:

5/8″ x 3-7/8″ Lag Eye Bolt, Lag Screw Eyes, Lag Screw Eye Bolts;

3/4″ x 3-1/8″ Lag Eye Bolt, Lag Screw Eyes, Lag Screw Eye Bolts;

1″ x 3-1/2″ Lag Eye Bolt, Lag Screw Eyes, Lag Screw Eye Bolts.

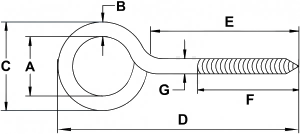

Specifications of Lag Screw Eye Bolt, Welded

Specifications of Lag Screw Eye Bolt, Weldedcrew-eye-bolt,-welded.jpg

Part.No.	Size	Weight (lbs)	A	B	C	D	E	F	G
LGLSEBW101	5/8″ x 3-7/8″	0.1	0.645	0.249	1.133	3.98	2.648	1.868	0.249
LGLSEBW102	3/4″ x 3-1/8″	0.1	0.773	0.271	1.309	3.115	1.614	1.059	0.285
LGLSEBW103	1″ x 3-1/2″	0.14	0.995	0.29	1.574	3.63	1.905	1.561	0.296
