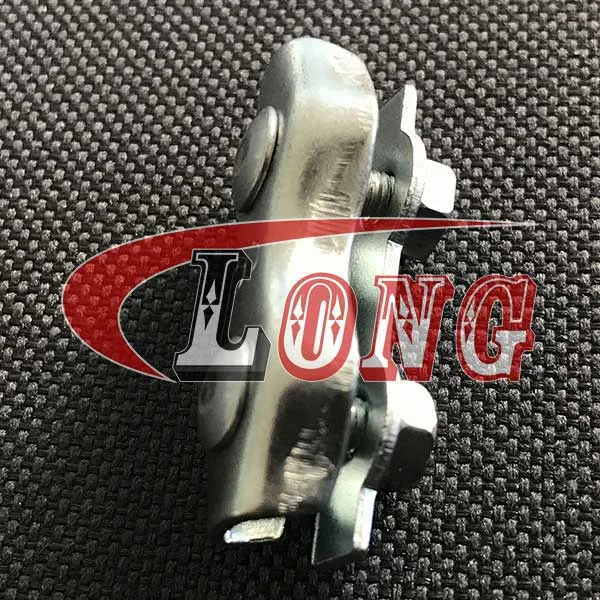

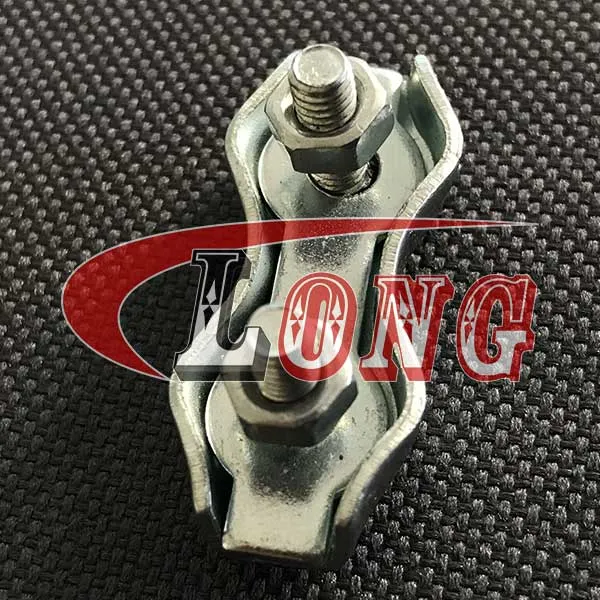

Duplex wire rope clips are designed for wire rope who require a simple loop setup. Both screws must be securely tightened. Do not use in application where heavy load is expected.
The Duplex wire rope grip ,used particularly with 7×19 construction wire rope which has very flexible characteristics.
Simply loop the cable each side of the threaded bolt and tighten down the plate using a suitable spanner.
Duplex grips are not suitable for any 1×19 construction cables & 7×7 construction 4mm & above.
The approximate failure load is 80% of the cable’s breaking load .
Not suitable for lifting.
Material | Low Carbon Steel |
Processing | Stamp |
Finish | Electric Galvanized |
Size | 2mm,3mm,4mm,5mm,6mm,8mm,10mm |
Part No. | Size | A | B | C | D | E | F | G | I | Unit/Weight |
mm | mm | mm | mm | mm | mm | mm | mm | Kg | ||
LGWRCD02 | 2 | 38 | 12 | 5 | M 4 | 7,5 | 1 | 1,5 | 20,5 | 0,010 |
LGWRCD03 | 3 | 38 | 15 | 6,5 | M 4 | 10 | 1,5 | 1,5 | 20,5 | 0,015 |
LGWRCD04 | 4 | 47 | 18 | 7,5 | M 5 | 12 | 1,5 | 1,5 | 25 | 0,025 |
LGWRCD05 | 5 | 51 | 20 | 8,5 | M 5 | 14 | 1,5 | 1,5 | 27 | 0,035 |
LGWRCD06 | 6 | 63 | 23 | 10 | M 6 | 17 | 1,5 | 2 | 33 | 0,050 |
LGWRCD08 | 8 | 76 | 30 | 14 | M 8 | 22 | 2 | 2 | 42 | 0,100 |
LGWRCD10 | 10 | 88 | 34 | 16 | M 10 | 25 | 3 | 46 | 0,180 |
