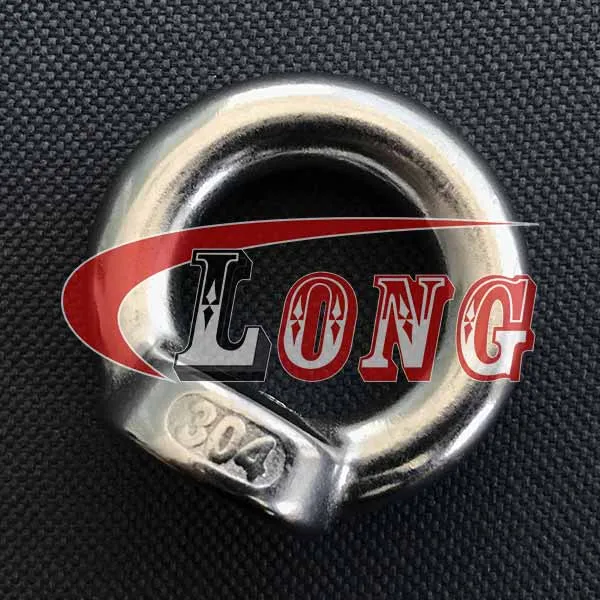

Name: LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

 LGRIG® Stainless Steel Lifting Eye Bolt DIN 580

 LGRIG® Lifting Eye Nut DIN 582 Stainless Steel

 LGRIG® Lifting Eye Bolt DIN 580 UNC Thread Stainless Steel

 LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel

 LGRIG® Stainless Steel Long Shank Eye Bolt with Nut and Washer

 Stainless Steel Eye Bolt JIS 1168 Standard

 Stainless Steel Lifting Eye Nut JIS 1169 UNC Thread

 Stainless Steel Lifting Eye Nut JIS 1169

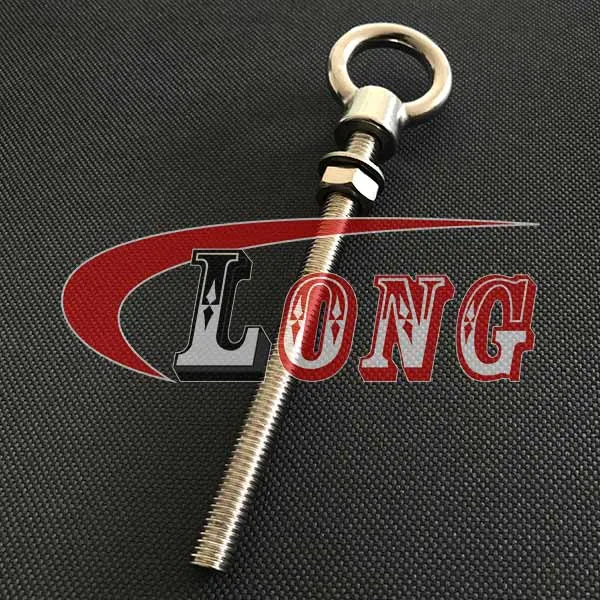

 Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer

 Stainless Steel Forged Shoulder Nut Eye Bolt G-277

 Regular Nut Eye Bolts G-291 Stainless Steel-LG RIGGING®

 Shoulder Type Machinery Eye Bolt Stainless Steel G-279

 Stainless Steel Lag Eye Bolt

 Stainless Steel Lag Eye Screw

 Stainless Steel Eye Bolt Unwelded

 Stainless Steel Swing Eye Bolt UNC Thread

 Stainless Steel Ring Eye Bolt

 LGRIG® Stainless Steel Welded Eye Bolt with Nut & Washer

 DIN444 Eye Swing Bolts Stainless Steel

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel

Brand	LGRIG®
Standard	Eye Nut Conform To DIN582
Material	Type 304 or 316 Stainless Steel
Processing	Precision Cast
Finish	Highly Polishing
Size	3/16", 1/4", 5/16", 3/8" , 1/2", 5/8", 3/4", 1", 1-3/16", 1-7/16" Eye Nut
Note	Never to be used for overhead lifting
Country of Origin	China

Specifications of LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel


Part No.	D1	D3	H	Min.BL
Part No.	D1	D3	H	lbs
LGSS582UNC3/16	3/16″	0.590″	0.984″	750
LGSS582UNC1/4	1/4″	0.630″	1.102″	1370
LGSS582UNC5/16	5/16”	0.787″	1.299″	1810
LGSS582UNC3/8	3/8″	0.984″	1.654″	2980
LGSS582UNC1/2	1/2″	1.181″	2.008″	4410
LGSS582UNC5/8	5/8″	1.378″	2.362″	9100
LGSS582UNC3/4	3/4”	1.575″	2.709″	15590
LGSS582UNC1	1″	1.969″	3.417″	23380
LGSS582UNC1-3/16	1-3/16”	2.362″	4.126″	41570
LGSS582UNC1-7/16	1-7/16″	2.756″	4.827″	59760

The following guidelines of the Stainless Steel-Lifting eye nuts DIN 582 have to be observed in addition to the load values given in the above table.
The eye nut must be of fully screwd in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the nut.
