LGRIG®-stainless-steel-butterfly-wing-nut
LGRIG®-stainless-steel-butterfly-wing-nut

LGRIG® Stainless Steel Wing Nut DIN315

LGRIG® Stainless Steel Wing Nut DIN315, also known as Butterfly Nut, or Butterfly Wing Nut.

LGRIG® butterfly nut is one of the most useful fastener products, featuring wing-like projections that provide leverage for turning with thumb and forefinger. Wing nut works like most other nuts, designed to hold two or more objects together when used in conjunction with a bolt. Butterfly wing nut can be twisted onto the end of a bolt to prevent connected objects from pulling away, offering the major benefit of easy installation and removal.

Butterfly nuts are used when a part is often assembled and disassembled manually, requiring no more than finger pressure, and may be used with or without a washer. Wing nuts are popular for applications where convenience is vital, such as on boats and bicycles, thanks to their ease of use.

The butterfly nut features two large metal wings, one on each side, allowing it to be tightened or loosened easily by hand without tools, making it ideal for settings where fasteners need to be opened and fastened repeatedly with comfort. Butterfly Nuts are classified by method of manufacturing and style, precisely engineered to offer a reliable and strong fastening solution with thread diameters of M10, M12, and M16, suited for a wide range of applications requiring quick assembly or disassembly.

Made from high-quality zinc-plated steel, these nuts boast exceptional corrosion resistance for both indoor and outdoor use. Our butterfly nuts are designed for hand tightening, eliminating the need for tools and facilitating convenient adjustments on the fly, with the wing design providing ample leverage for a secure fit and straightforward removal.

These butterfly nuts are particularly useful in tight spaces or close to walls, making them popular in automotive, construction, machinery, and DIY sectors. The zinc coating not only increases durability by preventing rust but also gives a sleek, professional look, contributing to an extended lifespan in damp and corrosive environments.


Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Footrope Gear
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
LGRIG® Stainless Steel Wing Nut DIN315
LGRIG® Stainless Steel Lifting Eye Bolt DIN 580
LGRIG® Lifting Eye Nut DIN 582 Stainless Steel
LGRIG® Lifting Eye Bolt DIN 580 UNC Thread Stainless Steel
LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel
LGRIG® Stainless Steel Eye Bolt JIS B 1168
LGRIG® Stainless Steel Lifting Eye Nut JIS 1169
LGRIG® Stainless Steel Lifting Eye Nut JIS 1169 UNC
LGRIG® Stainless Steel Long Shank Eye Bolt with Nut and Washer
LGRIG® Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer
LGRIG® Stainless Steel Forged Shoulder Nut Eye Bolts G-277
LGRIG® Stainless Steel Regular Nut Eye Bolts G-291
LGRIG® Stainless Steel Shoulder Type Machinery Eye Bolt G-279 US Type
LGRIG® Stainless Steel Lag eye bolt
LGRIG® Stainless Steel Lag Eye Screw
LGRIG® Stainless Steel Eye Bolt Unwelded
LGRIG® Stainless Steel Swing Eye Bolt UNC Thread
LGRIG® Stainless Steel Ring Eye Bolt
LGRIG® Stainless Steel Welded Eye Bolt with Nut & Washer
LGRIG® DIN444 Eye Swing Bolts Stainless Steel
LGRIG® Stainless Steel Long Shank Shoulder Eye Bolt with Nut and Washer
LGRIG® Stainless Steel DIN 580 Eye Bolt with Plate
LGRIG® Stainless Steel DIN1168 Eye Bolt with Plate
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless Chains
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Stainless Steel Wing Nut DIN315

Brand

LGRIG®

Standard

DIN315

Material

Type 304 or 316 Stainless Steel

Type

Butterfly/Wing Nut

Processing

Precision Cast

Finish

Highly Polishing

Size

M10, M12, M16

Note

Never to be used for overhead lifting

Country of Origin

China

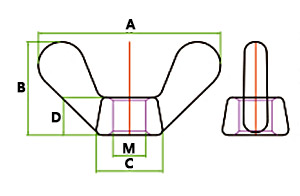

Specification of LGRIG® Stainless Steel Wing Nut DIN315


Part No.

SIZE

A

B

C

D

M

WT(KG)

LGSSBWN10

M10

48.0

24.5

17.5

10.0

M10

0.028

LGSSBWN12

M12

58.0

29.5

21.0

12.0

M12

0.048

LGSSBWN16

M16

67.0

34.4

25.0

14.0

M16

0.073


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Eye Bolts & Nuts

LGRIG® Stainless Steel Lifting Eye Nut JIS 1169 UNC
LGRIG® Stainless Steel Lifting Eye Nut JIS 1169 UNC
LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel
LGRIG® Lifting Eye Nut DIN 582 UNC Thread Stainless Steel
LGRIG® Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer
LGRIG® Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer
LGRIG® Stainless Steel Regular Nut Eye Bolts G-291
LGRIG® Stainless Steel Regular Nut Eye Bolts G-291
LGRIG® Stainless Steel DIN 580 Eye Bolt with Plate
LGRIG® Stainless Steel DIN 580 Eye Bolt with Plate
LGRIG® Stainless Steel DIN1168 Eye Bolt with Plate
LGRIG® Stainless Steel DIN1168 Eye Bolt with Plate
LGRIG® Stainless Steel Eye Bolt JIS B 1168
LGRIG® Stainless Steel Eye Bolt JIS B 1168
LGRIG® Stainless Steel Ring Eye Bolt
LGRIG® Stainless Steel Ring Eye Bolt
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
