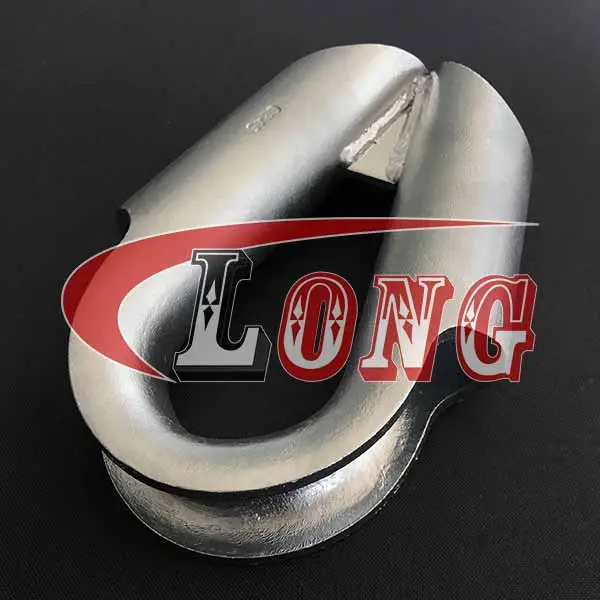

wire rope thimbles with gusset galvanized
wire rope thimbles with gusset galvanized

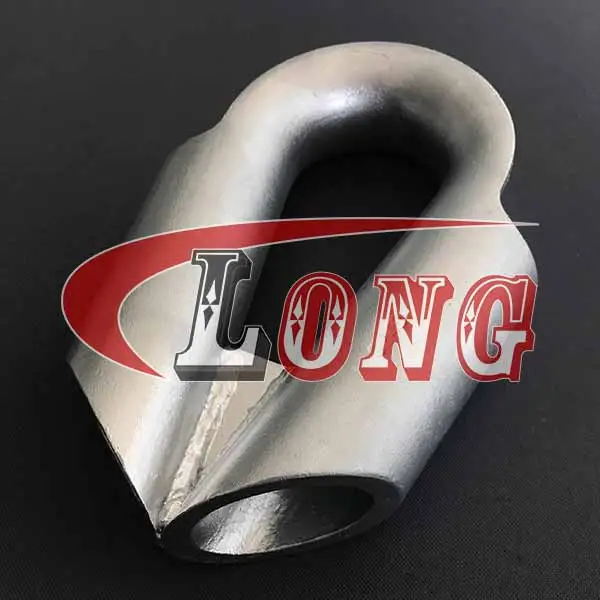

tubular thimbles with gusset galvanized
tubular thimbles with gusset galvanized

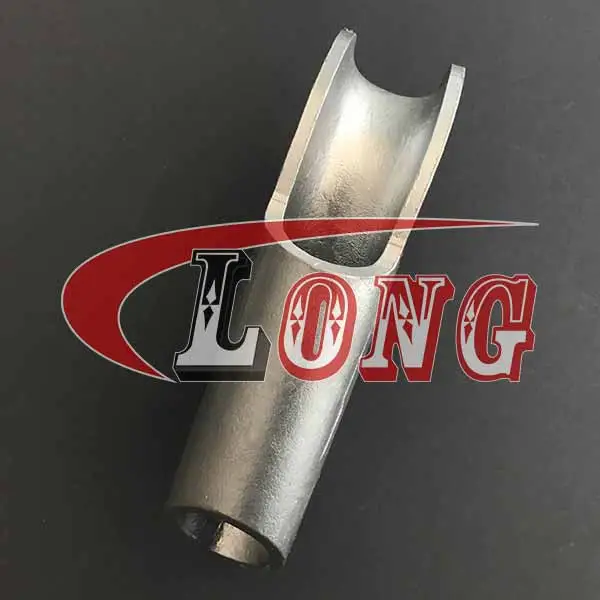

tube thimbles with gusset galvanized
tube thimbles with gusset galvanized
wire rope tube thimbles with gusset galvanized
wire rope tube thimbles with gusset galvanized

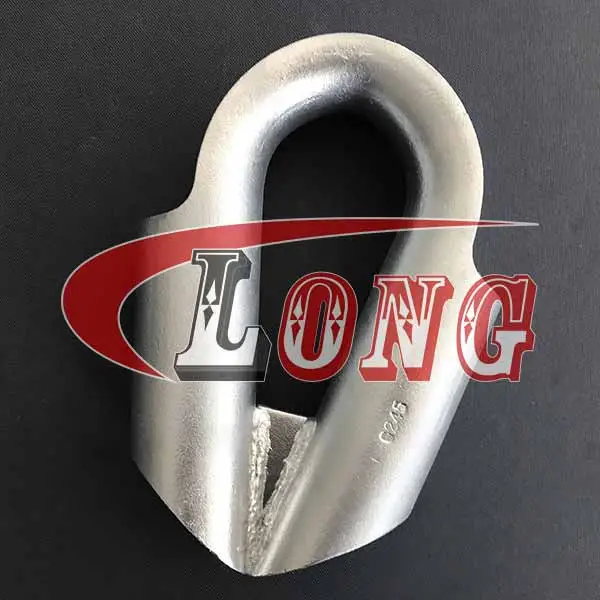

wire thimbles with gusset tubular thimble galvanized
wire thimbles with gusset tubular thimble galvanized
wire rope thimbles with gusset galvanized
tubular thimbles with gusset galvanized
tube thimbles with gusset galvanized
wire rope tube thimbles with gusset galvanized
wire thimbles with gusset tubular thimble galvanized

Tube Thimble with Gusset Galvanized STG Type -LG RIGGING®

Wire Rope Thimble Galvanized STG Type is easy to install, it well keep the rope line into the tube groove, avoid the line fall off from thimble. make safer on working. Such as Synthetic winch line is expensive to replace, so it is important to protect the line and make it last as long as possible.

Our this Tube Thimble with Gusset-China LG™ is made from superior mild steel, after machining and stamping.

This galvanized tubular thimble will protect your line and keep it from twisting and fraying at the ends.

Our range of tubular thimble with gusset is available in standard as well as customized sizes.

Trawling Gear
Shackles
Boat Fittings

Information of Wire Rope Thimble Galvanized STG Type-China LG™

Material

Super Carbon Steel

Processing

Machining / Stamping

Finish

Zinc Plated, Hot Dip Galvanized, Powder Coated

Size-Wire

12-10mm, 15-12mm, 17-14mm, 19-16mm, 22-18mm, 25-22mm, 28-24mm, 30-26mm, 35-32mm, 45-38mm, 50-44mm

Tips

Supplied in open finish or with welded gusset plate


Specifications of Wire Rope Thimble Galvanized STG Type-China LG™

Specifications of Wire Rope Thimble Galvanized STG Type-China LG™


Part No.

A


(mm)

B


(mm)

C


(mm)

D


(mm)

E


(mm)

F


(mm)

Weight


(kg)

Rope


Diameter

LGTTbG212K

12

95

23

4

8

48

0.25

10

LGTTbG215K

15

109

27

5

10

49

0.42

12

LGTTbG217K

17

115

27

5

10

49

0.5

14

LGTTbG219K

19

125

32

5

12

43

0.6

16

LGTTbG222K

22

140

35

5

15

50

0.75

18

LGTTbG225K

25

158

45

6.3

16

59

1.4

22

LGTTbG228K

28

176

45

7

16

61

1.54

24

LGTTbG230K

30

195

47

7

18

78

1.82

26

LGTTbG235K

35

210

60

7

22

93

2.4

32

LGTTbG245K

45

253

70

7

27

94

3.3

38

LGTTbG250K

50

280

75

7

28

96

4.06

44


We can make any sizes tube thimbles based on Customers’s Drawing, or just tell us your detail size requirement, we will make a drawing for your order.
