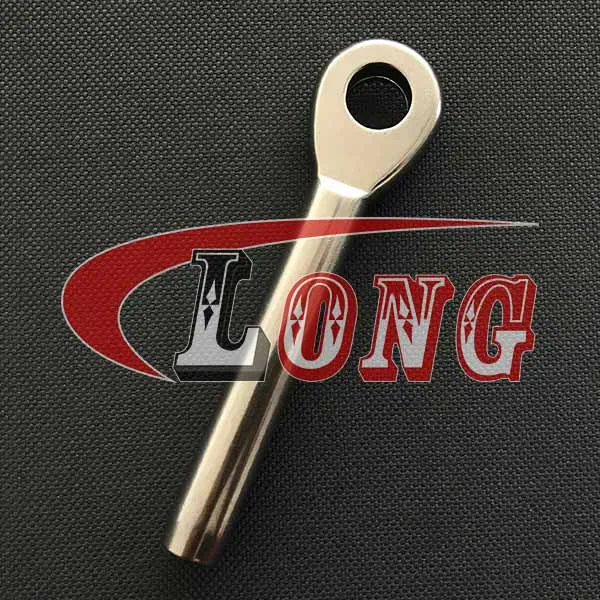

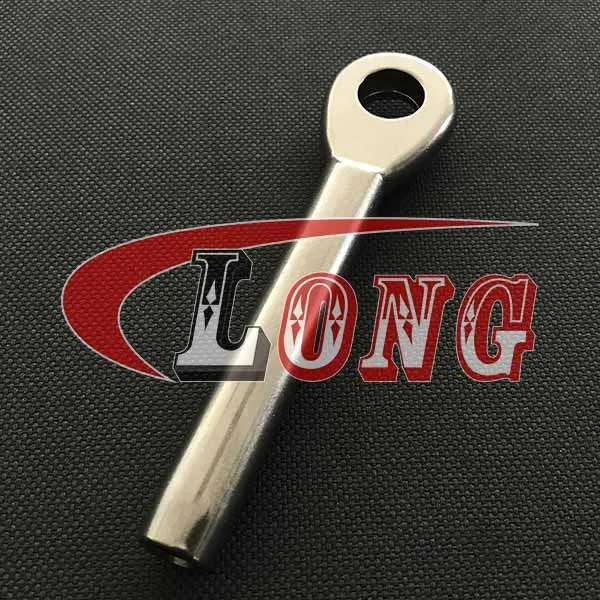

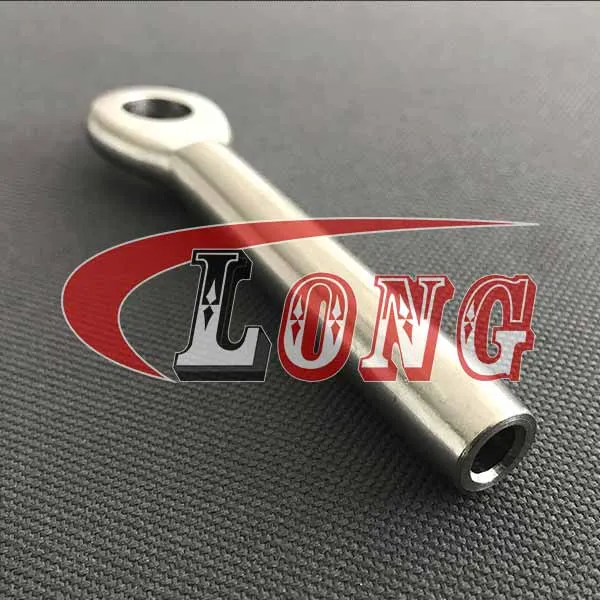

Stainless Steel Swage Eye Terminal

Stainless Swage Eye Terminals also known as stainless steel swage socket and wire rope swage eye terminal.

This stainless steel swage eye terminal is made of 316 marine grade stainless steel,durable and rust resistant.

Stainless steel wire rope swage eye terminal is designed to attach to stainless steel wire rope and a range of stainless steel fixtures and fittings.

These wire rope fittings need to be Hydraulically Crimped or Swaged onto the Steel Wire Rope.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless Steel Swage Jaw Terminal
Stainless Steel Swage Eye Terminal
Stainless Steel Swage Stud Terminal
Stainless Steel Dome Head Terminal
Stainless Steel Swage Toggle Terminal
Stainless Steel Swage Deck Toggle Terminal for Cable Railing
Stainless Steel Swage Toggle Terminal U.S. Type (thin-wall)-LG RIGGING®
Stainless Steel Swage Machined Fork Terminal-LG RIGGING®
Swageless Fittings Machined Fork Terminal Stainless Steel-China
Swageless Eye Terminal Stainless Steel Cable Railing Hardware-China
Swageless Deck Toggle-LG RIGGING®
Swageless Thread Stud Terminal Stainless Steel-LG RIGGING®
Swageless Lag Screw Terminal Stainless Steel-LG RIGGING®
Swageless Cable Fittings-Toggle Terminal-LG RIGGING®
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Stainless Steel Swage Eye Terminal

Technical Notes

European Type

Processing

Stamping / Machining

Finish

Highly Polishing

Size

2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm

10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm


Specifications of Stainless Steel Swage Eye Terminal

Specifications of Stainless Steel Swage Eye Terminal


Part No.

Wire


(mm)

A


(mm)

B


(mm)

D


(mm)

D1


(mm)

D2


(mm)

L1


(mm)

L


(mm)

KG/100

B.L.


(KG)

LG-SS-SEter-02

2

3

13

5.4

2.2

5.5

30

48.5

0.9

800

LG-SS-SEter-25

2.5

3

13

5.4

2.7

5.5

30

48.5

0.9

800

LG-SS-SEter-03

3

4

14

6.5

3.3

6.35

36

55

1.5

1300

LG-SS-SEter-04

4

6

18

8.5

4.3

7.5

39

65

2.5

2350

LG-SS-SEter-05

5

7

22

10

5.3

9

50

80

4.5

3500

LG-SS-SEter-06

6

8

28

12.5

6.4

12.6

62

94

9.5

5600

LG-SS-SEter-07

7

9

28

12.5

7.4

14.2

68

105

12.5

6200

LG-SS-SEter-08

8

10

32

14.5

8.4

16

85

124

18.2

7600

LG-SS-SEter-10

10

12

36

16.4

10.5

18

90

142

25.2

9800

LG-SS-SEter-12

12

16

40

19.3

12.6

20

105

160

42.5

13000

LG-SS-SEter-14

14

18

47

23

14.7

25

140

206

75.5

17000

LG-SS-SEter-16

16

20

53

26

16.9

28

160

232

102

24000

LG-SS-SEter-19

19

25

65

28.5

20

34.5

200

302

209

27000

LG-SS-SEter-22

22

30

70

33

23.2

40.5

230

348

314

31000

LG-SS-SEter-26

26

30

77

36

27.5

46

280

400

425

43000


Bulk Photos of Stainless Steel Swage Eye Terminal

bulk photos of stainless steel swage eye terminal
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Terminals

Stainless Steel Swage Machined Fork Terminal-LG RIGGING®
Stainless Steel Swage Machined Fork Terminal-LG RIGGING®
Swageless Lag Screw Terminal Stainless Steel-LG RIGGING®
Swageless Lag Screw Terminal Stainless Steel-LG RIGGING®
Swageless Deck Toggle-LG RIGGING®
Swageless Deck Toggle-LG RIGGING®
Stainless Steel Swage Toggle Terminal
Stainless Steel Swage Toggle Terminal
Stainless Steel Swage Stud Terminal
Stainless Steel Swage Stud Terminal
Swageless Fittings Machined Fork Terminal Stainless Steel-China
Swageless Fittings Machined Fork Terminal Stainless Steel-China
Swageless Cable Fittings-Toggle Terminal-LG RIGGING®
Swageless Cable Fittings-Toggle Terminal-LG RIGGING®
Stainless Steel Swage Toggle Terminal U.S. Type (thin-wall)-LG RIGGING®
Stainless Steel Swage Toggle Terminal U.S. Type (thin-wall)-LG RIGGING®
China LG RIGGING's Updates
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study
18
Apr
2024
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study Learn More
How to Properly Use a Rope Thimble: a Step-by-Step Guide
11
Apr
2024
How to Properly Use a Rope Thimble: a Step-by-Step Guide Learn More
The Role of Wire Thimble Types in Stage Rigging
04
Apr
2024
The Role of Wire Thimble Types in Stage Rigging Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
