Bow Shackle Stainless Steel Screw Pin European Type

Bow Shackle Stainless Steel Screw Pin European Type, also known as Stainless Steel Commercial Bow Shackle.


Stainless steel bow shackle, great for marine or high humidity applications. Easily connects for temporary or permanent applications.


These stainless steel shackles wholesale, made from stainless steel 304 or 316, has great rust resistance, suitable for marine applications.


Our stainless steel commercial bow shackle selection ranges in size from 4mm to 36mm.

Trawling Gear
Shackles
Boat Fittings

Information of Bow Shackle Stainless Steel Screw Pin European Type

Technical Notes

Stainless steel bow shackle conform to European Type

Material

Stainless steel 304 or 316 bow shackle

Processing

Forged / Stamping

Finish

Highly Polishing / Electrophoretic coating

Size

4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm

18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm screw pin bow shackle

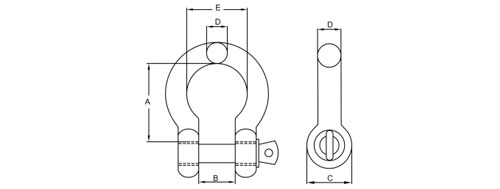

Specifications of Bow Shackle Stainless Steel Screw Pin European Type

Specifications of Bow Shackle Stainless Steel Screw Pin European Type


Part No.

SIZE

A

B

C

D

E

MBL

mm

KN

LG-SS-BS-EU-04

4

16

8

8

4

14

5.8

LG-SS-BS-EU-05

5

19

10

10

5

16

9.1

LG-SS-BS-EU-06

6

25

12

12

6

20

13.2

LG-SS-BS-EU-08

8

32

16

16

8

24

23.7

LG-SS-BS-EU-10

10

38

20

20

10

28

37.3

LG-SS-BS-EU-12

12

48

24

24

12

36

54.9

LG-SS-BS-EU-14

14

50

28

28

14

38

74.8

LG-SS-BS-EU-16

16

55

32

32

16

10

97.7

LG-SS-BS-EU-18

18

62

36

36

18

43

136.1

LG-SS-BS-EU-20

20

68

40

40

20

46

184.7

LG-SS-BS-EU-22

22

82

44

44

22

56

223.8

LG-SS-BS-EU-25

25

95

50

50

25

68

LG-SS-BS-EU-28

28

108

56

56

28

74

LG-SS-BS-EU-32

32

120

64

64

32

84

LG-SS-BS-EU-36

36

135

72

72

36

92

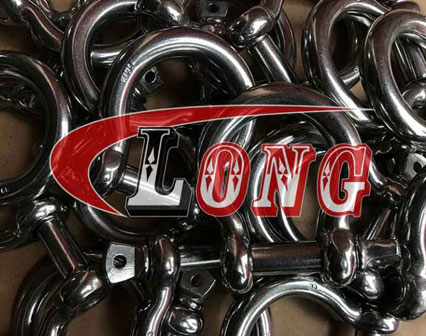

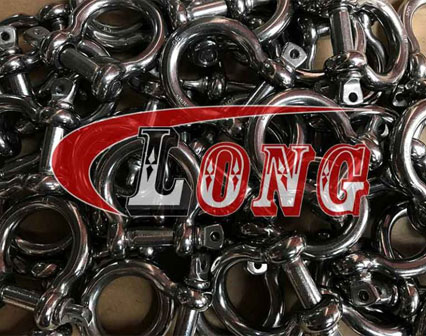

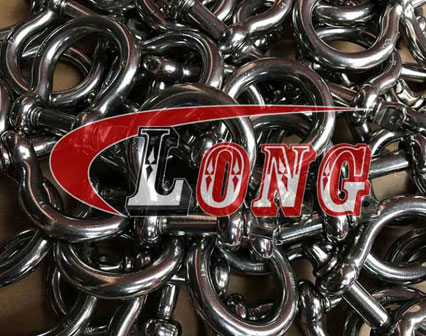

Bulk Photos of Bow Shackle Stainless Steel Screw Pin European Type

bulk photos of bow shackle stainless steel screw pin european type
bulk photos of bow shackle stainless steel screw pin european type 2
bulk photos of bow shackle stainless steel screw pin european type 3
bulk photos of bow shackle stainless steel screw pin european type 4
