Stainless Steel Swage Stud Terminal

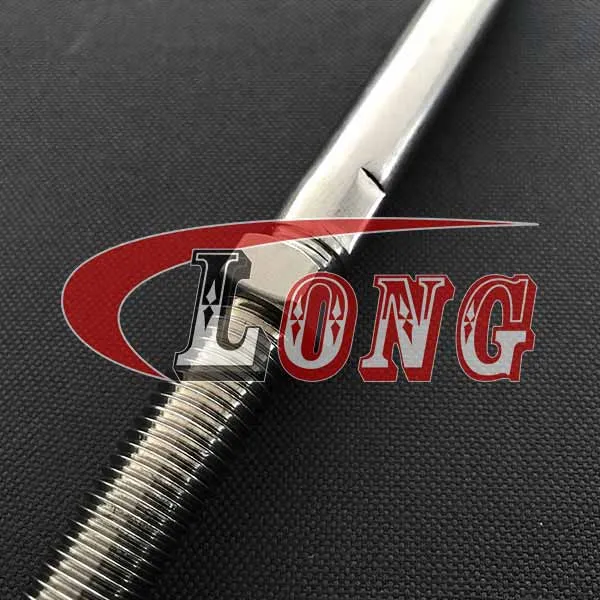

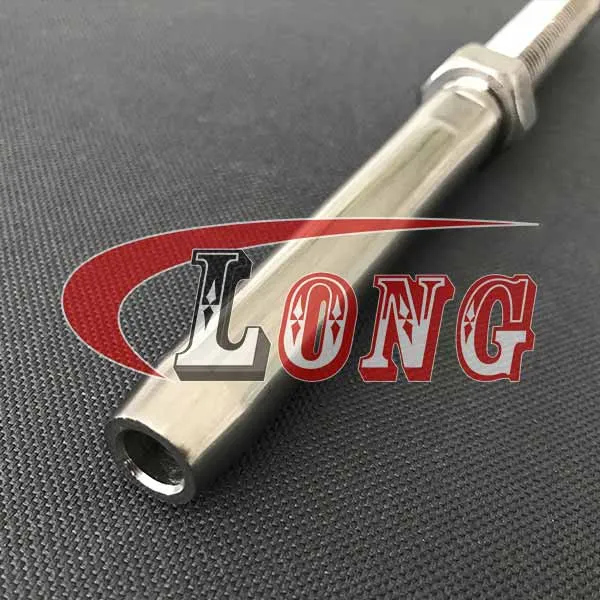

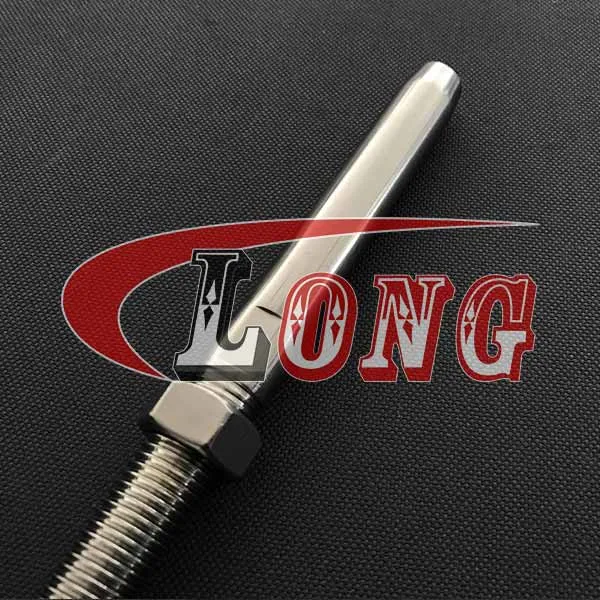

Stainless Steel Swage Stud Terminal, also called wire rope swage stud thread terminal and swage bolt.

This swage stud terminal has nut, provide tensioning for your cables.

The swage stud Terminal with nut is the most traditional way of installing a cable railing and are paired with a second Terminal, a Deck Toggle or a Swage.

Wire rope swage stud terminal can be used in any type of end post: wood posts, aluminum or steel and are good for indoor or outdoor applications.

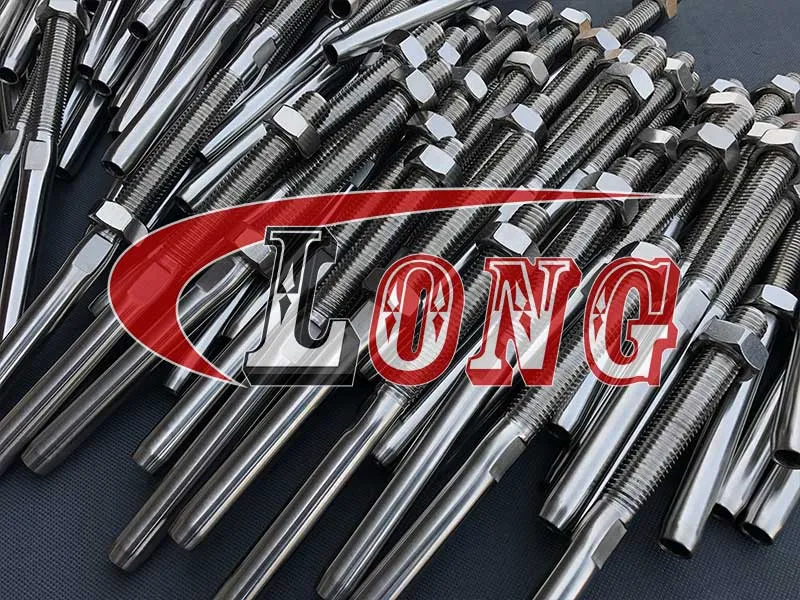

Swage bolt is made of 316 grade stainless steel and include a Stainless Hex Nut.

Trawling Gear
Shackles
Boat Fittings

Information of Stainless Steel Swage Stud Terminal

Technical Notes

European Type

Processing

Stamping / machining

Finish

Highly Polishing

Size

M4-2mm, M5-2mm, M5-2.5mm, M5-3.2mm, M6-3mm, M6-3.2mm, M6-4mm, M8-4mm

M8-5mm, M10-5mm, M10-6mm, M12-6mm, M12-8mm, M14-7mm, M16-8mm, M16-10mm

M20-10mm, M20-12mm, M22-14mm, M24-16mm, M27-19mm, M30-22mm, M36-26mm

Tips

These Fittings need to be Hydraulically Crimped or Swaged onto the Steel Wire Rope


Specifications of Stainless Steel Swage Stud Terminal

Specifications of Stainless Steel Swage Stud Terminal


Part No.

Size


(mm)

Wire


(mm)

D


(mm)

D1


(mm)

L3


(mm)

L2


(mm)

L1


(mm)

NV


(mm)

KG/100

B.L.


(KG).

HT-LG-SSter-0402

M4

2

2.2

4.8

24

38

73

3

0.6

50

HT-LG-SSter-0502

M5

2

2.2

5.5

32

40

86

4

1.3

800

HT-LG-SSter-0525

M5

2.5

2.7

5.5

32

40

86

4

1.3

800

HT-LG-SSter-0532

M5

3.2

3.5

6.35

38

40

90

5

1.6

800

HT-LG-SSter-0603

M6

3

3.3

6.35

39

48

100

5

2

1250

HT-LG-SSter-0632

M6

3.2

3.5

6.35

39

48

100

5

2

1250

HT-LG-SSter-0604

M6

4

4.3

7.5

45

48

110

6

2.5

1250

HT-LG-SSter-0804

M8

4

4.3

7.5

45

57

117

6

3.8

2350

HT-LG-SSter-0805

M8

5

5.3

9

52

57

124

7

4.6

2350

HT-LG-SSter-1005

M10

5

5.3

9

52

63

130

7

6.5

3500

HT-LG-SSter-1006

M10

6

6.4

12.6

64

63

145

10

10.3

3500

HT-LG-SSter-1206

M12

6

6.4

12.6

64

80

162

10

13.5

5100

HT-LG-SSter-1208

M12

8

8.4

16

80

80

180

14

19

5100

HT-LG-SSter-1407

M14

7

7.4

14.2

70

90

180

12

20

5900

HT-LG-SSter-1608

M16

8

8.4

16

80

100

200

14

28

8000

HT-LG-SSter-1610

M16

10

10.5

18

90

100

210

15

32

8000

HT-LG-SSter-2010

M20

10

10.5

18

90

119

230

15

46

13000

HT-LG-SSter-2012

M20

12

12.6

20

105

120

245

17

51

13000

HT-LG-SSter-2214

M22

14

14.7

25

140

140

308

23

87

17000

HT-LG-SSter-2416

M24

16

16.9

28

160

170

363

25

125

23000

HT-LG-SSter-2719

M27

19

20

34.5

200

180

425

30

209

25500

HT-LG-SSter-3022

M30

22

23.2

40.5

230

200

480

36

314

31000

HT-LG-SSter-3626

M36

26

27.5

46

280

220

550

41

470

43000


Bulk Photos of Stainless Steel Swage Stud Terminal

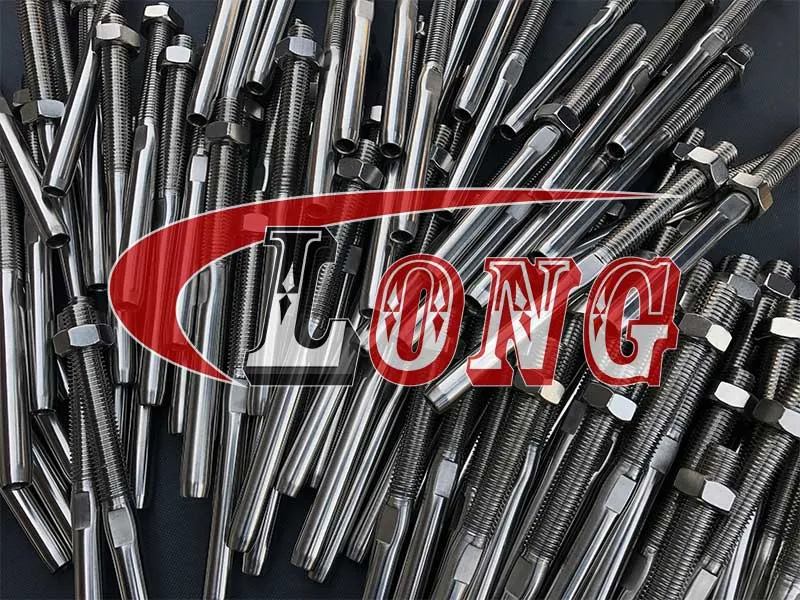

bulk photos of stainless steel swage stud terminal

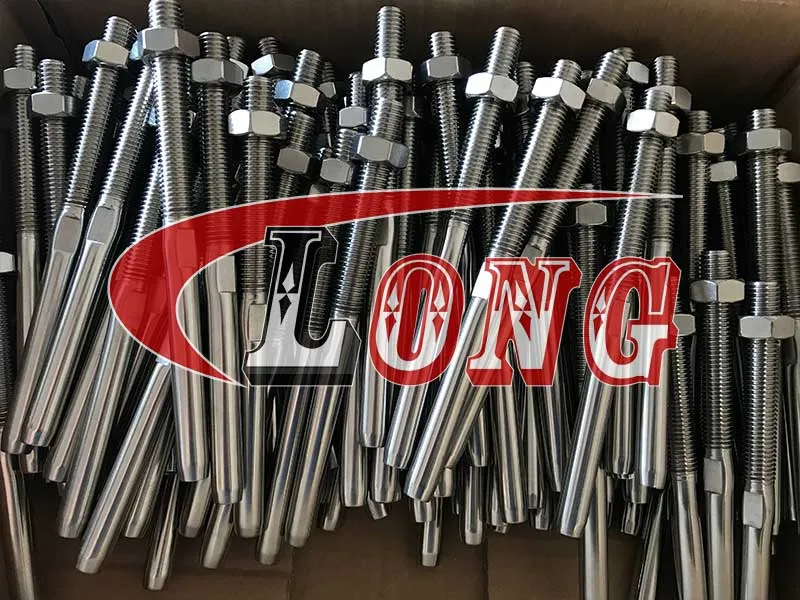

bulk photos of stainless steel swage stud terminal 2
