LGRIG®-tug-cylindrical-fender-ty-type
LGRIG®-tug-cylindrical-fender-ty-type

LGRIG® Tug Cylindrical Fender TY Type

LGRIG® Tug Cylindrical Fender TY Type, also known as Cylindrical tug fender.

LGRIG® Tug Cylindrical Fender TY Type is often used as the primary pushing fender on the bow or stern of tugs, but is equally effective for pushing flat-sided vessels. Cylindrical tug fender can be fixed to the hull by chains or straps for easy installation, with tapered ends also available.

Large cylindrical fenders are often used as the primary pushing fenders on the bow or stern of modern tugs, with a round shape ideal for working with large bow flares like those on container ships, while also being suitable for flat-sided vessels.

Tug cylindrical fenders come in diameters up to 1000 mm and in very long continuous or spigot-joined lengths, with a longitudinal chain running down the center supplemented by circumferential straps or chains recessed into grooves.

These cylindrical tug fenders feature a heavy-duty design with a soft, flexible face, grooved for extra grip, low weight per square meter, and the ability to fit around tight bends, making them suitable for all types of tugs, pontoon protection, special corner fenders, ocean-going tugs, and pontoon yokes.

LGRIG® Tug Cylindrical Fender TY Type is versatile and robust, providing excellent energy absorption and resistance to wear, ideal for various marine applications ensuring safe berthing and docking operations.

Cylindrical tug fender offers robust protection for docks and vessels, ensuring superior energy absorption and durability in harsh marine environments, with a simple design allowing for easy installation and maintenance.

Tug cylindrical fenders are built for long-lasting performance in tough marine conditions, used worldwide for decades of durable hull protection, with mandrel-built construction and optional tapered ends and grooved profiles that suit webbing straps or sleeved chains.

Different from cylindrical CYL-type, the cylindrical tug fender is often found on the bow and stern of tug boats, and its semi-flexible body enables a well-fitted installation, making it one of the most popular options for boat fenders.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Square Fenders
Rubber to Metal Bonded-Customized Products
Rubber Molded Dock Fenders
Arch Fenders-China LG Supply
D Fenders-China LG Supply
Vehicle Wheel Chocks
Laminated Wheel Chocks
Molded Dock Bumpers
Rubber Laminated Dock Bumpers
LGRIG® Super Cell Rubber Fenders SCA Type
LGRIG® Super Cone Fenders SCB Type
LGRIG® Arch Fenders DA Type
LGRIG® Arch Fenders DAF Type
LGRIG® Rubber Ladder Fender Arch Type
LGRIG® Corner Arch Fenders
LGRIG® Cylindrical Fender CYL Type
LGRIG® Tug Cylindrical Fender TY Type
LGRIG® W Fenders
LGRIG® M Fender
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Footrope Gear
Trawl Door
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless Chains
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

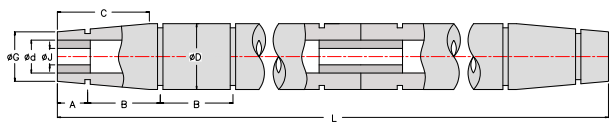

Specification of LGRIG® Tug Cylindrical Fender TY Type


Part No.

φD

Φd

Amax

Bmax

C

φG

ΦJ

Weight/kg

LGCFTY250

250

125

200

570

500

190

75

48

LGCFTY300

300

150

225

600

700

225

75

69

LGCFTY350

350

175

250

650

800

250

85

94

LGCFTY400

400

200

300

670

800

300

100

123

LGCFTY450

450

225

300

700

850

350

100

155

LGCFTY500

500

250

300

730

900

375

100

191

LGCFTY600

600

300

350

800

900

450

125

276

LGCFTY800

800

400

350

930

1000

600

125

490

LGCFTY900

900

450

350

1000

1100

675

150

620

LGCFTY1000

1000

500

350

1060

1200

750

150

766

Smaller fenders(≤500mm diameter)are usually fixed by a longitudinal chain through the bore of the fender,connected to the hull by turnbuckles to tension the chain.

Larger fenders often use supplementary chains or straps around the fender.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Fenders & Buoys

Rubber to Metal Bonded-Customized Products
Rubber to Metal Bonded-Customized Products
LGRIG® Cylindrical Fender CYL Type
LGRIG® Cylindrical Fender CYL Type
Rubber Molded Dock Fenders
Rubber Molded Dock Fenders
LGRIG® Super Cone Fenders SCB Type
LGRIG® Super Cone Fenders SCB Type
LGRIG® Arch Fenders DAF Type
LGRIG® Arch Fenders DAF Type
LGRIG® Rubber Ladder Fender Arch Type
LGRIG® Rubber Ladder Fender Arch Type
Laminated Wheel Chocks
Laminated Wheel Chocks
Vehicle Wheel Chocks
Vehicle Wheel Chocks
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
