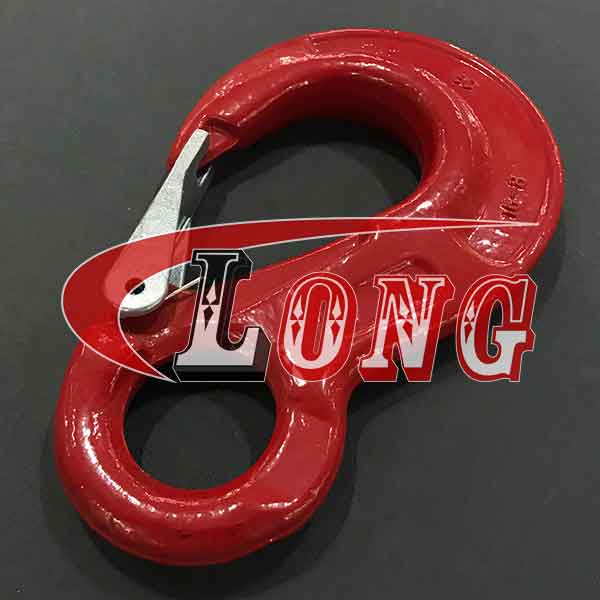

Information of G80 Eye Sling Hook with Latch – China LG Supply

Technical Notes	European Type
Material	Superior Alloy Steel.
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered. Latch : Forged / Casted / Stamped
Finish	Body: Powder coated Latch : Hot dip galvanized / Galvanized / Dacroment / Stainless steel
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 20mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 80 Attachments For Overhead Lifting

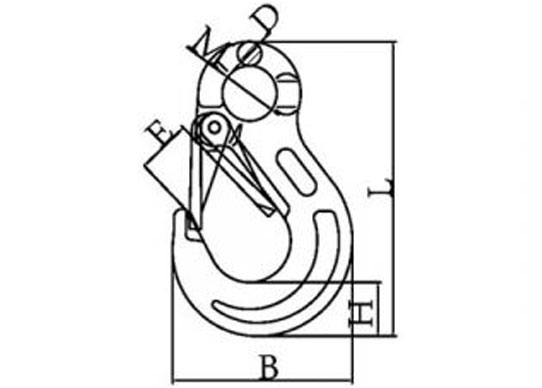

Specifications ofG80 Eye Sling Hook with Latch – China LG Supply

Part No.	WEIGHT/kg	Working Load Limit (T)	Breaking Load (T)	M±l	D±1	E±1	H±l	B±2	L±2
8-LG-ESH-S+L-06	0.3	1.12	4.48	20.5	9	18.5	20	68	109
8-LG-ESH-S+L-7/8	0.55	2	8	25	11	22	27	84	133.5
8-LG-ESH-S+L-10	1.05	3.15	12.6	34	14	28	33	102.5	167.5
8-LG-ESH-S+L-13	1.75	5.3	21.2	42.5	17.5	35	40	128.5	207.5
8-LG-ESH-S+L-16	3.2	8	32	52	22	43	48	156.5	253
8-LG-ESH-S+L-20	5.3	12.5	50	62	26	51.5	56	187	300
