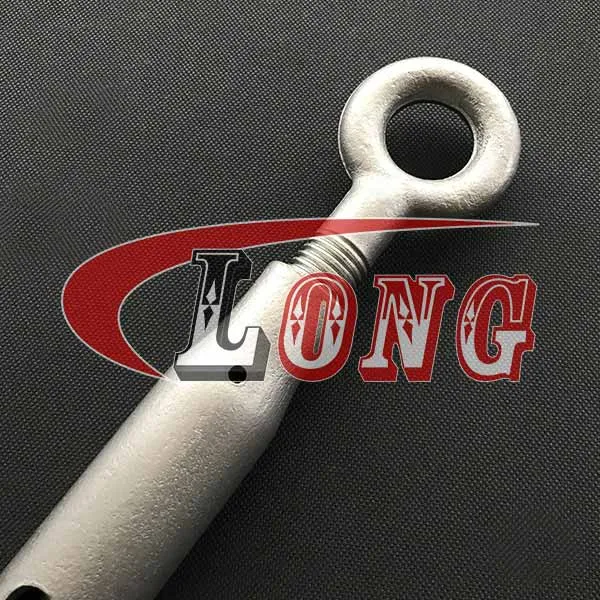

DIN 1478 Turnbuckle Eye/Eye

DIN 1478 Turnbuckle aka Pipe Body Turnbuckle or rigging screw, conforms to DIN1478.

DIN 1478 closed body turnbuckle is great for architecture or marine rigging. Sight holes are provided in the bodies to verify adequate thread engagement.

The DIN 1478 rigging screw is manufactured using superior grade raw material as per international qualitative standards.

Our range of turnbuckle DIN 1478 is available in standard as well as customized sizes.

Trawling Gear
Shackles
Boat Fittings

Information of DIN 1478 Turnbuckle Eye/Eye

Technical Notes

Turnbuckle To DIN1478

Material

Turnbuckle Body: Cold-drawn Seamless Steel Tube ( C1020 )

DIN 1478 Turnbuckle Eye End: S235JR / C1020

Finish

Zinc plated, Hot dipped galvanized

Size

M6,  M8,  M10,  M12,  M16,  M20,  M22,  M24,  M30,  M36,  M48 DIN1478 Closed Body Turnbuckle

Important Notes

Not for Lifting.Only suitable for use in tension.


Tips

Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end.

Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

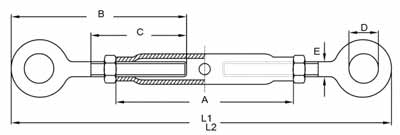

Specifications of DIN 1478 Turnbuckle Eye/Eye

Specifications of DIN 1478 Turnbuckle Eye


Part No.

Size

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

L1(mm)

L2(mm)

S.W.L.

U.W.

kgs

kgs

LG1478-EE06

M6

110

74

50

10

4

150

240

225

0.16

LG1478-EE08

M8

110

80

52

11

5

156

245

410

0.18

LG1478-EE10

M10

125

97

60

14

6.5

186

290

650

0.29

LG1478-EE12

M12

125

106

67

17

8

196

301

930

0.45

LG1478-EE16

M16

170

160

97

23

13

294

435

1170

1.36

LG1478-EE20

M20

200

190

116

25

14

352

520

2700

2.60

LG1478-EE24

M24

255

210

125

34

17

391

600

3920

3.75

LG1478-EE30

M30

255

240

150

38

19.5

441

648

6250

6.35

LG1478-EE36

M36

295

276

160

48

27

498

730

9100

10.5

LG1478-EE48

M48

355

322

180

55

40

564

840

16500

16.18
