Stainless Steel Wire Rope Clip SS-450 US Type

Stainless Steel Wire Rope Clip SS-450, also known as Wire Rope Clamp or Wire Rope Grip, conforms to U.S. FF-C-450D, Type 1, Class 1.

This stainless steel SS450 wire rope clamp, made from Stainless Steel to resist corrosive and rusting action.

SS-450 wire rope clip stainless steel, used to clamp the ends of wire rope or cable, easy to attach, remove and reuse.

Trawling Gear
Shackles
Boat Fittings

Information of Stainless Steel Wire Rope Clip SS-450 US Type

Material

Stainless steel 304 or 316

Processing

Cast

Finish

Highly Polished

Size

1/8”, 3/16″, 1/4”,5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8″, 3/4”, 7/8”, 1″, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, 2”, 2-1/4”, 2-1/2″, 2-3/4″, 3″

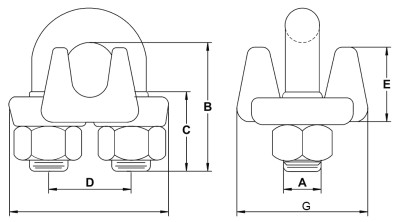

Specifications of Stainless Steel Wire Rope Clip SS-450 US Type

Specifications of Stainless Steel Wire Rope Clip SS-450 US Type


Part No.

SIZE

DEMENSION

A

B

C

D

E

G

H

LGSS450C01

1/8”

3/16′

18

11

12

10

20

23

LGSS450C02

3/16″

1/4”

24

14

15

12

23

29

LGSS450C03

1/4”

5/16”

26

15

19

16

29

36

LGSS450C04

5/16”

3/8”

35

19

22

18

33

43

LGSS450C05

3/8”

7/16”

38

19

25

23

41

49

LGSS450C06

7/16”

1/2”

47

25

30

26

46

58

LGSS450C07

1/2”

1/2”

47

25

30

28

48

58

LGSS450C08

9/16”

9/16”

57

32

33

31

52

63

LGSS450C09

5/8″

9/16”

60

32

33

34

52

63

LGSS450C10

3/4”

5/8′

70

36

38

35

57

72

LGSS450C11

7/8”

3/4”

79

41

44

40

62

80

LGSS450C12

1″

3/4”

89

46

47

45

66

88

LGSS450C13

1-1/8”

3/4”

98

51

51

48

71

91

LGSS450C14

1-1/4”

7/8″

108

54

59

56

80

105

LGSS450C15

1-3/8”

7/8″

118

59

60

59

80

106

LGSS450C16

1-1/2”

7/8″

125

60

66

62

87

113

LGSS450C17

1-5/8”

1″

135

60

70

68

92

121

LGSS450C18

1-3/4”

1-1/8”

149

70

78

73

95

133

LGSS450C19

2”

1-1/4”

165

76

84

86

113

148

LGSS450C20

2-1/4”

1-1/4”

181

84

98

97

114

160

LGSS450C21

2-1/2″

1-1/4”

197

86

105

108

114

164

LGSS450C22

2-3/4″

1-1/4”

211

89

111

127

127

171

LGSS450C23

3″

1-1/2″

233

98

121

133

175

192

*Although strong and durable, wire rope clips are not intended for use in overhead lifting applications.


Please note we supply a huge variety of stainless steel parts.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Request a Free Quote
Upload
or drag files here.

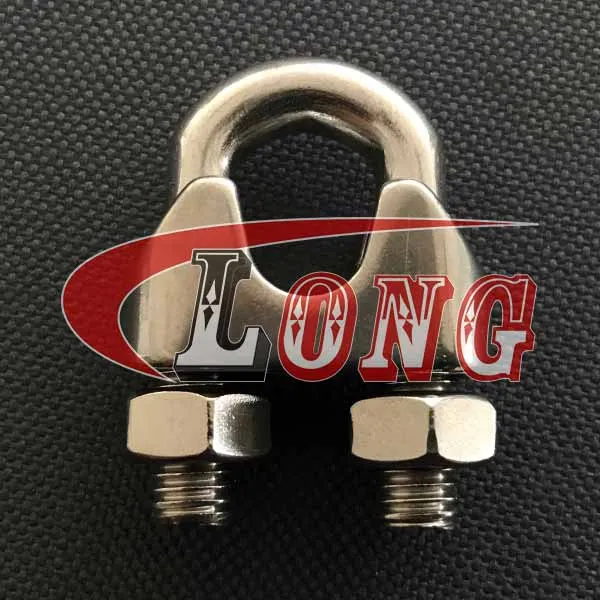

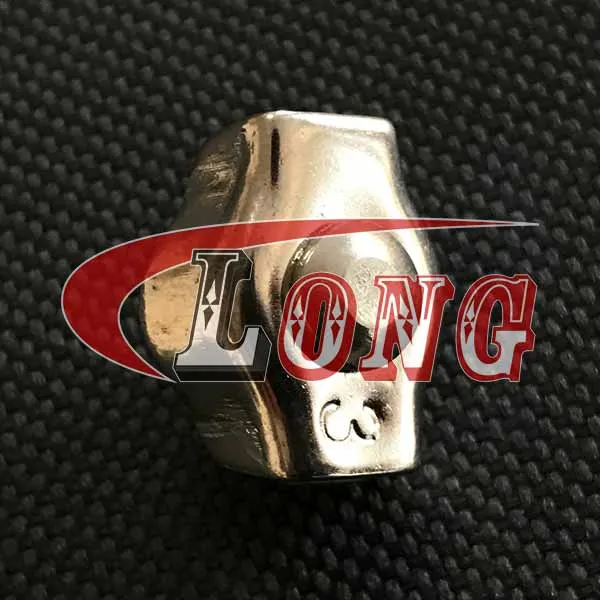

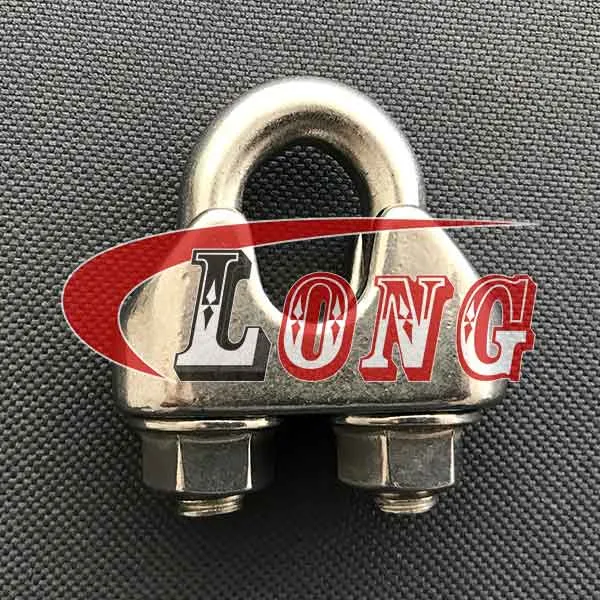

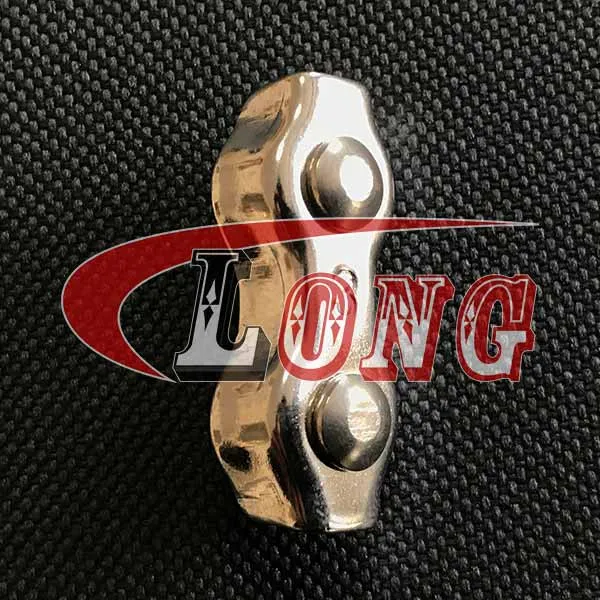

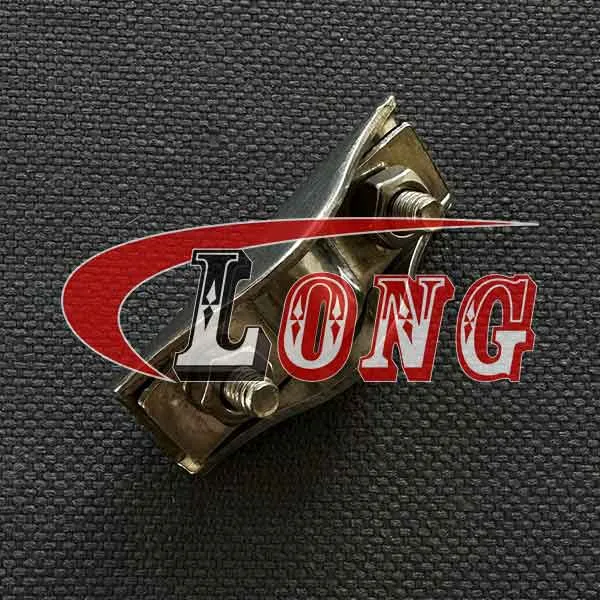

Related Stainless Wire Clips
